cc2500_settings.c File Reference

#include "cc2500_settings.h"
#include "cc2500_rx_spi.h"
#include <BOARD_CONFIG>
#include "mcu_periph/gpio.h"
#include "generated/airframe.h"
#include "modules/core/settings.h"
#include <string.h>

Include dependency graph for cc2500_settings.c:

Go to the source code of this file.

Macros
#define	_LED_GPIO(l)   l ## _GPIO
#define	LED_GPIO(l)   _LED_GPIO(l)
#define	_LED_GPIO_PIN(l)   l ## _GPIO_PIN
#define	LED_GPIO_PIN(l)   _LED_GPIO_PIN(l)
#define	_LED_GPIO_ON(l)   l ## _GPIO_ON
#define	LED_GPIO_ON(l)   _LED_GPIO_ON(l)
#define	_LED_GPIO_OFF(l)   l ## _GPIO_OFF
#define	LED_GPIO_OFF(l)   _LED_GPIO_OFF(l)
#define	_BUTTON_GPIO(b)   b ## _GPIO
#define	BUTTON_GPIO(b)   _BUTTON_GPIO(b)
#define	_BUTTON_PIN(b)   b ## _PIN
#define	BUTTON_PIN(b)   _BUTTON_PIN(b)
#define	CC2500_RX_SPI_PROTOCOL   RX_SPI_FRSKY_X_LBT
#define	CC2500_AUTOBIND   FALSE
#define	CC2500_TELEMETRY_SENSORS   (SENSOR_VOLTAGE | SENSOR_CURRENT | SENSOR_FUEL | SENSOR_ALTITUDE | SENSOR_VARIO)

Functions
static void	cc2500_persistent_write (void)
void	bf_writeEEPROM (void)
const rxConfig_t *	rxConfig (void)
const rxSpiConfig_t *	rxSpiConfig (void)
const rxCc2500SpiConfig_t *	rxCc2500SpiConfig (void)
rxCc2500SpiConfig_t *	rxCc2500SpiConfigMutable (void)
const telemetryConfig_t *	telemetryConfig (void)
bool	telemetryIsSensorEnabled (sensor_e sensor)
static void	cc2500_persistent_read (void)
void	cc2500_settings_init (void)

Variables
static rxConfig_t	rxconfig
static struct gpio_t	extiIo
static struct gpio_t	ledIo
static struct gpio_t	bindIo
static rxSpiConfig_t	spiconfig
static rxCc2500SpiConfig_t	cc2500spiconfig
static telemetryConfig_t	telemetryconfig
struct cc2500_settings_persistent_s	cc2500_settings_persistent

Macro Definition Documentation

_BUTTON_GPIO

#define _BUTTON_GPIO

(

b

)

b ## _GPIO

Definition at line 46 of file cc2500_settings.c.

_BUTTON_PIN

#define _BUTTON_PIN

(

b

)

b ## _PIN

Definition at line 48 of file cc2500_settings.c.

_LED_GPIO

#define _LED_GPIO

(

l

)

l ## _GPIO

Definition at line 37 of file cc2500_settings.c.

_LED_GPIO_OFF

#define _LED_GPIO_OFF

(

l

)

l ## _GPIO_OFF

Definition at line 43 of file cc2500_settings.c.

_LED_GPIO_ON

#define _LED_GPIO_ON

(

l

)

l ## _GPIO_ON

Definition at line 41 of file cc2500_settings.c.

_LED_GPIO_PIN

#define _LED_GPIO_PIN

(

l

)

l ## _GPIO_PIN

Definition at line 39 of file cc2500_settings.c.

BUTTON_GPIO

#define BUTTON_GPIO

(

b

)

_BUTTON_GPIO(b)

Definition at line 47 of file cc2500_settings.c.

BUTTON_PIN

#define BUTTON_PIN

(

b

)

_BUTTON_PIN(b)

Definition at line 49 of file cc2500_settings.c.

CC2500_AUTOBIND

#define CC2500_AUTOBIND   FALSE

Definition at line 57 of file cc2500_settings.c.

CC2500_RX_SPI_PROTOCOL

#define CC2500_RX_SPI_PROTOCOL   RX_SPI_FRSKY_X_LBT

Definition at line 53 of file cc2500_settings.c.

CC2500_TELEMETRY_SENSORS

#define CC2500_TELEMETRY_SENSORS   (SENSOR_VOLTAGE | SENSOR_CURRENT | SENSOR_FUEL | SENSOR_ALTITUDE | SENSOR_VARIO)

Definition at line 61 of file cc2500_settings.c.

LED_GPIO

#define LED_GPIO

(

l

)

_LED_GPIO(l)

Definition at line 38 of file cc2500_settings.c.

LED_GPIO_OFF

#define LED_GPIO_OFF

(

l

)

_LED_GPIO_OFF(l)

Definition at line 44 of file cc2500_settings.c.

LED_GPIO_ON

#define LED_GPIO_ON

(

l

)

_LED_GPIO_ON(l)

Definition at line 42 of file cc2500_settings.c.

LED_GPIO_PIN

#define LED_GPIO_PIN

(

l

)

_LED_GPIO_PIN(l)

Definition at line 40 of file cc2500_settings.c.

Function Documentation

bf_writeEEPROM()

void bf_writeEEPROM

(

void

)

Definition at line 68 of file cc2500_settings.c.

References cc2500_persistent_write(), and settings_StoreSettings.

Here is the call graph for this function:

cc2500_persistent_read()

static void cc2500_persistent_read ( void  )

static

Definition at line 138 of file cc2500_settings.c.

References cc2500_settings_persistent_s::bindHopData, rxCc2500SpiConfig_s::bindHopData, rxCc2500SpiConfig_s::bindOffset, rxCc2500SpiConfig_s::bindTxId, cc2500_settings_persistent_s::bindVars, cc2500_settings_persistent, cc2500spiconfig, and rxCc2500SpiConfig_s::rxNum.

Referenced by cc2500_settings_init().

Here is the caller graph for this function:

cc2500_persistent_write()

static void cc2500_persistent_write ( void  )

static

Definition at line 119 of file cc2500_settings.c.

References cc2500_settings_persistent_s::bindHopData, rxCc2500SpiConfig_s::bindHopData, rxCc2500SpiConfig_s::bindOffset, rxCc2500SpiConfig_s::bindTxId, cc2500_settings_persistent_s::bindVars, cc2500_settings_persistent, cc2500spiconfig, and rxCc2500SpiConfig_s::rxNum.

Referenced by bf_writeEEPROM().

Here is the caller graph for this function:

cc2500_settings_init()

void cc2500_settings_init

(

void

)

Definition at line 159 of file cc2500_settings.c.

References rxCc2500SpiConfig_s::a1Source, rxCc2500SpiConfig_s::autoBind, rxCc2500SpiConfig_s::bindHopData, bindIo, rxSpiConfig_s::bindIoTag, rxCc2500SpiConfig_s::bindOffset, rxCc2500SpiConfig_s::bindTxId, BUTTON_GPIO, BUTTON_PIN, CC2500_AUTOBIND, CC2500_GDO0_GPIO, CC2500_GDO0_PIN, cc2500_persistent_read(), CC2500_RX_SPI_PROTOCOL, cc2500spiconfig, rxCc2500SpiConfig_s::chipDetectEnabled, extiIo, rxSpiConfig_s::extiIoTag, FALSE, foo, FRSKY_SPI_A1_SOURCE_VBAT, gpio_t::hi, LED_GPIO, LED_GPIO_OFF, LED_GPIO_ON, LED_GPIO_PIN, rxSpiConfig_s::ledInversion, ledIo, rxSpiConfig_s::ledIoTag, gpio_t::lo, rxConfig_s::max_aux_channel, rxConfig_s::midrc, telemetryConfig_s::pidValuesAsTelemetry, gpio_t::pin, gpio_t::port, telemetryConfig_s::report_cell_voltage, rxConfig_s::rssi_channel, rxConfig_s::rssi_src_frame_lpf_period, rxSpiConfig_s::rx_spi_protocol, rxconfig, rxCc2500SpiConfig_s::rxNum, settings_init(), spiconfig, telemetryconfig, and TRUE.

Referenced by radio_control_cc2500_init().

Here is the call graph for this function:

Here is the caller graph for this function:

rxCc2500SpiConfig()

const rxCc2500SpiConfig_t * rxCc2500SpiConfig

(

void

)

Definition at line 94 of file cc2500_settings.c.

References cc2500spiconfig.

Referenced by buildTelemetryFrame(), cc2500SpiInit(), frSkySpiDataReceived(), getBind2(), initialiseData(), isValidPacket(), and nextChannel().

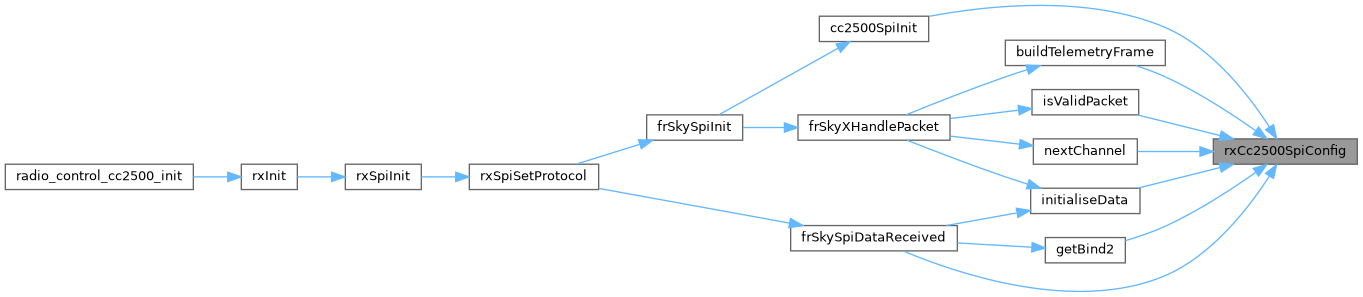

Here is the caller graph for this function:

rxCc2500SpiConfigMutable()

rxCc2500SpiConfig_t * rxCc2500SpiConfigMutable

(

void

)

Definition at line 97 of file cc2500_settings.c.

References cc2500spiconfig.

Referenced by getBind1(), getBind2(), and tuneRx().

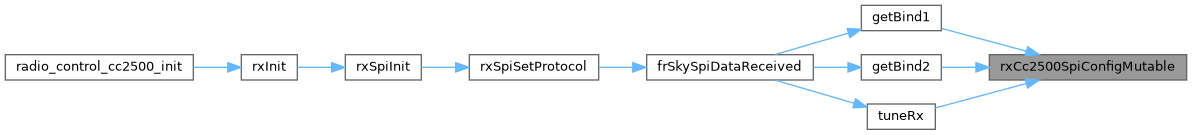

Here is the caller graph for this function:

rxConfig()

const rxConfig_t * rxConfig

(

void

)

Definition at line 77 of file cc2500_settings.c.

References rxconfig.

Referenced by rxInit().

Here is the caller graph for this function:

rxSpiConfig()

const rxSpiConfig_t * rxSpiConfig

(

void

)

Definition at line 87 of file cc2500_settings.c.

References spiconfig.

Referenced by cc2500SpiInit(), frSkySpiInit(), rxInit(), rxSpiCommonIOInit(), and rxSpiInit().

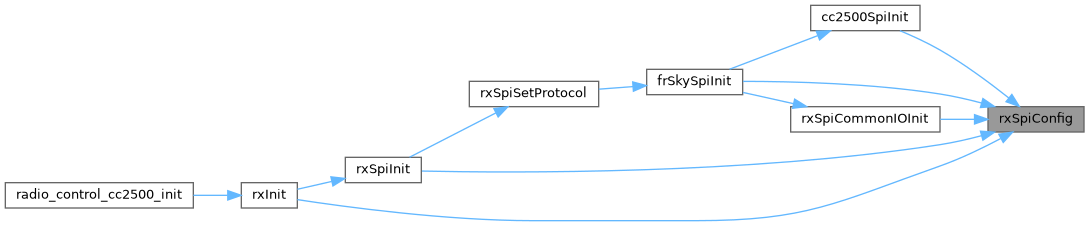

Here is the caller graph for this function:

telemetryConfig()

const telemetryConfig_t * telemetryConfig

(

void

)

Definition at line 105 of file cc2500_settings.c.

References telemetryconfig.

Referenced by processSmartPortTelemetry().

Here is the caller graph for this function:

telemetryIsSensorEnabled()

bool telemetryIsSensorEnabled

(

sensor_e

sensor

)

Definition at line 111 of file cc2500_settings.c.

References CC2500_TELEMETRY_SENSORS, and foo.

Referenced by initSmartPortSensors().

Here is the caller graph for this function:

Variable Documentation

bindIo

struct gpio_t bindIo

static

Definition at line 85 of file cc2500_settings.c.

Referenced by cc2500_settings_init().

cc2500_settings_persistent

struct cc2500_settings_persistent_s cc2500_settings_persistent

Definition at line 117 of file cc2500_settings.c.

Referenced by cc2500_persistent_read(), and cc2500_persistent_write().

cc2500spiconfig

rxCc2500SpiConfig_t cc2500spiconfig

static

Definition at line 93 of file cc2500_settings.c.

Referenced by cc2500_persistent_read(), cc2500_persistent_write(), cc2500_settings_init(), rxCc2500SpiConfig(), and rxCc2500SpiConfigMutable().

extiIo

struct gpio_t extiIo

static

Definition at line 83 of file cc2500_settings.c.

Referenced by cc2500_settings_init().

ledIo

struct gpio_t ledIo

static

Definition at line 84 of file cc2500_settings.c.

Referenced by cc2500_settings_init().

rxconfig

rxConfig_t rxconfig

static

Definition at line 76 of file cc2500_settings.c.

Referenced by cc2500_settings_init(), and rxConfig().

spiconfig

rxSpiConfig_t spiconfig

static

Definition at line 86 of file cc2500_settings.c.

Referenced by cc2500_settings_init(), and rxSpiConfig().

telemetryconfig

telemetryConfig_t telemetryconfig

static

Definition at line 103 of file cc2500_settings.c.

Referenced by cc2500_settings_init(), and telemetryConfig().
