cc2500_settings.h File Reference
#include "cc2500_compat.h"
#include <stdint.h>
+ Include dependency graph for cc2500_settings.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  cc2500_settings_persistent_s

struct  rxConfig_s

struct  rxSpiConfig_s

struct  rxCc2500SpiConfig_s

struct  telemetryConfig_s


Macros

#define writeEEPROM()   bf_writeEEPROM()

#define FRAME_ERR_RESAMPLE_US   100000

#define GET_FRAME_ERR_LPF_FREQUENCY(period)   (1 / (period / 10.0f))

#define SENSOR_NONE   0


Typedefs

typedef struct rxConfig_s rxConfig_t

typedef struct rxSpiConfig_s rxSpiConfig_t

typedef struct rxCc2500SpiConfig_s rxCc2500SpiConfig_t

typedef struct telemetryConfig_s telemetryConfig_t


Enumerations

enum  frSkySpiA1Source_e { FRSKY_SPI_A1_SOURCE_VBAT = 0 , FRSKY_SPI_A1_SOURCE_EXTADC , FRSKY_SPI_A1_SOURCE_CONST }

enum  sensor_e {
  SENSOR_VOLTAGE = 1 << 0 , SENSOR_CURRENT = 1 << 1 , SENSOR_FUEL = 1 << 2 , SENSOR_MODE = 1 << 3 ,
  SENSOR_ACC_X = 1 << 4 , SENSOR_ACC_Y = 1 << 5 , SENSOR_ACC_Z = 1 << 6 , SENSOR_PITCH = 1 << 7 ,
  SENSOR_ROLL = 1 << 8 , SENSOR_HEADING = 1 << 9 , SENSOR_ALTITUDE = 1 << 10 , SENSOR_VARIO = 1 << 11 ,
  SENSOR_LAT_LONG = 1 << 12 , SENSOR_GROUND_SPEED = 1 << 13 , SENSOR_DISTANCE = 1 << 14 , ESC_SENSOR_CURRENT = 1 << 15 ,
  ESC_SENSOR_VOLTAGE = 1 << 16 , ESC_SENSOR_RPM = 1 << 17 , ESC_SENSOR_TEMPERATURE = 1 << 18 , ESC_SENSOR_ALL ,
  SENSOR_TEMPERATURE = 1 << 19 , SENSOR_ALL = (1 << 20) - 1
}


Functions

void cc2500_settings_init (void)

void bf_writeEEPROM (void)

const rxConfig_t * rxConfig (void)

const rxSpiConfig_t * rxSpiConfig (void)

const rxCc2500SpiConfig_t * rxCc2500SpiConfig (void)

rxCc2500SpiConfig_t * rxCc2500SpiConfigMutable (void)

const telemetryConfig_t * telemetryConfig (void)

bool telemetryIsSensorEnabled (sensor_e sensor)


Variables

struct cc2500_settings_persistent_s cc2500_settings_persistent


Data Structure Documentation

◆ cc2500_settings_persistent_s

struct cc2500_settings_persistent_s

Definition at line 35 of file cc2500_settings.h.

Data Fields
uint32_t bindHopData[13]
uint32_t bindVars

◆ rxConfig_s

struct rxConfig_s

Definition at line 53 of file cc2500_settings.h.

Data Fields
uint8_t max_aux_channel
uint16_t midrc
uint8_t rssi_channel
uint8_t rssi_src_frame_lpf_period
uint8_t serialrx_provider

◆ rxSpiConfig_s

struct rxSpiConfig_s

Definition at line 96 of file cc2500_settings.h.

+ Collaboration diagram for rxSpiConfig_s:
Data Fields
ioTag_t bindIoTag
ioTag_t extiIoTag
uint8_t ledInversion
ioTag_t ledIoTag
uint8_t rx_spi_protocol

◆ rxCc2500SpiConfig_s

struct rxCc2500SpiConfig_s

Definition at line 124 of file cc2500_settings.h.

Data Fields
uint8_t a1Source
uint8_t autoBind
uint8_t bindHopData[50]
int8_t bindOffset
uint8_t bindTxId[2]
uint8_t chipDetectEnabled
uint8_t rxNum

◆ telemetryConfig_s

struct telemetryConfig_s

Definition at line 142 of file cc2500_settings.h.

Data Fields
uint8_t pidValuesAsTelemetry
uint8_t report_cell_voltage

Macro Definition Documentation

◆ FRAME_ERR_RESAMPLE_US

#define FRAME_ERR_RESAMPLE_US   100000

Definition at line 49 of file cc2500_settings.h.

◆ GET_FRAME_ERR_LPF_FREQUENCY

#define GET_FRAME_ERR_LPF_FREQUENCY (   period)    (1 / (period / 10.0f))

Definition at line 51 of file cc2500_settings.h.

◆ SENSOR_NONE

#define SENSOR_NONE   0

Definition at line 187 of file cc2500_settings.h.

◆ writeEEPROM

#define writeEEPROM ( )    bf_writeEEPROM()

Definition at line 45 of file cc2500_settings.h.

Typedef Documentation

◆ rxCc2500SpiConfig_t

typedef struct rxCc2500SpiConfig_s rxCc2500SpiConfig_t

◆ rxConfig_t

typedef struct rxConfig_s rxConfig_t

◆ rxSpiConfig_t

typedef struct rxSpiConfig_s rxSpiConfig_t

◆ telemetryConfig_t

typedef struct telemetryConfig_s telemetryConfig_t

Enumeration Type Documentation

◆ frSkySpiA1Source_e

enum frSkySpiA1Source_e
Enumerator
FRSKY_SPI_A1_SOURCE_VBAT
FRSKY_SPI_A1_SOURCE_EXTADC
FRSKY_SPI_A1_SOURCE_CONST

Definition at line 118 of file cc2500_settings.h.

◆ sensor_e

enum sensor_e
Enumerator
SENSOR_VOLTAGE
SENSOR_CURRENT
SENSOR_FUEL
SENSOR_MODE
SENSOR_ACC_X
SENSOR_ACC_Y
SENSOR_ACC_Z
SENSOR_PITCH
SENSOR_ROLL
SENSOR_HEADING
SENSOR_ALTITUDE
SENSOR_VARIO
SENSOR_LAT_LONG
SENSOR_GROUND_SPEED
SENSOR_DISTANCE
ESC_SENSOR_CURRENT
ESC_SENSOR_VOLTAGE
ESC_SENSOR_RPM
ESC_SENSOR_TEMPERATURE
ESC_SENSOR_ALL
SENSOR_TEMPERATURE
SENSOR_ALL

Definition at line 160 of file cc2500_settings.h.

Function Documentation

◆ bf_writeEEPROM()

void bf_writeEEPROM ( void  )

Definition at line 68 of file cc2500_settings.c.

References cc2500_persistent_write(), and settings_StoreSettings.

+ Here is the call graph for this function:

◆ cc2500_settings_init()

void cc2500_settings_init ( void  )

Definition at line 159 of file cc2500_settings.c.

References rxCc2500SpiConfig_s::a1Source, rxCc2500SpiConfig_s::autoBind, rxCc2500SpiConfig_s::bindHopData, bindIo, rxSpiConfig_s::bindIoTag, rxCc2500SpiConfig_s::bindOffset, rxCc2500SpiConfig_s::bindTxId, BUTTON_GPIO, BUTTON_PIN, CC2500_AUTOBIND, CC2500_GDO0_GPIO, CC2500_GDO0_PIN, cc2500_persistent_read(), CC2500_RX_SPI_PROTOCOL, cc2500spiconfig, rxCc2500SpiConfig_s::chipDetectEnabled, extiIo, rxSpiConfig_s::extiIoTag, FALSE, FRSKY_SPI_A1_SOURCE_VBAT, gpio_t::hi, LED_GPIO, LED_GPIO_OFF, LED_GPIO_ON, LED_GPIO_PIN, rxSpiConfig_s::ledInversion, ledIo, rxSpiConfig_s::ledIoTag, gpio_t::lo, rxConfig_s::max_aux_channel, rxConfig_s::midrc, telemetryConfig_s::pidValuesAsTelemetry, gpio_t::pin, gpio_t::port, telemetryConfig_s::report_cell_voltage, rxConfig_s::rssi_channel, rxConfig_s::rssi_src_frame_lpf_period, rxSpiConfig_s::rx_spi_protocol, rxconfig, rxCc2500SpiConfig_s::rxNum, settings_init(), spiconfig, telemetryconfig, and TRUE.

Referenced by radio_control_cc2500_init().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ rxCc2500SpiConfig()

const rxCc2500SpiConfig_t* rxCc2500SpiConfig ( void  )

Definition at line 94 of file cc2500_settings.c.

References cc2500spiconfig.

Referenced by buildTelemetryFrame(), cc2500SpiInit(), frSkySpiDataReceived(), getBind2(), initialiseData(), isValidPacket(), and nextChannel().

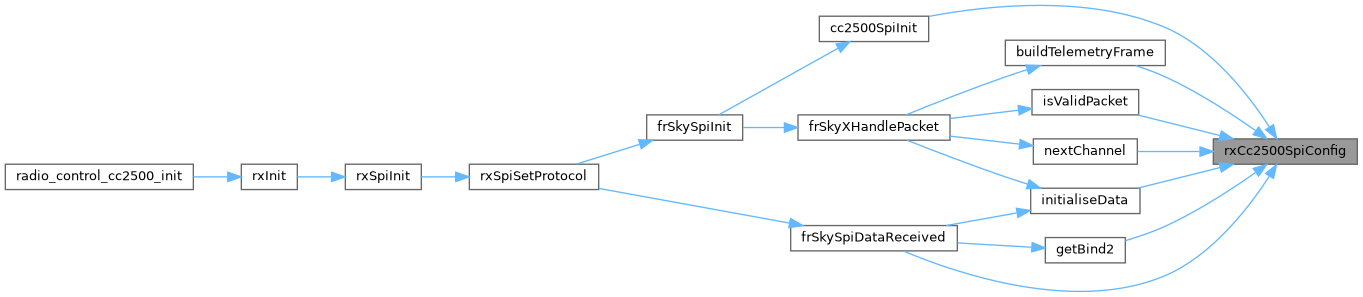

+ Here is the caller graph for this function:

◆ rxCc2500SpiConfigMutable()

rxCc2500SpiConfig_t* rxCc2500SpiConfigMutable ( void  )

Definition at line 97 of file cc2500_settings.c.

References cc2500spiconfig.

Referenced by getBind1(), getBind2(), and tuneRx().

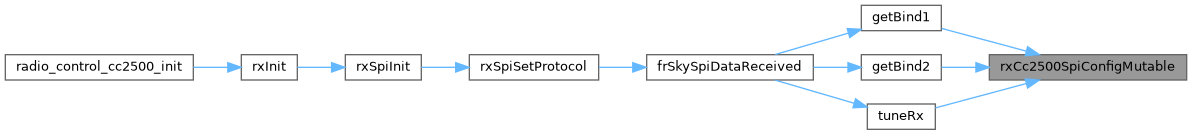

+ Here is the caller graph for this function:

◆ rxConfig()

const rxConfig_t* rxConfig ( void  )

Definition at line 77 of file cc2500_settings.c.

Referenced by rxInit().

+ Here is the caller graph for this function:

◆ rxSpiConfig()

const rxSpiConfig_t* rxSpiConfig ( void  )

Definition at line 87 of file cc2500_settings.c.

References spiconfig.

Referenced by cc2500SpiInit(), frSkySpiInit(), rxInit(), rxSpiCommonIOInit(), and rxSpiInit().

+ Here is the caller graph for this function:

◆ telemetryConfig()

const telemetryConfig_t* telemetryConfig ( void  )

Definition at line 105 of file cc2500_settings.c.

References telemetryconfig.

Referenced by processSmartPortTelemetry().

+ Here is the caller graph for this function:

◆ telemetryIsSensorEnabled()

bool telemetryIsSensorEnabled ( sensor_e  sensor)

Definition at line 111 of file cc2500_settings.c.

Referenced by initSmartPortSensors().

+ Here is the caller graph for this function:

Variable Documentation

◆ cc2500_settings_persistent

struct cc2500_settings_persistent_s cc2500_settings_persistent
extern

Definition at line 111 of file cc2500_settings.c.

Referenced by cc2500_persistent_read(), and cc2500_persistent_write().
