nps_ivy.c File Reference

#include "nps_ivy.h"
#include <stdlib.h>
#include <stdio.h>
#include <sys/types.h>
#include <unistd.h>
#include <Ivy/ivy.h>
#include <Ivy/ivyloop.h>
#include <pthread.h>
#include "generated/airframe.h"
#include "math/pprz_algebra_float.h"
#include "math/pprz_algebra_double.h"
#include "nps_main.h"
#include "nps_autopilot.h"
#include "nps_fdm.h"
#include "nps_sensors.h"
#include "nps_atmosphere.h"
#include "generated/settings.h"
#include "pprzlink/dl_protocol.h"
#include "modules/datalink/downlink.h"
#include "modules/gps/gps.h"

Include dependency graph for nps_ivy.c:

Go to the source code of this file.

Functions
static void	on_WORLD_ENV (IvyClientPtr app, void *user_data, int argc, char *argv[])
static void	on_DL_SETTING (IvyClientPtr app, void *user_data, int argc, char *argv[])
void *	ivy_main_loop (void *data)
int	find_launch_index (void)
void	nps_ivy_init (char *ivy_bus)
void	nps_ivy_send_WORLD_ENV_REQ (void)
void	nps_ivy_display (struct NpsFdm *fdm_data, struct NpsSensors *sensors_data)

Variables
bool	nps_ivy_send_world_env = false
pthread_t	th_ivy_main
static MsgRcvPtr	ivyPtr = NULL
static int	seq = 1
static int	ap_launch_index
static pthread_mutex_t	ivy_mutex

Function Documentation

find_launch_index()

int find_launch_index

(

void

)

Definition at line 161 of file nps_ivy.c.

References idx.

Referenced by nps_ivy_init().

Here is the caller graph for this function:

ivy_main_loop()

void * ivy_main_loop

(

void *

data

)

Definition at line 51 of file nps_ivy.c.

Referenced by nps_ivy_init().

Here is the caller graph for this function:

nps_ivy_display()

void nps_ivy_display	(	struct NpsFdm *	fdm_data,
		struct NpsSensors *	sensors_data
	)

Definition at line 221 of file nps_ivy.c.

References NpsSensors::accel, NpsFdm::agl, LlaCoor_d::alt, NpsSensorGyro::bias_initial, NpsSensorGyro::bias_random_walk_value, NpsFdm::body_ecef_rotvel, double_quat_vmult(), fdm, fdm_mutex, NpsSensors::gyro, NpsFdm::hmsl, ivy_mutex, LlaCoor_d::lat, NpsFdm::lla_pos_geoc, NpsFdm::lla_pos_geod, NpsFdm::lla_pos_pprz, LlaCoor_d::lon, NpsFdm::ltp_h, NpsFdm::ltp_to_body_eulers, NpsFdm::ltp_to_body_quat, NpsFdm::ltpprz_ecef_accel, NpsFdm::ltpprz_ecef_vel, NpsFdm::ltpprz_pos, NpsSensorAccel::neutral, nps_ivy_send_world_env, nps_ivy_send_WORLD_ENV_REQ(), DoubleRates::p, DoubleEulers::phi, DoubleEulers::psi, DoubleRates::q, DoubleRates::r, RATE_FLOAT_OF_BFP, sensors, DoubleEulers::theta, NpsSensorAccel::value, NpsFdm::wind, DoubleVect3::x, NedCoor_d::x, DoubleVect3::y, NedCoor_d::y, DoubleVect3::z, and NedCoor_d::z.

Referenced by nps_main_display().

Here is the call graph for this function:

Here is the caller graph for this function:

nps_ivy_init()

void nps_ivy_init

(

char *

ivy_bus

)

Definition at line 58 of file nps_ivy.c.

References ap_launch_index, find_launch_index(), ivy_main_loop(), nps_ivy_send_world_env, on_DL_SETTING(), on_WORLD_ENV(), and th_ivy_main.

Referenced by nps_main_display().

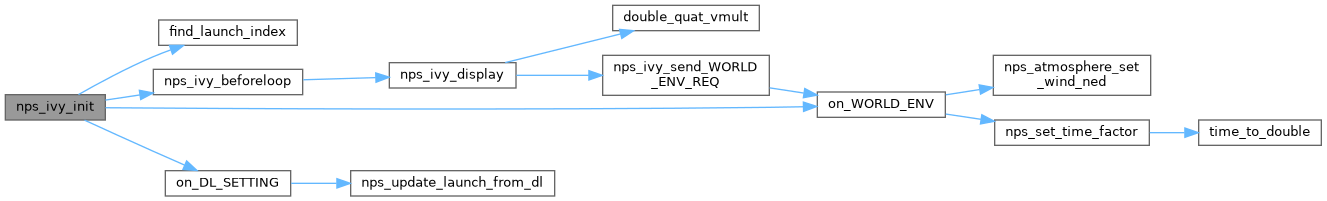

Here is the call graph for this function:

Here is the caller graph for this function:

nps_ivy_send_WORLD_ENV_REQ()

void nps_ivy_send_WORLD_ENV_REQ

(

void

)

Definition at line 127 of file nps_ivy.c.

References fdm, NpsFdm::hmsl, ivy_mutex, ivyPtr, LlaCoor_d::lat, NpsFdm::lla_pos_pprz, LlaCoor_d::lon, NpsFdm::ltpprz_pos, nps_ivy_send_world_env, on_WORLD_ENV(), seq, NedCoor_d::x, NedCoor_d::y, and NedCoor_d::z.

Referenced by nps_ivy_display().

Here is the call graph for this function:

Here is the caller graph for this function:

on_DL_SETTING()

static void on_DL_SETTING ( IvyClientPtr  app, void *  user_data, int  argc, char *  argv[]  )

static

Definition at line 182 of file nps_ivy.c.

References ap_launch_index, DefaultChannel, DefaultDevice, and nps_update_launch_from_dl().

Referenced by nps_ivy_init().

Here is the call graph for this function:

Here is the caller graph for this function:

on_WORLD_ENV()

static void on_WORLD_ENV ( IvyClientPtr  app, void *  user_data, int  argc, char *  argv[]  )

static

Definition at line 94 of file nps_ivy.c.

References gps_has_fix, nps_atmosphere_set_wind_ned(), nps_set_time_factor(), FloatVect3::x, FloatVect3::y, and FloatVect3::z.

Referenced by nps_ivy_init(), and nps_ivy_send_WORLD_ENV_REQ().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

ap_launch_index

int ap_launch_index

static

Definition at line 33 of file nps_ivy.c.

Referenced by nps_ivy_init(), and on_DL_SETTING().

ivy_mutex

pthread_mutex_t ivy_mutex

static

Definition at line 34 of file nps_ivy.c.

Referenced by nps_ivy_display(), and nps_ivy_send_WORLD_ENV_REQ().

ivyPtr

MsgRcvPtr ivyPtr = NULL

static

Definition at line 31 of file nps_ivy.c.

Referenced by nps_ivy_send_WORLD_ENV_REQ().

nps_ivy_send_world_env

bool nps_ivy_send_world_env = false

Definition at line 29 of file nps_ivy.c.

Referenced by nps_atmosphere_update(), nps_ivy_display(), nps_ivy_init(), and nps_ivy_send_WORLD_ENV_REQ().

seq

int seq = 1

static

Definition at line 32 of file nps_ivy.c.

Referenced by escape_process(), mavlink_send_block(), mavlink_send_wp(), and nps_ivy_send_WORLD_ENV_REQ().

th_ivy_main

pthread_t th_ivy_main

Definition at line 30 of file nps_ivy.c.

Referenced by nps_ivy_init().
