sys_time.h File Reference

Architecture independent timing functions. More...

#include <inttypes.h>
#include <stdlib.h>
#include "std.h"
#include <BOARD_CONFIG>

Include dependency graph for sys_time.h:

Go to the source code of this file.

Data Structures
struct	sys_time_timer
struct	sys_time

Macros
#define	SYS_TIME_NB_TIMER   16
#define	SYS_TIME_FREQUENCY   1000
	(Default) sys_time timer frequency in Hz.
#define	USEC_OF_SEC(sec)   ((sec) * 1e6)
#define	SysTimeTimerStart(_t)   { _t = get_sys_time_usec(); }
#define	SysTimeTimer(_t)   ( get_sys_time_usec() - (_t))
#define	SysTimeTimerStop(_t)   { _t = ( get_sys_time_usec() - (_t)); }

Typedefs
typedef int8_t	tid_t
	sys_time timer id type
typedef void(*	sys_time_cb) (uint8_t id)

Functions
void	sys_time_init (void)
void	sys_time_usleep (uint32_t us)
	Sleep.
void	sys_time_msleep (uint32_t ms)
	Sleep.
uint32_t	get_sys_time_usec (void)
	Get the time in microseconds since startup.
uint32_t	get_sys_time_usec100 (void)
	Get the time in 100microseconds since startup.
uint32_t	get_sys_time_msec (void)
	Get the time in milliseconds since startup.
uint32_t	sys_time_rtc_millisecond (void)
	Get the RTC time in milliseconds since midnight.
tid_t	sys_time_register_timer (float duration, sys_time_cb cb)
	Register a new system timer.
tid_t	sys_time_register_timer_offset (tid_t timer, float offset, sys_time_cb cb)
	Register a new system timer with an fixed offset from another one.
void	sys_time_cancel_timer (tid_t id)
	Cancel a system timer by id.
void	sys_time_update_timer (tid_t id, float duration)
	Update the duration until a timer elapses.
static bool	sys_time_check_and_ack_timer (tid_t id)
	Check if timer has elapsed.
static float	get_sys_time_float (void)
	Get the time in seconds since startup.
static uint32_t	sys_time_ticks_of_sec (float seconds)
static uint32_t	sys_time_ticks_of_msec (uint32_t msec)
static uint32_t	sys_time_ticks_of_usec (uint32_t usec)
static float	sec_of_sys_time_ticks (uint32_t ticks)
static uint32_t	msec_of_sys_time_ticks (uint32_t ticks)
static uint32_t	usec_of_sys_time_ticks (uint32_t ticks)
static uint32_t	cpu_ticks_of_sec (float seconds)
static uint32_t	cpu_ticks_of_usec (uint32_t usec)
static int32_t	signed_cpu_ticks_of_usec (int32_t usec)
static uint32_t	cpu_ticks_of_nsec (uint32_t nsec)
static uint32_t	msec_of_cpu_ticks (uint32_t cpu_ticks)
static uint32_t	usec_of_cpu_ticks (uint32_t cpu_ticks)
static uint32_t	nsec_of_cpu_ticks (uint32_t cpu_ticks)
void	sys_time_arch_init (void)

Variables
struct sys_time	sys_time

Detailed Description

Architecture independent timing functions.

Definition in file sys_time.h.

---

Data Structure Documentation

sys_time_timer

struct sys_time_timer

Definition at line 63 of file sys_time.h.

Data Fields
sys_time_cb	cb
uint32_t	duration	in SYS_TIME_TICKS
volatile bool	elapsed
uint32_t	end_time	in SYS_TIME_TICKS
bool	in_use

sys_time

struct sys_time

Definition at line 71 of file sys_time.h.

Collaboration diagram for sys_time:

Data Fields
uint32_t	cpu_ticks_per_sec	cpu ticks per second
volatile uint32_t	nb_sec	full seconds since startup
volatile uint32_t	nb_sec_rem	remainder of seconds since startup in CPU_TICKS
volatile uint32_t	nb_tick	SYS_TIME_TICKS since startup.
float	resolution	sys_time_timer resolution in seconds
uint32_t	resolution_cpu_ticks	sys_time_timer resolution in cpu ticks
uint32_t	ticks_per_sec	sys_time ticks per second (SYS_TIME_FREQUENCY)
struct sys_time_timer	timer[SYS_TIME_NB_TIMER]

Macro Definition Documentation

SYS_TIME_FREQUENCY

#define SYS_TIME_FREQUENCY   1000

(Default) sys_time timer frequency in Hz.

sys_time.resolution is set from this define.

Definition at line 56 of file sys_time.h.

SYS_TIME_NB_TIMER

#define SYS_TIME_NB_TIMER   16

Definition at line 44 of file sys_time.h.

SysTimeTimer

#define SysTimeTimer

(

_t

)

( get_sys_time_usec() - (_t))

Definition at line 263 of file sys_time.h.

SysTimeTimerStart

#define SysTimeTimerStart

(

_t

)

{ _t = get_sys_time_usec(); }

Definition at line 262 of file sys_time.h.

SysTimeTimerStop

#define SysTimeTimerStop

(

_t

)

{ _t = ( get_sys_time_usec() - (_t)); }

Definition at line 264 of file sys_time.h.

USEC_OF_SEC

#define USEC_OF_SEC

(

sec

)

((sec) * 1e6)

Definition at line 255 of file sys_time.h.

Typedef Documentation

sys_time_cb

typedef void(* sys_time_cb) (uint8_t id)

Definition at line 61 of file sys_time.h.

tid_t

typedef int8_t tid_t

sys_time timer id type

Definition at line 60 of file sys_time.h.

Function Documentation

cpu_ticks_of_nsec()

static uint32_t cpu_ticks_of_nsec ( uint32_t  nsec )

inlinestatic

Definition at line 233 of file sys_time.h.

References sys_time::cpu_ticks_per_sec, and foo.

Referenced by sys_tick_handler().

Here is the caller graph for this function:

cpu_ticks_of_sec()

static uint32_t cpu_ticks_of_sec ( float  seconds )

inlinestatic

Definition at line 218 of file sys_time.h.

References sys_time::cpu_ticks_per_sec, and foo.

Referenced by sys_tick_handler().

Here is the caller graph for this function:

cpu_ticks_of_usec()

static uint32_t cpu_ticks_of_usec ( uint32_t  usec )

inlinestatic

Definition at line 223 of file sys_time.h.

References sys_time::cpu_ticks_per_sec, and foo.

Referenced by xtend_rssi_periodic().

Here is the caller graph for this function:

get_sys_time_float()

static float get_sys_time_float ( void  )

inlinestatic

Get the time in seconds since startup.

Returns

current system time as float with sys_time.resolution

Definition at line 174 of file sys_time.h.

References sys_time::cpu_ticks_per_sec, foo, sys_time::nb_sec, and sys_time::nb_sec_rem.

Referenced by accel_sp_cb(), actuators_faulhaber_periodic(), actuators_t4_uart_event(), actuators_uavcan_esc_status_cb(), agl_cb(), agl_dist_init(), agl_dist_timeout(), airspeed_cb(), autopilot_arming_check_motors_on(), autopilot_arming_set(), baro_cb(), cc2500_delayMicroseconds(), check_anchor_timeout(), chirp_call(), ctrl_module_run(), dc_periodic(), ekf_run(), get_uavcan_status(), gps_cb(), gps_fix_valid(), guidance_indi_run_mode(), guidance_indi_run_mode(), gyro_cb(), hmc58xx_start_configure(), hx711_event(), imu_aspirin2_configure_mag_slave(), imu_mpu9250_configure_mag_slave(), incidence_cb(), ins_flow_init(), ins_flow_update(), logger_control_effectiveness_periodic(), logger_file_write_row(), mag_cb(), nav_lace_run(), nav_rosette_run(), nav_rosette_setup(), nav_trinity_run(), optical_flow_landing_init(), periodic_report_sysmon(), periodic_sys_id_auto_doublets(), pfc_actuators_run(), PID_divergence_control(), preflight_check(), pressure_diff_cb(), px4flow_i2c_downlink(), px4flow_i2c_frame_cb(), read_rc_setpoint_heading(), reset_all_vars(), reset_horizontal_vars(), reset_vertical_vars(), rotwing_state_feedback_cb(), rotwing_state_hover_motors_idling(), rotwing_state_hover_motors_running(), rotwing_state_periodic(), rotwing_state_pusher_motor_running(), rotwing_state_skew_angle_valid(), rpm_cb(), send_filter_status(), stabilization_attitude_read_rc_setpoint_eulers(), stabilization_attitude_read_rc_setpoint_eulers_f(), start_chirp(), start_doublet(), start_wave(), stop_chirp(), stop_doublet(), stop_wave(), sys_id_auto_doublets_on_activation(), sys_id_chirp_activate_handler(), sys_id_chirp_init(), sys_id_chirp_run(), sys_id_doublet_activate_handler(), sys_id_doublet_init(), sys_id_doublet_run(), sys_id_wave_activate_handler(), sys_id_wave_frequency_hz_set(), sys_id_wave_init(), sys_id_wave_lag_rad_set(), sys_id_wave_run(), uwb_ranging_cb(), vel_sp_cb(), vertical_ctrl_module_run(), and vertical_ctrl_optical_flow_cb().

get_sys_time_msec()

uint32_t get_sys_time_msec

(

void

)

Get the time in milliseconds since startup.

Returns

milliseconds since startup as uint32_t

Definition at line 105 of file sys_time_arch.c.

References cpu_counter, foo, msec_of_cpu_ticks(), sys_time::nb_sec, sys_time::nb_sec_rem, and startup_time.

Referenced by ak8975_event(), ak8975_read(), approach_moving_target_enable(), bf_millis(), buzzer_tunes_periodic(), collective_tracking_control(), dc_ctrl_parrot_mykonos_command(), dc_ctrl_parrot_mykonos_periodic(), decay_map(), distributed_circular(), follow_diagonal_approach(), follow_me_parse_target_pos(), follow_me_set_wp(), gps_piksi_event(), gvf_control_2D(), gvf_ik_control_2D(), gvf_parametric_control_2D(), hackhd_command(), hackhd_periodic(), init_random(), ins_ext_pose_check_age(), mavlink_send_attitude(), mavlink_send_attitude(), mavlink_send_attitude_quaternion(), mavlink_send_global_position_int(), mavlink_send_highres_imu(), mavlink_send_local_position_ned(), mavlink_send_rc_channels(), mavlink_send_set_mode(), mavlink_send_system_time(), parseThetaTable(), periodic_2Hz_openlog(), reset_gamma_t0(), sbp_pos_ecef_callback(), sbus_common_decode_event(), send_downlink(), send_gvf(), send_gvf(), send_gvf_parametric(), spb_heartbeat_callback(), spektrum_init_sat(), spektrum_uart_check(), start_next_note(), target_get_pos(), target_get_vel(), target_parse_target_pos(), target_pos_set_current_offset(), tunnel_event(), and wind_estimator_periodic().

Here is the call graph for this function:

Here is the caller graph for this function:

get_sys_time_usec()

uint32_t get_sys_time_usec

(

void

)

Get the time in microseconds since startup.

WARNING: overflows after 70min!

Returns

microseconds since startup as uint32_t

WARNING: overflows after 71min34seconds!

Returns

current system time as uint32_t

Definition at line 78 of file sys_time_arch.c.

References cpu_counter, foo, sys_time::nb_sec, sys_time::nb_sec_rem, startup_time, and usec_of_cpu_ticks().

Referenced by ahrs_aligner_run(), ahrs_vectornav_event(), apogee_baro_event(), ardrone_baro_event(), baro_amsys_read_event(), baro_bmp280_event(), baro_bmp3_event(), baro_bmp_event(), baro_dps310_event(), baro_ets_read_event(), baro_event(), baro_hca_read_event(), baro_mpl3115_read_event(), baro_MS5534A_event(), baro_ms5611_event(), baro_scp_event(), baro_sim_periodic(), baro_spa06_event(), bf_micros(), cloud_sensor_callback(), cloud_sim_detect(), decode_optical_flow_msg(), dps310_i2c_event(), dps310_i2c_periodic(), ekf_aw_propagate(), gps_cb(), gps_datalink_publish(), gps_feed_value(), gps_intermcu_parse_IMCU_REMOTE_GPS(), gps_mtk_msg(), gps_piksi_publish(), gps_sim_publish(), gps_sirf_msg(), gps_skytraq_msg(), gps_uavcan_cb(), gps_ubx_msg(), gps_ubx_parse_nav_relposned(), gps_udp_parse(), handle_ins_msg(), hott_periodic_event(), hx711_event(), imu_apogee_event(), imu_aspirin2_event(), imu_aspirin_event(), imu_aspirin_i2c_event(), imu_bebop_event(), imu_bmi088_event(), imu_cube_event(), imu_disco_event(), imu_heater_run(), imu_mpu9250_event(), imu_mpu_hmc_event(), imu_mpu_i2c_event(), imu_mpu_spi_event(), imu_nps_event(), imu_px4_event(), imu_px4fmu_event(), ins_alt_float_update_baro(), ins_alt_float_update_gps(), ins_ekf2_parse_EXTERNAL_POSE(), ins_ext_pose_msg_update(), invensense2_config(), invensense2_parse_data(), invensense3_456_config(), invensense3_456_parse_fifo_data(), invensense3_config(), invensense3_parse_fifo_data(), invensense3_parse_reg_data(), laser_range_array_parse_msg(), lidar_lite_periodic(), lidar_sf11_periodic(), lidar_vl53l5cx_periodic(), lisa_l_baro_event(), LWC_callback(), mag_hmc58xx_module_event(), mag_ist8310_module_event(), mag_lis3mdl_module_event(), mag_pitot_parse_msg(), mag_qmc5883l_module_event(), mag_rm3100_module_event(), mag_uavcan_cb(), mag_uavcan_cb2(), main(), mateksys3901l0x_parse(), mavlink_send_gps_global_origin(), mavlink_send_gps_raw_int(), meteo_stick_event(), navdata_publish_imu(), navdata_update(), nmea_gps_msg(), nps_autopilot_run_step(), opticflow_module_run(), opticflow_pmw3901_event(), pdec_dispatch_frame(), pose_periodic(), px4flow_i2c_frame_cb(), range_msg_callback(), range_sensor_uavcan_cb(), send_anchor_data(), send_filter_status(), send_filter_status(), send_filter_status(), send_filter_status(), send_filter_status(), send_filter_status(), send_filter_status(), send_filter_status(), send_filter_status(), sensors_hitl_event(), sensors_hitl_parse_HITL_AIR_DATA(), sensors_hitl_parse_HITL_GPS(), sonar_adc_periodic(), sonar_bebop_event(), sonar_i2c_periodic(), sonar_pwm_read(), sonar_vl53l1x_publish(), spa06_event(), spa06_periodic(), stereocam_parse_msg(), sts3032_event(), superbitrf_event(), superbitrf_receive_packet_cb(), teraranger_event(), tfmini_i2c_periodic(), tfmini_send_abi(), v4l2_capture_thread(), and video_thread_function().

Here is the call graph for this function:

get_sys_time_usec100()

uint32_t get_sys_time_usec100

(

void

)

Get the time in 100microseconds since startup.

WARNING: overflows after 7000min!

Returns

100microseconds since startup as uint32_t

Get the time in 100microseconds since startup.

WARNING: overflows after 7000min!

Returns

100microseconds since startup as uint32_t

WARNING: overflows after 7000 minutes!

Returns

current system time as uint32_t

Definition at line 94 of file sys_time_arch.c.

References cpu_counter, foo, sys_time::nb_sec, sys_time::nb_sec_rem, startup_time, and usec_of_cpu_ticks().

Referenced by pprzlog_tp_init().

Here is the call graph for this function:

Here is the caller graph for this function:

msec_of_cpu_ticks()

static uint32_t msec_of_cpu_ticks ( uint32_t  cpu_ticks )

inlinestatic

Definition at line 238 of file sys_time.h.

References cpu_ticks, and sys_time::cpu_ticks_per_sec.

Referenced by get_sys_time_msec().

Here is the caller graph for this function:

msec_of_sys_time_ticks()

static uint32_t msec_of_sys_time_ticks ( uint32_t  ticks )

inlinestatic

Definition at line 203 of file sys_time.h.

References ticks, and sys_time::ticks_per_sec.

Referenced by gps_tow_from_sys_ticks(), and windturbine_periodic().

Here is the caller graph for this function:

nsec_of_cpu_ticks()

static uint32_t nsec_of_cpu_ticks ( uint32_t  cpu_ticks )

inlinestatic

Definition at line 248 of file sys_time.h.

References cpu_ticks, and sys_time::cpu_ticks_per_sec.

sec_of_sys_time_ticks()

static float sec_of_sys_time_ticks ( uint32_t  ticks )

inlinestatic

Definition at line 198 of file sys_time.h.

References sys_time::resolution, and ticks.

signed_cpu_ticks_of_usec()

static int32_t signed_cpu_ticks_of_usec ( int32_t  usec )

inlinestatic

Definition at line 228 of file sys_time.h.

References sys_time::cpu_ticks_per_sec, and foo.

sys_time_arch_init()

void sys_time_arch_init

(

void

)

Definition at line 59 of file sys_time_arch.c.

References CH_CFG_ST_FREQUENCY, sys_time::cpu_ticks_per_sec, foo, sys_time::resolution, sys_time::resolution_cpu_ticks, rtc_ms_start, startup_time, sys_time_thread_main(), and thd_sys_tick().

Referenced by sys_time_init().

Here is the call graph for this function:

Here is the caller graph for this function:

sys_time_cancel_timer()

void sys_time_cancel_timer ( tid_t  id )

extern

Cancel a system timer by id.

Parameters

id

Timer id.

Definition at line 76 of file sys_time.c.

References sys_time_timer::cb, sys_time_timer::duration, sys_time_timer::elapsed, sys_time_timer::end_time, foo, sys_time_timer::in_use, and sys_time::timer.

Referenced by mavlink_mission_cancel_timer(), and px4flash_event().

Here is the caller graph for this function:

sys_time_check_and_ack_timer()

static bool sys_time_check_and_ack_timer ( tid_t  id )

inlinestatic

Check if timer has elapsed.

Parameters

id

Timer id

Returns

TRUE if timer has elapsed

Definition at line 159 of file sys_time.h.

References sys_time_timer::elapsed, SYS_TIME_NB_TIMER, and sys_time::timer.

Referenced by main(), main_ap_periodic(), main_fbw_periodic(), main_recovery_periodic(), mavlink_mission_periodic(), and px4flash_event().

Here is the caller graph for this function:

sys_time_init()

void sys_time_init ( void  )

extern

Definition at line 126 of file sys_time.c.

References sys_time_timer::cb, sys_time_timer::duration, sys_time_timer::elapsed, sys_time_timer::end_time, foo, sys_time_timer::in_use, sys_time::nb_sec, sys_time::nb_sec_rem, sys_time::nb_tick, sys_time::resolution, shell_add_entry(), sys_time_arch_init(), SYS_TIME_FREQUENCY, SYS_TIME_NB_TIMER, sys_time::ticks_per_sec, and sys_time::timer.

Referenced by main(), and mcu_init().

Here is the call graph for this function:

Here is the caller graph for this function:

sys_time_msleep()

void sys_time_msleep

(

uint32_t

ms

)

Sleep.

Parameters

ms	milliseconds

Definition at line 135 of file sys_time_arch.c.

References foo, and sys_time_usleep().

Referenced by uavcan_tx().

Here is the call graph for this function:

Here is the caller graph for this function:

sys_time_register_timer()

tid_t sys_time_register_timer ( float  duration, sys_time_cb  cb  )

extern

Register a new system timer.

Parameters

duration	Duration in seconds until the timer elapses.
cb	Callback function that is called from the ISR when timer elapses, or NULL

Returns

-1 if it failed, the timer id otherwise

Definition at line 43 of file sys_time.c.

References sys_time_timer::cb, sys_time_timer::duration, sys_time_timer::elapsed, sys_time_timer::end_time, sys_time_timer::in_use, sys_time::nb_tick, start_time, SYS_TIME_NB_TIMER, sys_time_ticks_of_sec(), and sys_time::timer.

Referenced by intermcu_init(), main_ap_init(), main_fbw_init(), main_init(), main_init(), main_init(), main_init(), main_init(), main_init(), main_init(), main_recovery_init(), mavlink_mission_set_timer(), and px4flash_init().

Here is the call graph for this function:

Here is the caller graph for this function:

sys_time_register_timer_offset()

tid_t sys_time_register_timer_offset ( tid_t  timer, float  offset, sys_time_cb  cb  )

extern

Register a new system timer with an fixed offset from another one.

Parameters

timer	timer providing start time and duration
offset	offset in seconds beetween the timers (will overlap if longer than duration)
cb	Callback function that is called from the ISR when timer elapses, or NULL

Returns

-1 if it failed, the timer id otherwise

Definition at line 59 of file sys_time.c.

References sys_time_timer::cb, sys_time_timer::duration, sys_time_timer::elapsed, sys_time_timer::end_time, sys_time_timer::in_use, offset, SYS_TIME_NB_TIMER, sys_time_ticks_of_sec(), and sys_time::timer.

Referenced by main_ap_init().

Here is the call graph for this function:

Here is the caller graph for this function:

sys_time_rtc_millisecond()

uint32_t sys_time_rtc_millisecond

(

void

)

Get the RTC time in milliseconds since midnight.

Returns

milliseconds since midnight as uint32_t

Definition at line 190 of file sys_time_arch.c.

References sys_time::cpu_ticks_per_sec, foo, sys_time::nb_sec, sys_time::nb_sec_rem, and rtc_ms_start.

sys_time_ticks_of_msec()

static uint32_t sys_time_ticks_of_msec ( uint32_t  msec )

inlinestatic

Definition at line 188 of file sys_time.h.

References foo, and sys_time::ticks_per_sec.

sys_time_ticks_of_sec()

static uint32_t sys_time_ticks_of_sec ( float  seconds )

inlinestatic

Definition at line 183 of file sys_time.h.

References foo, and sys_time::ticks_per_sec.

Referenced by sys_tick_handler(), sys_time_register_timer(), sys_time_register_timer_offset(), and sys_time_update_timer().

Here is the caller graph for this function:

sys_time_ticks_of_usec()

static uint32_t sys_time_ticks_of_usec ( uint32_t  usec )

inlinestatic

Definition at line 193 of file sys_time.h.

References foo, and sys_time::ticks_per_sec.

Referenced by sys_tick_handler().

Here is the caller graph for this function:

sys_time_update_timer()

void sys_time_update_timer ( tid_t  id, float  duration  )

extern

Update the duration until a timer elapses.

Parameters

id	Timer id
duration	Duration in seconds until the timer elapses.

Definition at line 86 of file sys_time.c.

References sys_time_timer::duration, sys_time_timer::end_time, sys_time_ticks_of_sec(), and sys_time::timer.

Referenced by mavlink_mission_set_timer().

Here is the call graph for this function:

Here is the caller graph for this function:

sys_time_usleep()

void sys_time_usleep

(

uint32_t

us

)

Sleep.

Parameters

us	microseconds

Sleep.

using intermediate 64 bits variable to avoid wrapping

max sleep time is around 10 days (2^32 / CH_CFG_ST_FREQUENCY) at 10kHz

Definition at line 123 of file sys_time_arch.c.

References foo.

Referenced by bf_delayMicroseconds(), cyrf6936_init(), humid_sht_thd(), initializeSensor(), main(), pcap01_init(), px4flash_event(), readRegister_blocking(), received_spektrum_soft_bind(), send_spektrum_bind(), sht_read_humid(), sht_read_serial(), sht_read_temp(), spektrum_bind(), spektrum_try_bind(), sys_time_msleep(), video_thread_function(), w5100_init(), writeRegister_blocking(), and xbee_dl_init().

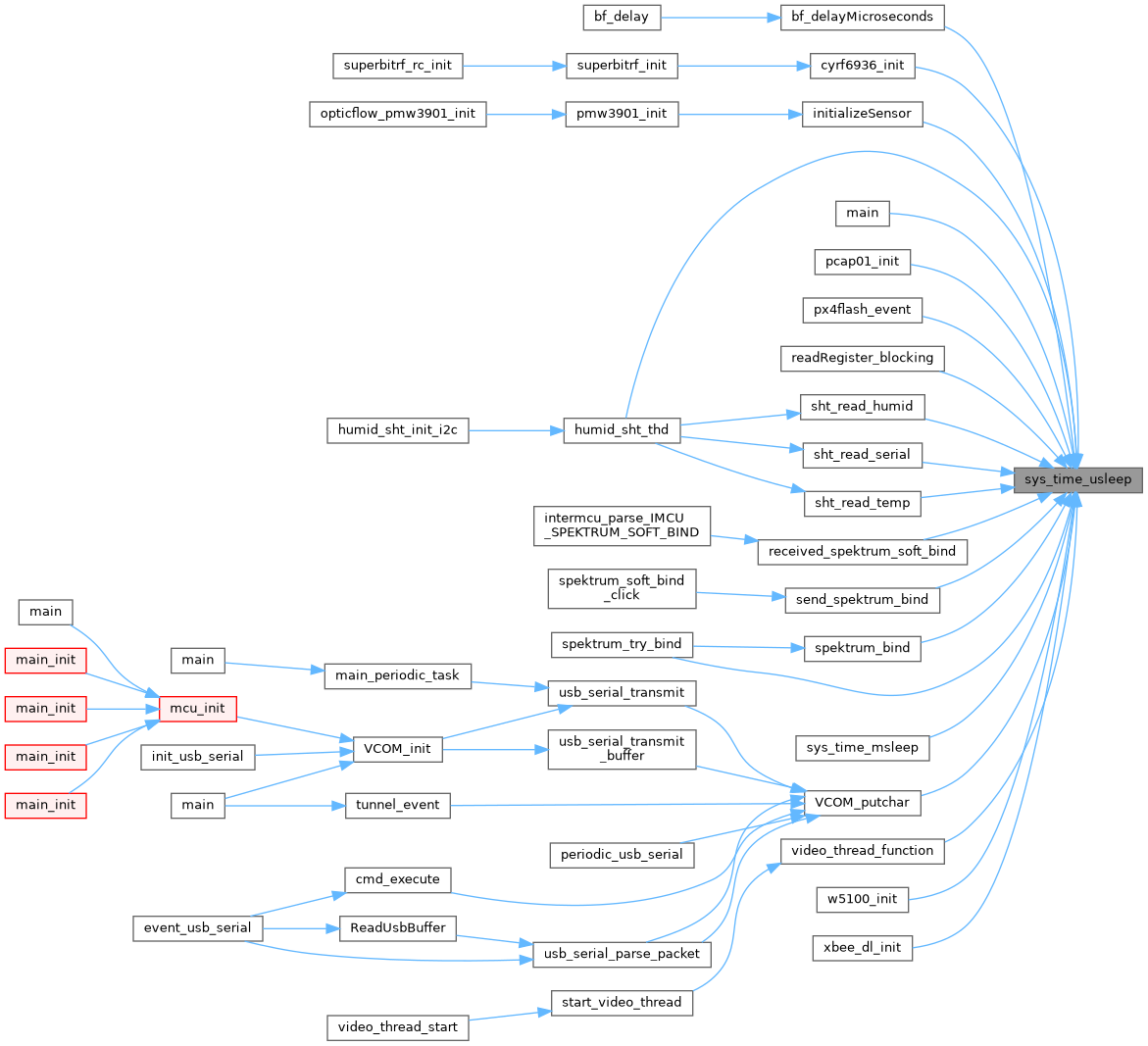

Here is the caller graph for this function:

usec_of_cpu_ticks()

static uint32_t usec_of_cpu_ticks ( uint32_t  cpu_ticks )

inlinestatic

Definition at line 243 of file sys_time.h.

References cpu_ticks, and sys_time::cpu_ticks_per_sec.

Referenced by get_sys_time_usec(), and get_sys_time_usec100().

Here is the caller graph for this function:

usec_of_sys_time_ticks()

static uint32_t usec_of_sys_time_ticks ( uint32_t  ticks )

inlinestatic

Definition at line 208 of file sys_time.h.

References ticks, and sys_time::ticks_per_sec.

Variable Documentation

sys_time

struct sys_time sys_time

extern

Definition at line 41 of file sys_time.c.
