circular_buffer.h File Reference

#include <stdint.h>
#include <stddef.h>

Include dependency graph for circular_buffer.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	circular_buffer
	This is a general purpose circular buffer for storing variable lenght buffers in a FIFO order. More...

Enumerations
enum	cir_error { CIR_ERROR_NO_MSG = -1 , CIR_ERROR_BUFFER_TOO_SMALL = -2 , CIR_ERROR_NO_SPACE_AVAILABLE = -3 , CIR_ERROR_LOCKED = -4 }

Functions
void	circular_buffer_init (struct circular_buffer *cb, uint8_t *buffer, size_t len)
	initialize a circular buffer.
int	circular_buffer_get (struct circular_buffer *cb, uint8_t *buf, size_t len)
	copy the next buffer available in cb to buf.
int	circular_buffer_put (struct circular_buffer *cb, const uint8_t *buf, size_t len)
	Copy buf in the circular buffer.
int	circular_buffer_drop (struct circular_buffer *cb)
	Drop last inserted record.
size_t	circular_buffer_available (struct circular_buffer *cb)
	Get the available sapce for the next buffer.
void	circular_buffer_clear (struct circular_buffer *cb)
	Clear buffer.

---

Data Structure Documentation

circular_buffer

struct circular_buffer

This is a general purpose circular buffer for storing variable lenght buffers in a FIFO order.

Buffers length are stored as uint16_t.

Declare a circular_buffer and allocate a buffer that will outlive it. Initialize the circular_buffer using circular_buffer_init.

Definition at line 23 of file circular_buffer.h.

Data Fields
uint8_t *	_buf
size_t	_buf_len
size_t	read_offset
size_t	write_offset

Enumeration Type Documentation

cir_error

enum cir_error

Enumerator
CIR_ERROR_NO_MSG	circular buffer is empty
CIR_ERROR_BUFFER_TOO_SMALL	destination buffer is too small
CIR_ERROR_NO_SPACE_AVAILABLE	no space available in the circular buffer
CIR_ERROR_LOCKED	mutex locked

Definition at line 30 of file circular_buffer.h.

Function Documentation

circular_buffer_available()

size_t circular_buffer_available

(

struct circular_buffer *

cb

)

Get the available sapce for the next buffer.

Definition at line 110 of file circular_buffer.c.

References circular_buffer::_buf_len, foo, circular_buffer::read_offset, and circular_buffer::write_offset.

Referenced by circular_buffer_put().

Here is the caller graph for this function:

circular_buffer_clear()

void circular_buffer_clear

(

struct circular_buffer *

cb

)

Clear buffer.

Definition at line 122 of file circular_buffer.c.

References circular_buffer::read_offset, and circular_buffer::write_offset.

circular_buffer_drop()

int circular_buffer_drop

(

struct circular_buffer *

cb

)

Drop last inserted record.

Definition at line 90 of file circular_buffer.c.

References circular_buffer::_buf, circular_buffer::_buf_len, CIR_ERROR_NO_MSG, foo, circular_buffer::read_offset, and circular_buffer::write_offset.

Referenced by uavcan_broadcast().

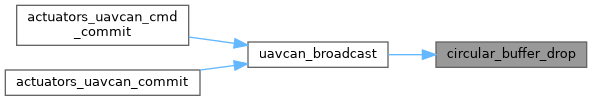

Here is the caller graph for this function:

circular_buffer_get()

int circular_buffer_get	(	struct circular_buffer *	cb,
		uint8_t *	buf,
		size_t	len
	)

copy the next buffer available in cb to buf.

Parameters

cb	The circular buffer
buf	destination buffer
len	size of buf

Returns

Size of the data copied to buf, or an error code if negative.

Definition at line 22 of file circular_buffer.c.

References circular_buffer::_buf, circular_buffer::_buf_len, CIR_ERROR_BUFFER_TOO_SMALL, CIR_ERROR_NO_MSG, foo, circular_buffer::read_offset, and circular_buffer::write_offset.

Referenced by sts3032_event(), and uavcan_tx().

Here is the caller graph for this function:

circular_buffer_init()

void circular_buffer_init	(	struct circular_buffer *	cb,
		uint8_t *	buffer,
		size_t	len
	)

initialize a circular buffer.

Parameters

cb	circular_buffer structure
buffer	buffer used internally by the circular buffer
len	size of buffer

Definition at line 13 of file circular_buffer.c.

References circular_buffer::_buf, circular_buffer::_buf_len, circular_buffer::read_offset, and circular_buffer::write_offset.

Referenced by actuators_sts3032_init(), and uavcanInitIface().

Here is the caller graph for this function:

circular_buffer_put()

int circular_buffer_put	(	struct circular_buffer *	cb,
		const uint8_t *	buf,
		size_t	len
	)

Copy buf in the circular buffer.

Parameters

cb	The circular buffer
buf	source buffer
len	Size of buf

Returns

0 on success, Error code if negative

Definition at line 52 of file circular_buffer.c.

References circular_buffer::_buf, circular_buffer::_buf_len, CIR_ERROR_NO_SPACE_AVAILABLE, circular_buffer_available(), foo, and circular_buffer::write_offset.

Referenced by uavcan_broadcast(), and write_buf().

Here is the call graph for this function:

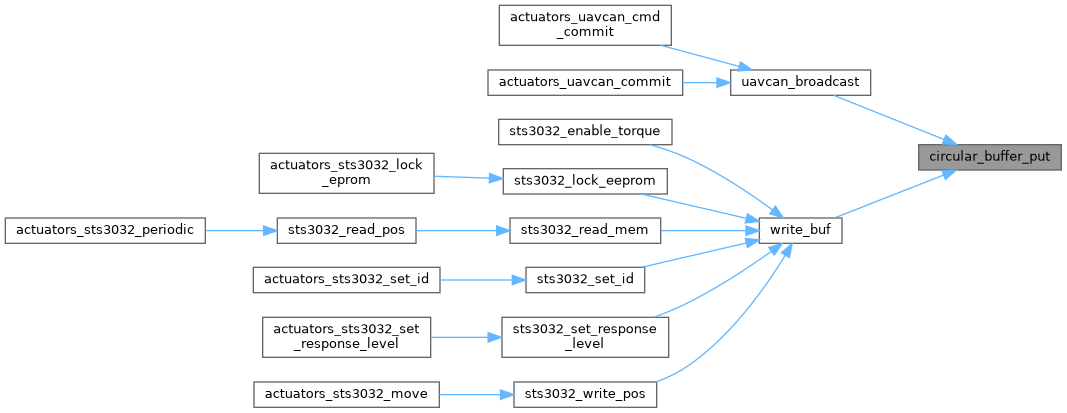

Here is the caller graph for this function:
