Collaboration diagram for I2C Interface:

Data Structures
struct	i2c_transaction
	I2C transaction structure. More...

struct	i2c_periph

struct	i2c_errors
	I2C errors counter. More...

Macros
#define	I2C_BUF_LEN 32
	I2C buffer length. More...

#define	I2C_TRANSACTION_QUEUE_LEN 8
	I2C transaction queue length. More...

#define	ZEROS_ERR_COUNTER(_i2c_err)

Typedefs
typedef bool	i2c_idle_fn_t(struct i2c_periph *p)

typedef bool	i2c_submit_fn_t(struct i2c_periph p, struct i2c_transaction t)

typedef void	i2c_setbitrate_fn_t(struct i2c_periph *p, int bitrate)

typedef void	i2c_spin_fn_t(struct i2c_periph *p)

Enumerations
enum	I2CTransactionType { I2CTransTx , I2CTransRx , I2CTransTxRx }
	I2C transaction type. More...

enum	I2CTransactionStatus { I2CTransPending , I2CTransRunning , I2CTransSuccess , I2CTransFailed , I2CTransDone }
	I2C transaction status. More...

enum	I2CStatus { I2CIdle , I2CStartRequested , I2CAddrWrSent , I2CAddrRdSent , I2CSendingByte , I2CReadingByte , I2CReadingLastByte , I2CStopRequested , I2CRestartRequested , I2CComplete , I2CFailed }
	I2C peripheral status. More...

Functions
void	i2c_init (struct i2c_periph *p)
	Initialize I2C peripheral. More...

static bool	i2c_idle (struct i2c_periph *p)
	Check if I2C bus is idle. More...

static bool	i2c_submit (struct i2c_periph p, struct i2c_transaction t)
	Submit a I2C transaction. More...

static void	i2c_setbitrate (struct i2c_periph *p, int bitrate)
	Set I2C bitrate. More...

void	i2c_event (void)
	i2c_event() function More...

bool	i2c_transmit (struct i2c_periph p, struct i2c_transaction t, uint8_t s_addr, uint8_t len)
	Submit a write only transaction. More...

bool	i2c_receive (struct i2c_periph p, struct i2c_transaction t, uint8_t s_addr, uint16_t len)
	Submit a read only transaction. More...

bool	i2c_transceive (struct i2c_periph p, struct i2c_transaction t, uint8_t s_addr, uint8_t len_w, uint16_t len_r)
	Submit a write/read transaction. More...

bool	i2c_blocking_transmit (struct i2c_periph p, struct i2c_transaction t, uint8_t s_addr, uint8_t len)
	Submit a write only transaction and wait for it to complete. More...

bool	i2c_blocking_receive (struct i2c_periph p, struct i2c_transaction t, uint8_t s_addr, uint16_t len)
	Submit a read only transaction and wait for it to complete. More...

bool	i2c_blocking_transceive (struct i2c_periph p, struct i2c_transaction t, uint8_t s_addr, uint8_t len_w, uint16_t len_r)
	Submit a write/read transaction and wait for it to complete. More...

Detailed Description

Data Structure Documentation

◆ i2c_transaction

struct i2c_transaction

I2C transaction structure.

Use this structure to store a request of I2C transaction and submit it using one of the convenience functions (i2c_receive, i2c_transmit or i2c_transceive) or the i2c_submit function.

Definition at line 93 of file i2c.h.

Data Fields
volatile uint8_t	buf[I2C_BUF_LEN]	Transaction buffer With I2C_BUF_LEN number of bytes. Must be able to hold tranmitted + received bytes.
uint16_t	len_r	Number of bytes to read/receive. Always set by i2c_receive, i2c_transmit and i2c_transceive, needs to be manually set if using i2c_submit.
uint8_t	len_w	Number of bytes to write/transmit. Always set by i2c_receive, i2c_transmit and i2c_transceive, needs to be manually set if using i2c_submit.
uint8_t	slave_addr	Slave address. Always set by i2c_receive, i2c_transmit and i2c_transceive, needs to be manually set if using i2c_submit.
enum I2CTransactionStatus	status	Transaction status.
enum I2CTransactionType	type	Transaction type. Always set by i2c_receive, i2c_transmit and i2c_transceive, needs to be manually set every time if using i2c_submit.

◆ i2c_periph

struct i2c_periph

Definition at line 144 of file i2c.h.

Collaboration diagram for i2c_periph:

Data Fields
struct i2c_errors *	errors
i2c_idle_fn_t *	idle
volatile uint8_t	idx_buf
void *	init_struct
void *	reg_addr
i2c_setbitrate_fn_t *	setbitrate
i2c_spin_fn_t *	spin
enum I2CStatus	status
i2c_submit_fn_t *	submit
struct i2c_transaction *	trans[I2C_TRANSACTION_QUEUE_LEN]
uint8_t	trans_extract_idx
uint8_t	trans_insert_idx
volatile int16_t	watchdog

◆ i2c_errors

struct i2c_errors

I2C errors counter.

Definition at line 165 of file i2c.h.

Data Fields
volatile uint16_t	ack_fail_cnt
volatile uint16_t	arb_lost_cnt
volatile uint32_t	er_irq_cnt
volatile uint32_t	last_unexpected_event
volatile uint16_t	miss_start_stop_cnt
volatile uint16_t	over_under_cnt
volatile uint16_t	pec_recep_cnt
volatile uint16_t	queue_full_cnt
volatile uint16_t	smbus_alert_cnt
volatile uint16_t	timeout_tlow_cnt
volatile uint16_t	unexpected_event_cnt
volatile uint16_t	wd_reset_cnt

Macro Definition Documentation

◆ I2C_BUF_LEN

#define I2C_BUF_LEN 32

I2C buffer length.

Number of bytes a transaction can hold.

Definition at line 84 of file i2c.h.

◆ I2C_TRANSACTION_QUEUE_LEN

#define I2C_TRANSACTION_QUEUE_LEN 8

I2C transaction queue length.

Number of transactions that can be queued.

Definition at line 133 of file i2c.h.

◆ ZEROS_ERR_COUNTER

#define ZEROS_ERR_COUNTER ( _i2c_err )

Value:

    {     \
    _i2c_err.wd_reset_cnt = 0;            \
    _i2c_err.queue_full_cnt = 0;          \
    _i2c_err.ack_fail_cnt = 0;            \
    _i2c_err.miss_start_stop_cnt = 0;     \
    _i2c_err.arb_lost_cnt = 0;            \
    _i2c_err.over_under_cnt = 0;          \
    _i2c_err.pec_recep_cnt = 0;           \
    _i2c_err.timeout_tlow_cnt = 0;        \
    _i2c_err.smbus_alert_cnt = 0;         \
    _i2c_err.unexpected_event_cnt = 0;    \
    _i2c_err.last_unexpected_event = 0;   \
    _i2c_err.er_irq_cnt = 0;              \
  }

Definition at line 181 of file i2c.h.

Typedef Documentation

◆ i2c_idle_fn_t

typedef bool i2c_idle_fn_t(struct i2c_periph *p)

Definition at line 139 of file i2c.h.

◆ i2c_setbitrate_fn_t

typedef void i2c_setbitrate_fn_t(struct i2c_periph *p, int bitrate)

Definition at line 141 of file i2c.h.

◆ i2c_spin_fn_t

typedef void i2c_spin_fn_t(struct i2c_periph *p)

Definition at line 142 of file i2c.h.

◆ i2c_submit_fn_t

typedef bool i2c_submit_fn_t(struct i2c_periph *p, struct i2c_transaction *t)

Definition at line 140 of file i2c.h.

Enumeration Type Documentation

◆ I2CStatus

enum I2CStatus

I2C peripheral status.

Used by each architecture specifc implementation.

Enumerator
I2CIdle
I2CStartRequested
I2CAddrWrSent
I2CAddrRdSent
I2CSendingByte
I2CReadingByte
I2CReadingLastByte
I2CStopRequested
I2CRestartRequested
I2CComplete
I2CFailed

Definition at line 65 of file i2c.h.

◆ I2CTransactionStatus

enum I2CTransactionStatus

I2C transaction status.

Enumerator
I2CTransPending	transaction is pending in queue
I2CTransRunning	transaction is currently ongoing
I2CTransSuccess	transaction successfully finished by I2C driver
I2CTransFailed	transaction failed
I2CTransDone	transaction set to done by user level

Definition at line 54 of file i2c.h.

◆ I2CTransactionType

enum I2CTransactionType

I2C transaction type.

Enumerator
I2CTransTx	transmit only transaction
I2CTransRx	receive only transaction
I2CTransTxRx	transmit and receive transaction

Definition at line 46 of file i2c.h.

Function Documentation

◆ i2c_blocking_receive()

bool i2c_blocking_receive	(	struct i2c_periph *	p,
		struct i2c_transaction *	t,
		uint8_t	s_addr,
		uint16_t	len
	)

Submit a read only transaction and wait for it to complete.

Convenience function which is usually preferred over i2c_submit, as it explicitly sets the transaction type again.

Parameters

p	i2c peripheral to be used
t	i2c transaction
s_addr	slave address
len	number of bytes to receive

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 381 of file i2c.c.

References get_sys_time_float(), I2C_BLOCKING_TIMEOUT, i2c_submit(), I2CTransPending, I2CTransRunning, I2CTransRx, i2c_transaction::len_r, i2c_transaction::len_w, p, i2c_transaction::slave_addr, i2c_transaction::status, and i2c_transaction::type.

Here is the call graph for this function:

◆ i2c_blocking_transceive()

bool i2c_blocking_transceive	(	struct i2c_periph *	p,
		struct i2c_transaction *	t,
		uint8_t	s_addr,
		uint8_t	len_w,
		uint16_t	len_r
	)

Submit a write/read transaction and wait for it to complete.

Convenience function which is usually preferred over i2c_submit, as it explicitly sets the transaction type again.

Parameters

p	i2c peripheral to be used
t	i2c transaction
s_addr	slave address
len_w	number of bytes to transmit
len_r	number of bytes to receive

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 403 of file i2c.c.

References get_sys_time_float(), I2C_BLOCKING_TIMEOUT, i2c_submit(), I2CTransPending, I2CTransRunning, I2CTransTxRx, i2c_transaction::len_r, i2c_transaction::len_w, p, i2c_transaction::slave_addr, i2c_transaction::status, and i2c_transaction::type.

Referenced by actuators_bebop_commit(), actuators_disco_commit(), pca95xx_get_input(), read_reg(), tfmini_i2c_periodic(), and VL53L1_ReadMulti().

Here is the call graph for this function:

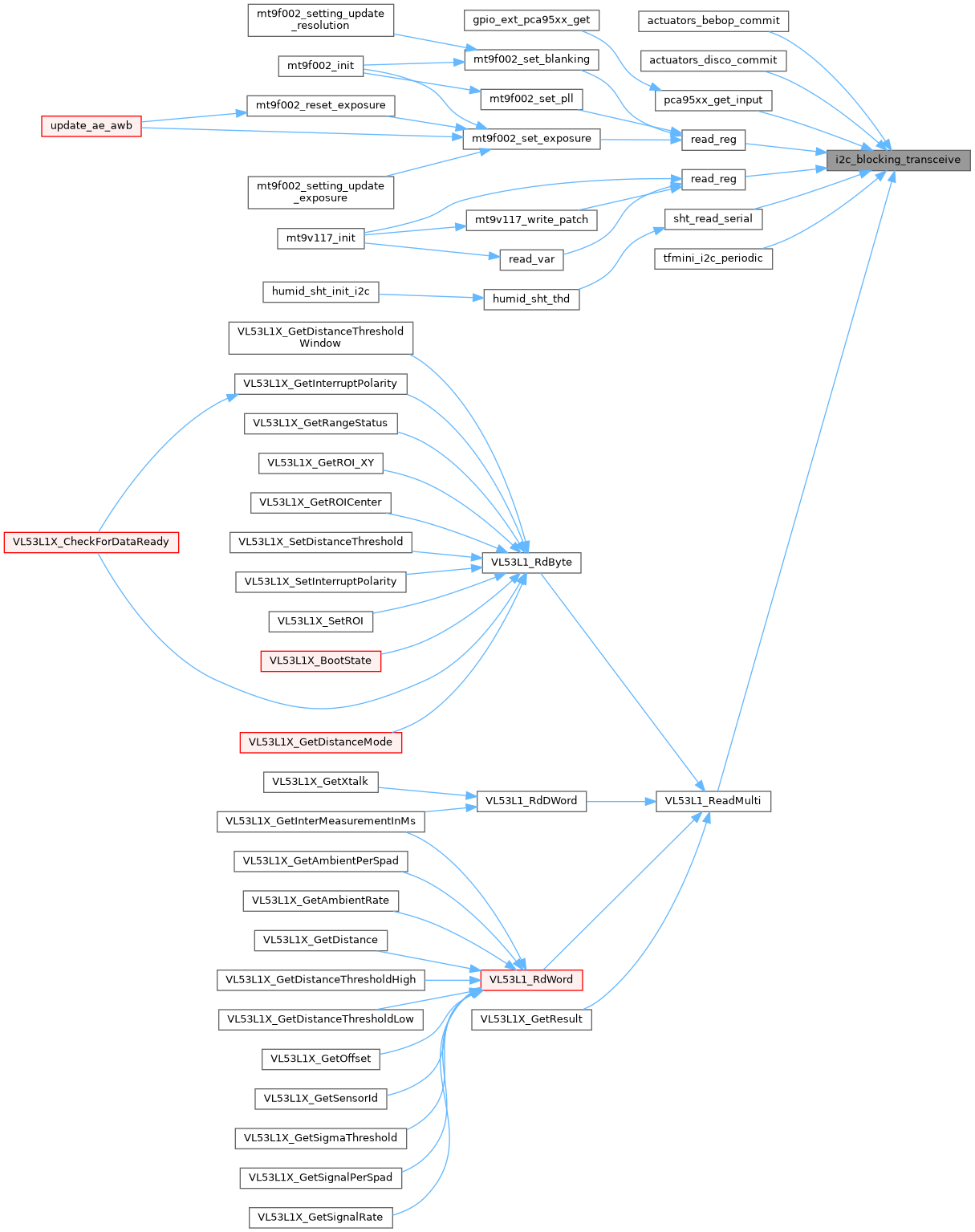

Here is the caller graph for this function:

◆ i2c_blocking_transmit()

bool i2c_blocking_transmit	(	struct i2c_periph *	p,
		struct i2c_transaction *	t,
		uint8_t	s_addr,
		uint8_t	len
	)

Submit a write only transaction and wait for it to complete.

Convenience function which is usually preferred over i2c_submit, as it explicitly sets the transaction type again.

Parameters

p	i2c peripheral to be used
t	i2c transaction
s_addr	slave address
len	number of bytes to transmit

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 359 of file i2c.c.

References get_sys_time_float(), I2C_BLOCKING_TIMEOUT, i2c_submit(), I2CTransPending, I2CTransRunning, I2CTransTx, i2c_transaction::len_r, i2c_transaction::len_w, p, i2c_transaction::slave_addr, i2c_transaction::status, and i2c_transaction::type.

Referenced by actuators_bebop_commit(), actuators_disco_commit(), mt9v117_write_patch(), pca95xx_configure(), pca95xx_set_output(), VL53L1_WriteMulti(), and write_reg().

Here is the call graph for this function:

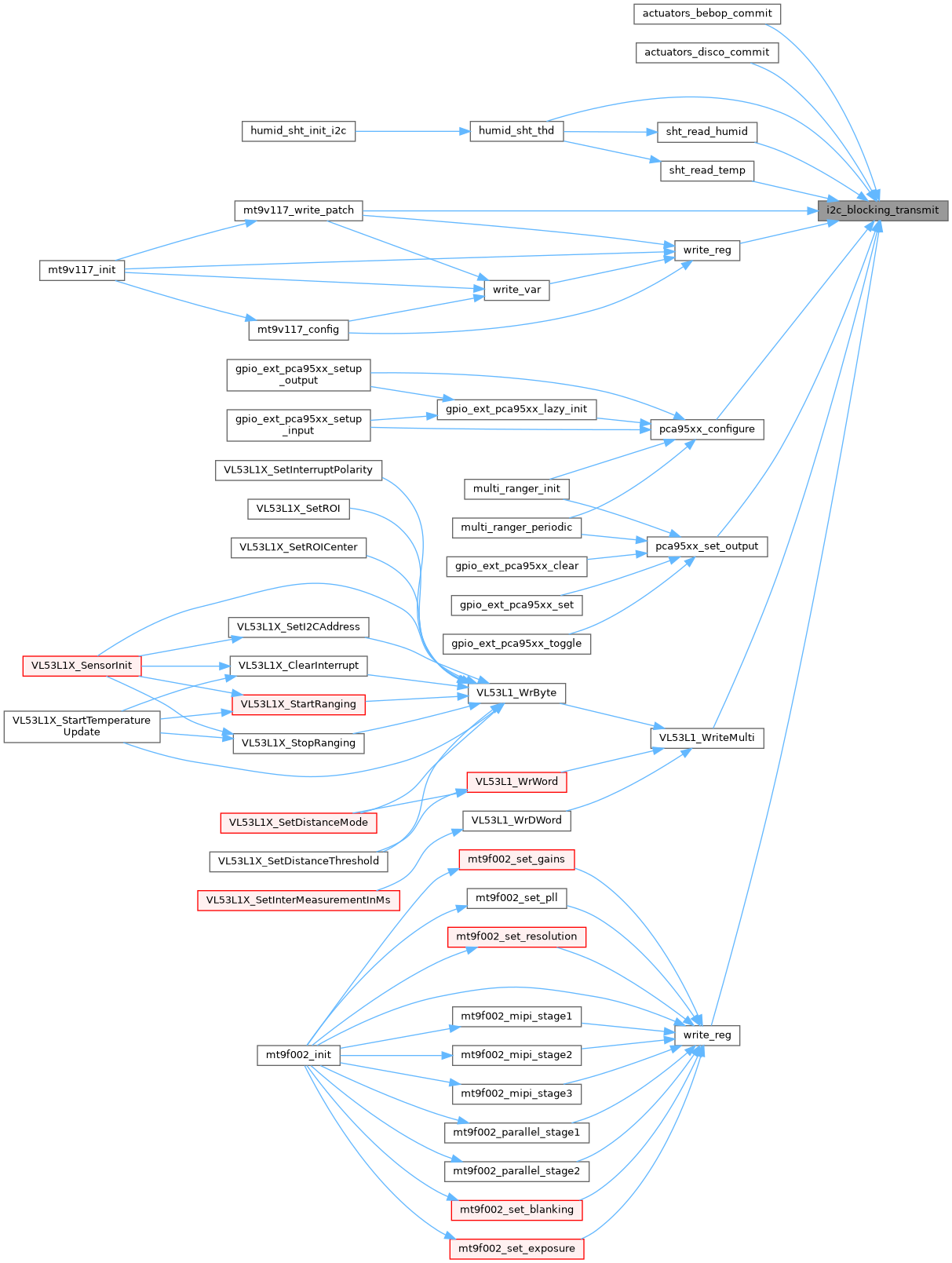

Here is the caller graph for this function:

◆ i2c_event()

void i2c_event ( void )

i2c_event() function

Empty, for paparazzi compatibility only

Definition at line 393 of file i2c_arch.c.

References SysTimeTimer, and SysTimeTimerStart.

Referenced by mcu_event().

Here is the caller graph for this function:

◆ i2c_idle()

static bool i2c_idle ( struct i2c_periph * p )

inlinestatic

Check if I2C bus is idle.

Parameters

p	i2c peripheral to be used

Returns: TRUE if idle

Definition at line 256 of file i2c.h.

References p.

Referenced by baro_periodic(), event_i2c_abuse_test(), hmc5843_idle_task(), hmc5843_periodic(), and i2c_stm32_setbitrate().

Here is the caller graph for this function:

◆ i2c_init()

void i2c_init ( struct i2c_periph * p )

Initialize I2C peripheral.

Definition at line 310 of file i2c.c.

References DefaultPeriodic, I2CIdle, p, register_periodic_telemetry(), and send_i2c_err().

Referenced by i2c_chibios_submit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ i2c_receive()

bool i2c_receive	(	struct i2c_periph *	p,
		struct i2c_transaction *	t,
		uint8_t	s_addr,
		uint16_t	len
	)

Submit a read only transaction.

Convenience function which is usually preferred over i2c_submit, as it explicitly sets the transaction type again.

Parameters

p	i2c peripheral to be used
t	i2c transaction
s_addr	slave address
len	number of bytes to receive

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 334 of file i2c.c.

References i2c_submit(), I2CTransRx, i2c_transaction::len_r, i2c_transaction::len_w, p, i2c_transaction::slave_addr, and i2c_transaction::type.

Referenced by airspeed_amsys_read_periodic(), airspeed_ets_read_periodic(), ArduIMU_periodic(), baro_amsys_read_periodic(), baro_ets_read_periodic(), baro_hca_read_periodic(), charge_sens_periodic(), dpicco_periodic(), dust_gp2y_periodic(), ezcurrent_read_periodic(), geiger_counter_periodic(), humid_htm_read(), humid_sht_p_humid(), humid_sht_p_temp(), lidar_lite_periodic(), MPPT_periodic(), ms45xx_i2c_periodic(), sdp3x_periodic(), srf08_read(), temod_periodic(), teraranger_periodic(), and wind_gfi_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ i2c_setbitrate()

static void i2c_setbitrate	(	struct i2c_periph *	p,
		int	bitrate
	)

inlinestatic

Set I2C bitrate.

Parameters

p	i2c peripheral to be used
bitrate	bitrate

Definition at line 274 of file i2c.h.

References p.

Referenced by event_i2c_abuse_test().

Here is the caller graph for this function:

◆ i2c_submit()

static bool i2c_submit	(	struct i2c_periph *	p,
		struct i2c_transaction *	t
	)

inlinestatic

Submit a I2C transaction.

Must be implemented by the underlying architecture

Parameters

p	i2c peripheral to be used
t	i2c transaction

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 266 of file i2c.h.

References p.

Referenced by actuators_asctec_v2_set(), adxl345_i2c_read(), adxl345_i2c_tx_reg(), ami601_read(), baro_board_read_from_register(), baro_board_send_reset(), baro_board_set_current_register(), baro_board_write_to_register(), event_i2c_abuse_test(), hmc5843_idle_task(), hmc5843_periodic(), hmc58xx_i2c_tx_reg(), hmc58xx_read(), i2c_abuse_send_transaction(), i2c_blocking_receive(), i2c_blocking_transceive(), i2c_blocking_transmit(), i2c_receive(), i2c_transceive(), i2c_transmit(), itg3200_i2c_tx_reg(), itg3200_read(), lps25h_i2c_read(), lps25h_i2c_tx_reg(), lsm303dlhc_i2c_read(), lsm303dlhc_i2c_tx_reg(), lsm6_i2c_read(), lsm6_i2c_tx_reg(), and send_config().

Here is the caller graph for this function:

◆ i2c_transceive()

bool i2c_transceive	(	struct i2c_periph *	p,
		struct i2c_transaction *	t,
		uint8_t	s_addr,
		uint8_t	len_w,
		uint16_t	len_r
	)

Submit a write/read transaction.

Convenience function which is usually preferred over i2c_submit, as it explicitly sets the transaction type again.

Parameters

p	i2c peripheral to be used
t	i2c transaction
s_addr	slave address
len_w	number of bytes to transmit
len_r	number of bytes to receive

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 344 of file i2c.c.

References i2c_submit(), I2CTransTxRx, i2c_transaction::len_r, i2c_transaction::len_w, p, i2c_transaction::slave_addr, and i2c_transaction::type.

Referenced by actuators_md25_periodic(), ads1114_read(), ak8963_event(), ak8963_read(), ak8975_configure(), ak8975_event(), atmega_i2c_cam_ctrl_send(), baro_scp_event(), baro_scp_periodic(), battery_monitor_read_balance_ports(), battery_monitor_read_bus(), bmi088_i2c_read(), bmp085_periodic(), bmp085_read_eeprom_calib(), bmp280_register_read(), bmp3_i2c_periodic(), gps_ubx_i2c_periodic(), gps_ubx_i2c_read_event(), humid_sht_event_i2c(), humid_sht_periodic_i2c(), invensense2_register_read(), invensense3_register_read(), ir_mlx_event(), ir_mlx_periodic(), ist8310_event(), ist8310_read(), l3g4200_read(), lidar_sf11_periodic(), lis3mdl_read(), lm75_periodic(), mpl3115_read(), mpu60x0_i2c_read(), mpu9250_i2c_read(), ms5611_i2c_event(), ms5611_i2c_periodic_check(), pca9685_i2c_event(), pca9685_i2c_init(), pcap01readRegister(), px4flow_i2c_periodic(), qmc5883l_read(), readPCAP01_SRAM(), rm3100_read(), srf08_read_register(), tmp102_periodic(), and VL53L1_NonBlocking_ReadMulti().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ i2c_transmit()

bool i2c_transmit	(	struct i2c_periph *	p,
		struct i2c_transaction *	t,
		uint8_t	s_addr,
		uint8_t	len
	)

Submit a write only transaction.

Convenience function which is usually preferred over i2c_submit, as it explicitly sets the transaction type again.

Parameters

p	i2c peripheral to be used
t	i2c transaction
s_addr	slave address
len	number of bytes to transmit

Returns: TRUE if insertion to the transaction queue succeeded

Definition at line 324 of file i2c.c.

References i2c_submit(), I2CTransTx, i2c_transaction::len_r, i2c_transaction::len_w, p, i2c_transaction::slave_addr, and i2c_transaction::type.

Referenced by actuators_md25_periodic(), actuators_md25_set(), ads1114_init(), ak8963_configure(), ak8975_configure(), ak8975_read(), ArduIMU_periodicGPS(), baro_scp_start_high_res_measurement(), bmi088_i2c_write_to_reg(), bmp085_event(), bmp085_periodic(), bmp280_register_write(), bmp3_i2c_periodic(), generic_com_periodic(), gps_ubx_i2c_periodic(), humid_htm_start(), humid_sht_event_i2c(), humid_sht_periodic_i2c(), invensense2_register_write(), invensense2_select_bank(), invensense3_register_write(), invensense3_select_bank(), ir_mlx_periodic(), ist8310_configure(), l3g4200_i2c_tx_reg(), lidar_lite_periodic(), lis3mdl_configure(), mpl3115_read(), mpl3115_send_config(), MPPT_ask(), MPPT_periodic(), mpu60x0_i2c_write_to_reg(), mpu9250_i2c_write_to_reg(), ms5611_i2c_event(), ms5611_i2c_start_configure(), ms5611_i2c_start_conversion(), pca95xx_configure(), pca95xx_set_output(), pca9685_i2c_init(), pca9685_i2c_periodic(), PCAP01_Control(), pcap01writeRegister(), px4flow_i2c_periodic(), qmc5883l_configure(), rm3100_configure(), sdp3x_periodic(), srf08_init(), srf08_initiate_ranging(), srf08_receive(), stop_com(), tmp102_init(), VL53L1_NonBlocking_WriteMulti(), wind_gfi_event(), wind_gfi_periodic(), and writePCAP01_SRAM().

Here is the call graph for this function:

Data Structures

Macros

Typedefs

Enumerations

Functions

Detailed Description

Data Structure Documentation

◆ i2c_transaction

◆ i2c_periph

◆ i2c_errors

Macro Definition Documentation

◆ I2C_BUF_LEN

◆ I2C_TRANSACTION_QUEUE_LEN

◆ ZEROS_ERR_COUNTER

Typedef Documentation

◆ i2c_idle_fn_t

◆ i2c_setbitrate_fn_t

◆ i2c_spin_fn_t

◆ i2c_submit_fn_t

Enumeration Type Documentation

◆ I2CStatus

◆ I2CTransactionStatus

◆ I2CTransactionType

Function Documentation

◆ i2c_blocking_receive()

◆ i2c_blocking_transceive()

◆ i2c_blocking_transmit()

◆ i2c_event()

◆ i2c_idle()

◆ i2c_init()

◆ i2c_receive()

◆ i2c_setbitrate()

◆ i2c_submit()

◆ i2c_transceive()

◆ i2c_transmit()
