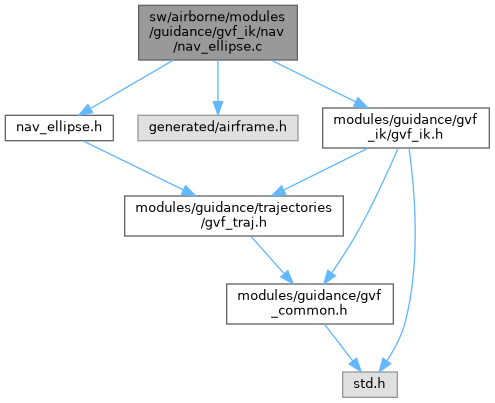

#include "nav_ellipse.h"#include "generated/airframe.h"#include "modules/guidance/gvf_ik/gvf_ik.h"Go to the source code of this file.
Macros | |
| #define | GVF_IK_ELLIPSE_KE 1 |
| #define | GVF_IK_ELLIPSE_KN 1 |
| #define | GVF_IK_ELLIPSE_A 80 |
| #define | GVF_IK_ELLIPSE_B 80 |
| #define | GVF_IK_ELLIPSE_ALPHA 0 |
Functions | |
| bool | nav_gvf_ik_ellipse_XY (float x, float y, float a, float b, float alpha) |
| bool | nav_gvf_ik_ellipse_wp (uint8_t wp, float a, float b, float alpha) |
Variables | |
| gvf_ik_ell_par | gvf_ik_ellipse_par |
| static int | gvf_p_len_wps = 0 |
| #define GVF_IK_ELLIPSE_A 80 |
Default first axis for the ellipse trajectory
Definition at line 40 of file nav_ellipse.c.
| #define GVF_IK_ELLIPSE_ALPHA 0 |
Default orientation in degrees for the ellipse trajectory
Definition at line 50 of file nav_ellipse.c.
| #define GVF_IK_ELLIPSE_B 80 |
Default second axis for the ellipse trajectory
Definition at line 45 of file nav_ellipse.c.
| #define GVF_IK_ELLIPSE_KE 1 |
Default gain ke for the ellipse trajectory
Definition at line 30 of file nav_ellipse.c.
| #define GVF_IK_ELLIPSE_KN 1 |
Default gain kn for the ellipse trajectory
Definition at line 35 of file nav_ellipse.c.

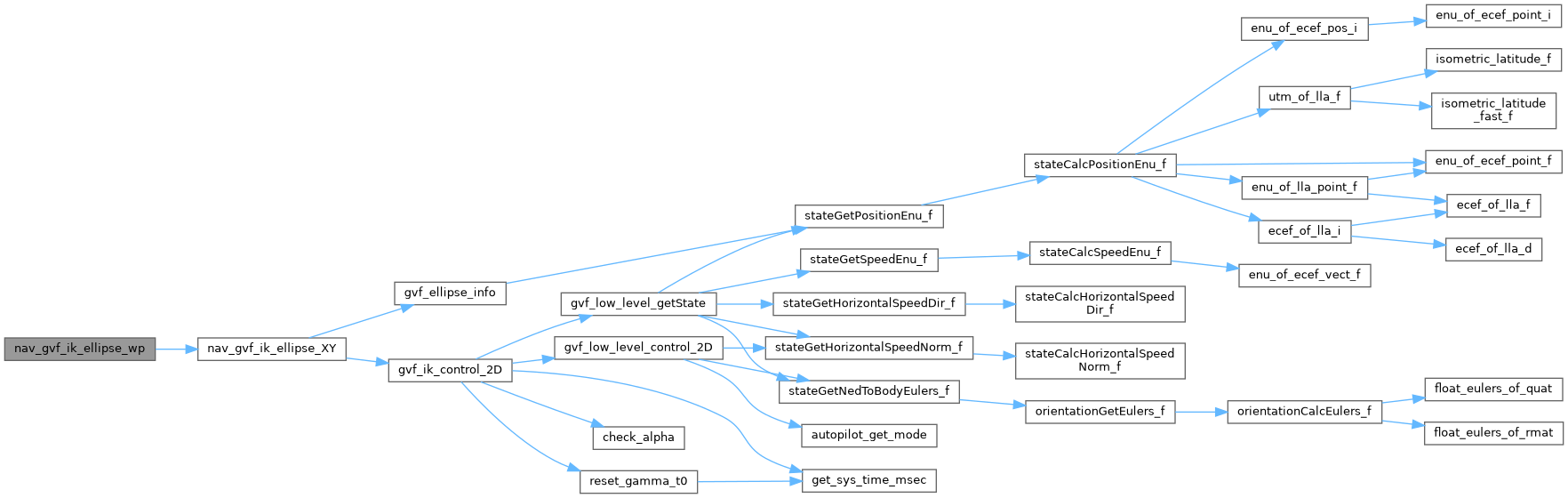

| bool nav_gvf_ik_ellipse_wp | ( | uint8_t | wp, |
| float | a, | ||
| float | b, | ||
| float | alpha ) |
Definition at line 103 of file nav_ellipse.c.
References alpha, b, gvf_p_len_wps, gvf_trajectory, nav_gvf_ik_ellipse_XY(), WaypointX, and WaypointY.

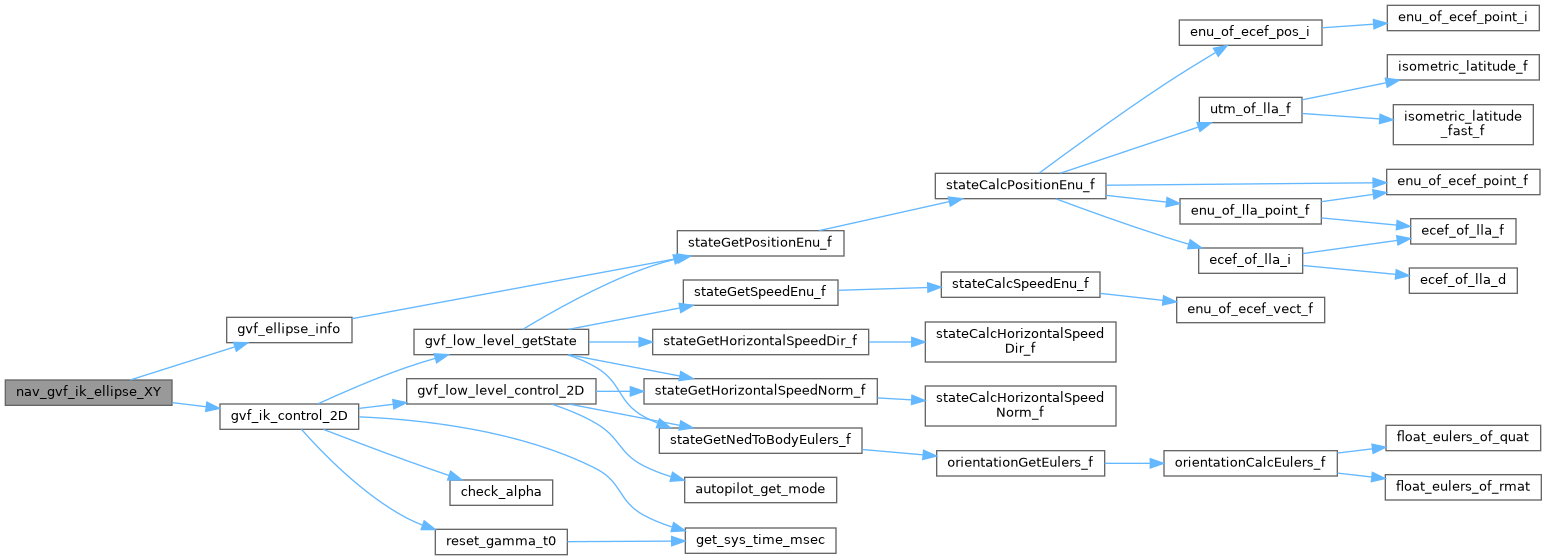

| bool nav_gvf_ik_ellipse_XY | ( | float | x, |
| float | y, | ||
| float | a, | ||
| float | b, | ||
| float | alpha ) |
Definition at line 64 of file nav_ellipse.c.
References alpha, b, gvf_ellipse_info(), gvf_ik_control, gvf_ik_control_2D(), gvf_ik_ellipse_par, gvf_p_len_wps, and gvf_trajectory.
Referenced by nav_gvf_ik_ellipse_wp().
| gvf_ik_ell_par gvf_ik_ellipse_par |
Definition at line 53 of file nav_ellipse.c.
Referenced by nav_gvf_ik_ellipse_XY().
|
static |
Definition at line 58 of file nav_ellipse.c.
