baro_dps310.h File Reference

Infineon DPS310 I2C sensor interface. More...

#include "peripherals/dps310_i2c.h"

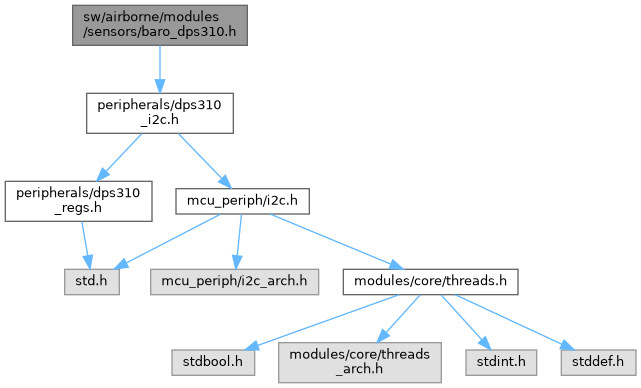

Include dependency graph for baro_dps310.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	baro_dps310_init (void)
void	baro_dps310_periodic (void)
void	baro_dps310_event (void)

Variables
struct Dps310_I2c	baro_dps310

Detailed Description

Infineon DPS310 I2C sensor interface.

This code reads the values for pressure and temperature from the Infineon DPS310 sensor over I2C.

Definition in file baro_dps310.h.

Function Documentation

baro_dps310_event()

void baro_dps310_event

(

void

)

Definition at line 55 of file baro_dps310.c.

References baro_dps310, BARO_DPS310_SENDER_ID, Dps310_I2c::data_available, DefaultChannel, DefaultDevice, dps310_i2c_event(), foo, get_sys_time_usec(), Dps310_I2c::pressure, Dps310_I2c::raw_pressure, Dps310_I2c::raw_temperature, and Dps310_I2c::temperature.

Here is the call graph for this function:

baro_dps310_init()

void baro_dps310_init

(

void

)

Definition at line 45 of file baro_dps310.c.

References baro_dps310, dps310_i2c_init(), DPS310_SLAVE_ADDR, and foo.

Here is the call graph for this function:

baro_dps310_periodic()

void baro_dps310_periodic

(

void

)

Definition at line 50 of file baro_dps310.c.

References baro_dps310, and dps310_i2c_periodic().

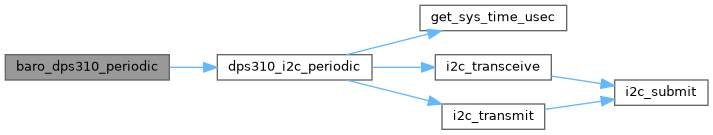

Here is the call graph for this function:

Variable Documentation

baro_dps310

struct Dps310_I2c baro_dps310

extern

Definition at line 43 of file baro_dps310.c.

Referenced by baro_dps310_event(), baro_dps310_init(), and baro_dps310_periodic().
