dps310_i2c.h File Reference

Driver for the Infineon DPS310 barometer (I2C) More...

#include "peripherals/dps310_regs.h"
#include "mcu_periph/i2c.h"

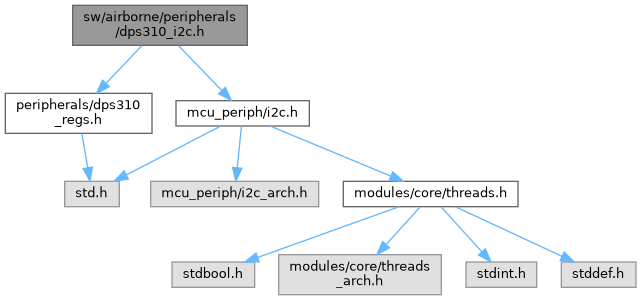

Include dependency graph for dps310_i2c.h:

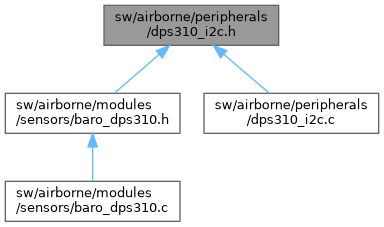

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Dps310_I2c

Enumerations
enum	Dps310Status {   DPS310_STATUS_UNINIT , DPS310_STATUS_GET_ID , DPS310_STATUS_TEMP_FIX , DPS310_STATUS_WAIT_RDY ,   DPS310_STATUS_GET_COEF_SRCE , DPS310_STATUS_GET_CALIB , DPS310_STATUS_CONFIGURE_REGS , DPS310_STATUS_CONFIGURE_MEAS ,   DPS310_STATUS_READ_DATA }
	States of the non-blocking driver state machine. More...

Functions
void	dps310_i2c_init (struct Dps310_I2c *dps, struct i2c_periph *i2c_p, uint8_t addr)
	Initialize the driver instance (no bus traffic yet)
void	dps310_i2c_periodic (struct Dps310_I2c *dps)
	Run the driver state machine, submitting at most one I2C transaction.
void	dps310_i2c_event (struct Dps310_I2c *dps)
	Consume finished I2C transactions and advance the state machine.

Detailed Description

Driver for the Infineon DPS310 barometer (I2C)

Definition in file dps310_i2c.h.

---

Data Structure Documentation

Dps310_I2c

struct Dps310_I2c

Definition at line 51 of file dps310_i2c.h.

Collaboration diagram for Dps310_I2c:

Data Fields
struct dps310_reg_calib_data	calib	calibration data
volatile bool	data_available	data ready flag
struct i2c_periph *	i2c_p	I2C peripheral used for communication.
struct i2c_transaction	i2c_trans	I2C transaction (only one in flight at a time)
uint8_t	init_error_cnt	number of consecutive transaction failures
bool	initialized	config done flag
bool	is_broken	sensor not found or persistently failing, retried after a backoff period
float	pressure	pressure in Pascal
int32_t	raw_pressure	uncompensated pressure
int32_t	raw_temperature	uncompensated temperature
enum Dps310Status	status	state machine status
uint8_t	temp_coef_srce	TMP_COEF_SRCE bit read from the sensor, mirrored into TMP_CFG bit 7.
uint8_t	temp_fix_step	current step of the temperature errata fix sequence
float	temperature	temperature in deg Celsius
uint32_t	timer	broken-sensor retry backoff timer

Enumeration Type Documentation

Dps310Status

enum Dps310Status

States of the non-blocking driver state machine.

Traversed once in order during initialization, then the driver stays in DPS310_STATUS_READ_DATA. Any failure path leads back to DPS310_STATUS_UNINIT.

Enumerator
DPS310_STATUS_UNINIT	restart point: reset driver state, then detect the sensor
DPS310_STATUS_GET_ID	read the product/revision ID register
DPS310_STATUS_TEMP_FIX	apply the 5-write temperature errata fix (genuine DPS310 only)
DPS310_STATUS_WAIT_RDY	wait for SENSOR_RDY and COEF_RDY (~40ms after power-up)
DPS310_STATUS_GET_COEF_SRCE	read which temperature sensor the factory calibration used
DPS310_STATUS_GET_CALIB	read the 18 calibration coefficient bytes
DPS310_STATUS_CONFIGURE_REGS	write PRS_CFG, TMP_CFG, MEAS_CFG (idle) and CFG_REG in one burst
DPS310_STATUS_CONFIGURE_MEAS	enable continuous pressure + temperature measurements
DPS310_STATUS_READ_DATA	operational: poll the 6 result registers

Definition at line 39 of file dps310_i2c.h.

Function Documentation

dps310_i2c_event()

void dps310_i2c_event ( struct Dps310_I2c *  dps )

extern

Consume finished I2C transactions and advance the state machine.

Parameters

dps	The dps310 instance

Should be called from the event loop. On success it parses the responses and publishes plausibility-checked measurements through data_available. On failure it counts consecutive errors, escalating from a simple retry to a full re-initialization (DPS310_MAX_ERROR_CNT) and, while uninitialized, to a timed backoff.

Definition at line 290 of file dps310_i2c.c.

References compensate_sensor(), DPS310_CHIP_ID, DPS310_COEF_SRCE_BIT_TMP_COEF_SRCE, DPS310_MAX_ERROR_CNT, DPS310_MEAS_CFG_COEF_RDY, DPS310_MEAS_CFG_SENSOR_RDY, DPS310_PRESSURE_MAX_PA, DPS310_PRESSURE_MIN_PA, DPS310_STATUS_CONFIGURE_MEAS, DPS310_STATUS_CONFIGURE_REGS, DPS310_STATUS_GET_CALIB, DPS310_STATUS_GET_COEF_SRCE, DPS310_STATUS_GET_ID, DPS310_STATUS_READ_DATA, DPS310_STATUS_TEMP_FIX, DPS310_STATUS_UNINIT, DPS310_STATUS_WAIT_RDY, DPS310_TEMP_FIX_SEQ_LEN, foo, get_sys_time_usec(), I2CTransDone, I2CTransFailed, I2CTransSuccess, parse_calib_data(), and parse_sensor_data().

Referenced by baro_dps310_event().

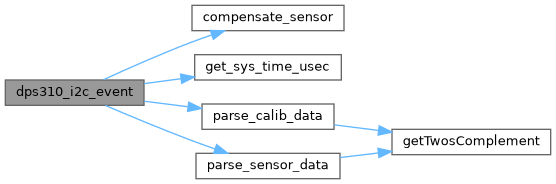

Here is the call graph for this function:

Here is the caller graph for this function:

dps310_i2c_init()

void dps310_i2c_init ( struct Dps310_I2c *  dps, struct i2c_periph *  i2c_p, uint8_t  addr  )

extern

Initialize the driver instance (no bus traffic yet)

Parameters

dps	The dps310 instance
i2c_p	I2C peripheral the sensor is connected to
addr	8-bit I2C slave address (DPS310_I2C_ADDR or DPS310_I2C_ADDR_ALT)

Sensor detection and configuration happen asynchronously afterwards through dps310_i2c_periodic() and dps310_i2c_event().

Definition at line 174 of file dps310_i2c.c.

References DPS310_STATUS_UNINIT, foo, I2CTransDone, and i2c_periph::status.

Referenced by baro_dps310_init().

Here is the caller graph for this function:

dps310_i2c_periodic()

void dps310_i2c_periodic ( struct Dps310_I2c *  dps )

extern

Run the driver state machine, submitting at most one I2C transaction.

Parameters

dps	The dps310 instance

Should be called periodically. The call rate is decoupled from the sensor-internal 16 Hz measurement rate: polling faster only re-reads the latest sample. Does nothing while a transaction is still in flight. A persistently failing or absent sensor is retried after a DPS310_BROKEN_RETRY_US backoff instead of spamming the bus.

Definition at line 199 of file dps310_i2c.c.

References DPS310_BROKEN_RETRY_US, DPS310_CFG_REG_P_SHIFT, DPS310_CFG_REG_T_SHIFT, DPS310_MEAS_CTRL_CONT, DPS310_PRS_CFG_PM_PRC_16, DPS310_PRS_CFG_PM_RATE_16HZ, DPS310_REG_COEF, DPS310_REG_COEF_SRCE, DPS310_REG_ID, DPS310_REG_MEAS_CFG, DPS310_REG_PRS_CFG, DPS310_REG_PSR_B2, DPS310_STATUS_CONFIGURE_MEAS, DPS310_STATUS_CONFIGURE_REGS, DPS310_STATUS_GET_CALIB, DPS310_STATUS_GET_COEF_SRCE, DPS310_STATUS_GET_ID, DPS310_STATUS_READ_DATA, DPS310_STATUS_TEMP_FIX, DPS310_STATUS_UNINIT, DPS310_STATUS_WAIT_RDY, dps310_temp_fix_seq, DPS310_TMP_CFG_TMP_PRC_16, DPS310_TMP_CFG_TMP_RATE_16HZ, foo, get_sys_time_usec(), i2c_transceive(), i2c_transmit(), and I2CTransDone.

Referenced by baro_dps310_periodic().

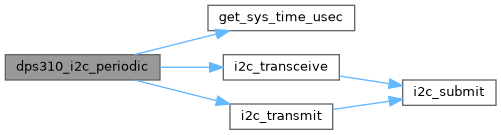

Here is the call graph for this function:

Here is the caller graph for this function:
