#include "modules/digital_cam/dc_shoot_pwm.h"
#include "dc.h"
#include "generated/airframe.h"
#include "generated/modules.h"
#include "modules/actuators/actuators.h"

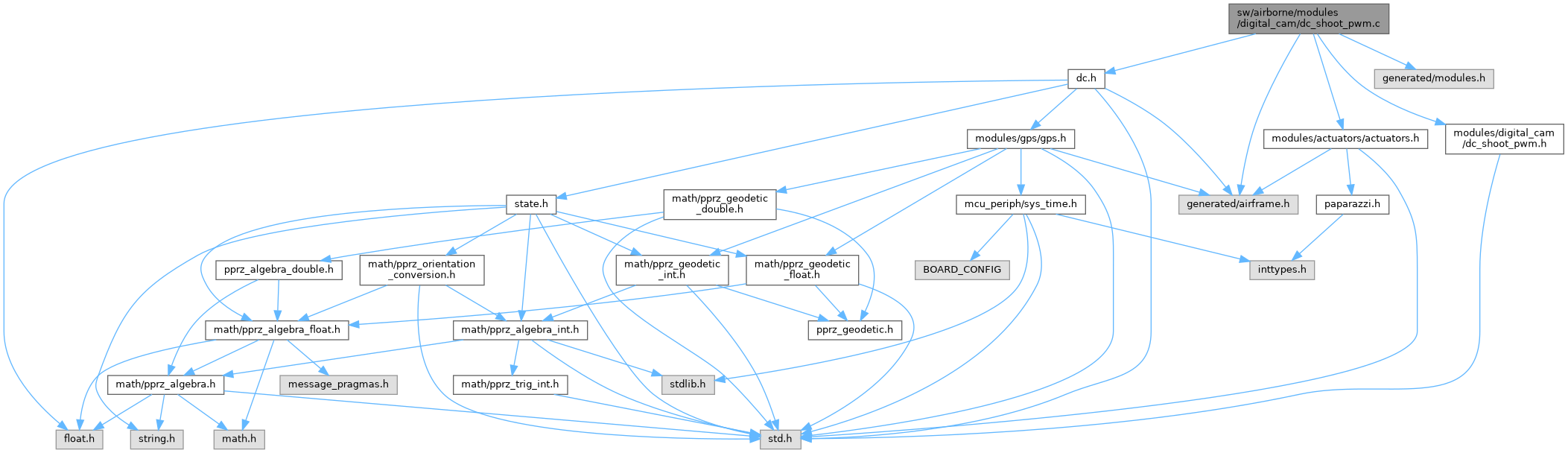

Include dependency graph for dc_shoot_pwm.c:

Macros
#define	DC_CAM_PWM_SHUTTER_DELAY 0.1
	how long to push shutter in seconds

#define	DC_CAM_PWM_ON_VALUE MAX_PPRZ
	Max PWM Value.

#define	DC_CAM_PWM_OFF_VALUE MIN_PPRZ
	Min PWM Value.

#define	DC_CAM_PWM_SERVO DC_CAM_TRIGGER
	Servo destination.

#define	CamActuatorSet(_a, _v) ActuatorSet(_a, _v)

Functions
void	dc_shoot_pwm_init (void)
	Initialization function.

void	dc_shoot_pwm_periodic (void)
	Periodic function to send data.

void	dc_send_command (uint8_t cmd)
	Send Command To Camera.

Variables
static uint8_t	shutter_timer
	Timer used for Shutter delay control.

Detailed Description

Author

Jean-Baptiste Forestier Trigger using pwm cameras like MAPIR (https://www.mapir.camera/en-gb) or ThermalCapture 2.0 from TeAx (https://thermalcapture.com/thermalcapture-2-0/)

                  **** MAPIR ****

Duty cycle == 2000us => TRIGGER_ON Duty cycle == 1500us => SD Unmount Duty cycle == 1000us => TRIGGER_OFF Image capture frequency = 1.5s for JPG and 2.5-3.0s RAW+JPG

The quickest the 2000us command should be sent is about once every 1.5s as the camera cannot capture JPG images more quickly than 1.5s. For RAW+JPG mode we recommend a 2.5-3.0s wait time.

RAW images are used for capturing data for reflectance measurements, otherwise the pixels in the JPG are not usable. im_freq_timer should therefore be > 1.5s (=>TRIGGER_CAMERA_CAPTURE_IMAGE_PERIOD = 1.5 seconds)

NMEA GPS data are stored in metadata

              **** ThermalCapture ****

Duty cycle < 1500us => TRIGGER_OFF Duty cycle > 1500us => TRIGGER_ON Image capture frequency up to 30 Hz Possibility to capture one frame per trigger in configurator : Trigger frame mode Convert 14-bit data into temperature values : High gain mode: temp [°C] = raw * 0.04 - 273.15 Low gain mode : temp [°C] = raw * 0.4 - 273.15

NMEA GPS data are stored in metadata

              **** Trigger  system ****

TIME ────────────────────────────────────────────────────────────>

PWM             1000us         2000us         1000us         2000us
Vcc             ┌────┐        ┌───────┐       ┌────┐        ┌───────┐
                │ OFF│        │  ON   │       │ OFF│        │  ON   │
0V          ────┘    └────────┘       └───────┘    └────────┘       └────

im_freq_timer: ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ 0 ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ 0 ↓↓↓↓↓↓↓↓↓↓ shutter_timer: ↓↓↓↓ 0 ↓↓↓↓ 0

                                ↑                             ↑
                             Picture 1                     Picture 2

Definition in file dc_shoot_pwm.c.

Macro Definition Documentation

◆ CamActuatorSet

#define CamActuatorSet	(	_a,
		_v
	)	ActuatorSet(_a, _v)

Definition at line 97 of file dc_shoot_pwm.c.

◆ DC_CAM_PWM_OFF_VALUE

#define DC_CAM_PWM_OFF_VALUE MIN_PPRZ

Min PWM Value.

Definition at line 89 of file dc_shoot_pwm.c.

◆ DC_CAM_PWM_ON_VALUE

#define DC_CAM_PWM_ON_VALUE MAX_PPRZ

Max PWM Value.

Definition at line 84 of file dc_shoot_pwm.c.

◆ DC_CAM_PWM_SERVO

#define DC_CAM_PWM_SERVO DC_CAM_TRIGGER

Servo destination.

Definition at line 94 of file dc_shoot_pwm.c.

◆ DC_CAM_PWM_SHUTTER_DELAY

#define DC_CAM_PWM_SHUTTER_DELAY 0.1

how long to push shutter in seconds

Definition at line 79 of file dc_shoot_pwm.c.

Function Documentation

◆ dc_send_command()

void dc_send_command ( uint8_t cmd )

Send Command To Camera.

Definition at line 130 of file dc_shoot_pwm.c.

References CamActuatorSet, DC_CAM_PWM_ON_VALUE, DC_CAM_PWM_SERVO, DC_CAM_PWM_SHUTTER_DELAY, dc_send_command_common(), dc_send_shot_position(), DC_SHOOT, foo, and shutter_timer.

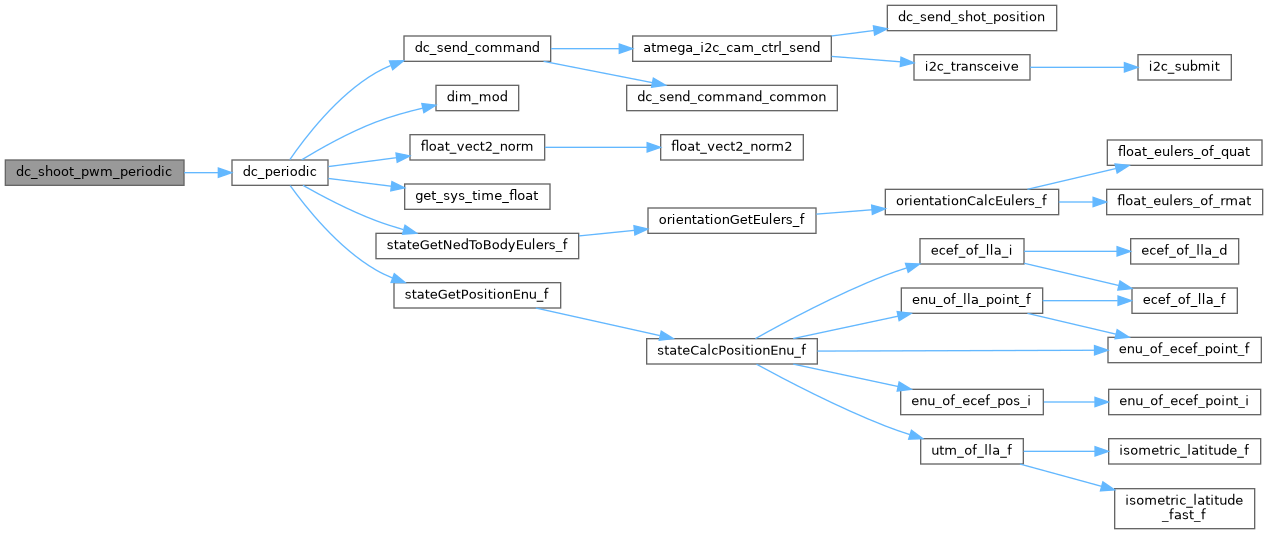

Here is the call graph for this function:

◆ dc_shoot_pwm_init()

void dc_shoot_pwm_init ( void )

Initialization function.

Definition at line 107 of file dc_shoot_pwm.c.

References CamActuatorSet, DC_CAM_PWM_OFF_VALUE, DC_CAM_PWM_SERVO, and shutter_timer.

◆ dc_shoot_pwm_periodic()

void dc_shoot_pwm_periodic ( void )

Periodic function to send data.

Definition at line 116 of file dc_shoot_pwm.c.

References CamActuatorSet, DC_CAM_PWM_OFF_VALUE, DC_CAM_PWM_SERVO, dc_periodic(), and shutter_timer.

Here is the call graph for this function:

Variable Documentation

◆ shutter_timer

uint8_t shutter_timer

static

Timer used for Shutter delay control.

Definition at line 102 of file dc_shoot_pwm.c.

Referenced by dc_send_command(), dc_shoot_pwm_init(), and dc_shoot_pwm_periodic().
