uavcan_allocator.h File Reference
#include "inttypes.h"
Include dependency graph for uavcan_allocator.h:

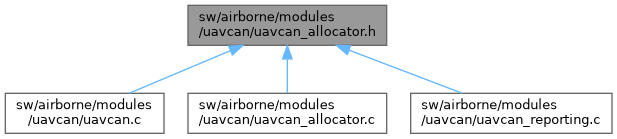

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  uavcan_unique_id_t
struct  uavcan_node_mapping_t

Functions

struct uavcan_node_mapping_t * uavcan_get_node_id_mapping (const uint8_t id)
void request_node_info (struct uavcan_iface_t *iface, uint8_t destination_node_id)
void uavcan_allocator_init (void)
void uavcan_allocator_periodic (void)

Data Structure Documentation

◆ uavcan_unique_id_t

struct uavcan_unique_id_t

Definition at line 16 of file uavcan_allocator.h.

Data Fields
uint8_t data[16]
uint8_t len

◆ uavcan_node_mapping_t

struct uavcan_node_mapping_t

Definition at line 21 of file uavcan_allocator.h.

Collaboration diagram for uavcan_node_mapping_t:
Data Fields
uint8_t allocated_id
struct uavcan_unique_id_t unique_id

Function Documentation

◆ request_node_info()

void request_node_info ( struct uavcan_iface_t * iface,
uint8_t destination_node_id )

Definition at line 244 of file uavcan_allocator.c.

References transfer(), and uavcan_request().

Referenced by node_status_cb().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ uavcan_allocator_init()

void uavcan_allocator_init ( void )

Definition at line 256 of file uavcan_allocator.c.

References id_alloc_ev, id_alloc_uavcan_cb(), node_info_ev, node_info_resp_cb(), and uavcan_bind().

Referenced by uavcan_init().

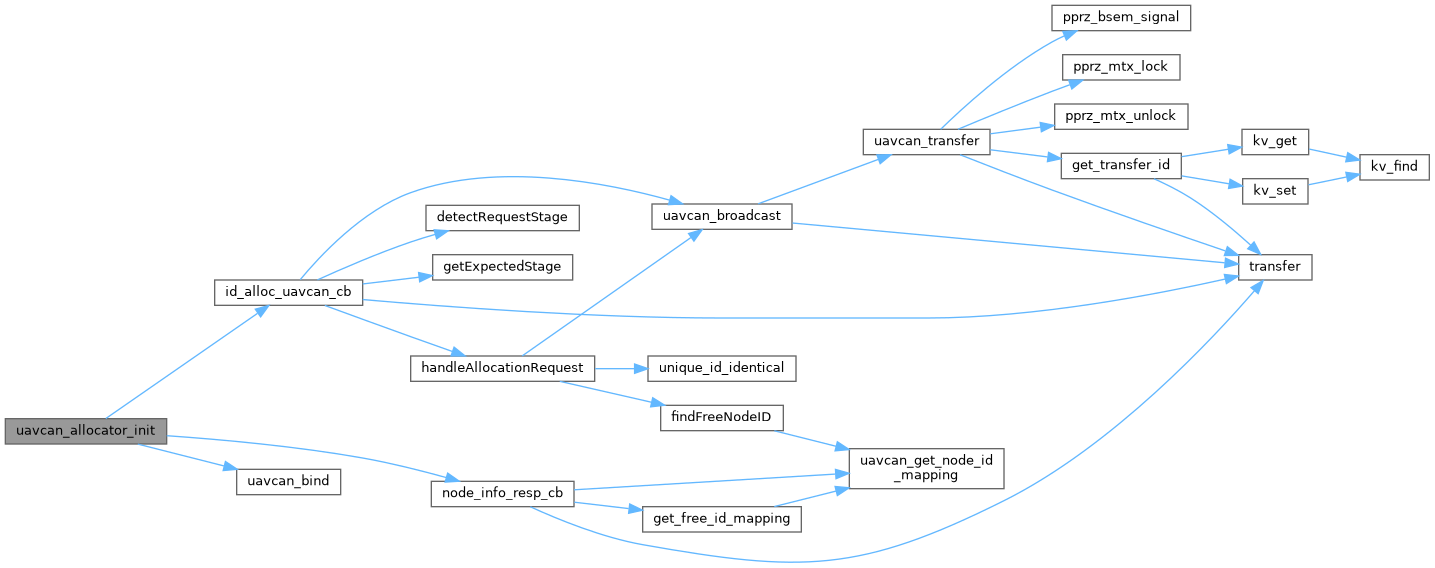

Here is the call graph for this function:
Here is the caller graph for this function:

◆ uavcan_allocator_periodic()

void uavcan_allocator_periodic ( void )

◆ uavcan_get_node_id_mapping()

struct uavcan_node_mapping_t * uavcan_get_node_id_mapping ( const uint8_t id)

Definition at line 42 of file uavcan_allocator.c.

References uavcan_node_mapping_t::allocated_id, UAVCAN_MAX_NODES, and uavcan_node_ids.

Referenced by findFreeNodeID(), get_free_id_mapping(), node_info_resp_cb(), and node_status_cb().

Here is the caller graph for this function:
