Driver for the Goertek SPA06-003 / SPL06-001 barometer (I2C or SPI) More...

#include "peripherals/spa06_regs.h"
#include "mcu_periph/i2c.h"
#include "mcu_periph/spi.h"

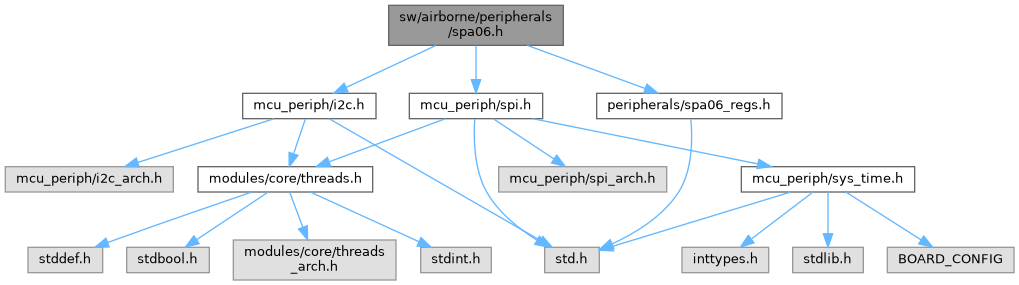

Include dependency graph for spa06.h:

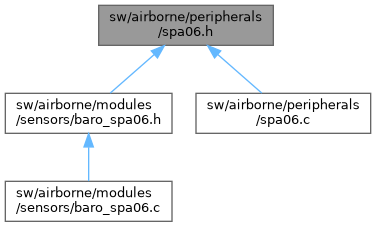

This graph shows which files directly or indirectly include this file:

Data Structures
struct	spa06_i2c_t
	I2C bus configuration and transaction state. More...

struct	spa06_spi_t
	SPI bus configuration and transaction state. More...

struct	spa06_reg_calib_data
	Factory calibration coefficients (register trim values) More...

struct	spa06_t
	Driver instance state. More...

union	spa06_t.__unnamed358__

Enumerations
enum	spa06_bus_t { SPA06_SPI , SPA06_I2C }
	Communication busses the spa06 driver can use. More...

enum	spa06_device_t { SPA06_UNKNOWN , SPA06 , SPL06 }
	Device type, detected from the chip ID during initialization. More...

enum	spa06_status_t { SPA06_STATUS_UNINIT , SPA06_STATUS_IDLE , SPA06_STATUS_INIT_OK , SPA06_STATUS_GET_COEF_SRCE , SPA06_STATUS_GET_CALIB , SPA06_STATUS_CONFIGURE , SPA06_STATUS_READ_STATUS_REG , SPA06_STATUS_READ_DATA_REGS }
	States of the non-blocking driver state machine. More...

Functions
void	spa06_init (struct spa06_t *spa)
	Initialize the driver instance, expects bus and i2c/spi members to be pre-filled.

void	spa06_periodic (struct spa06_t *spa)
	Run the state machine, submits at most one bus transaction; call periodically.

void	spa06_event (struct spa06_t *spa)
	Handle finished transactions and publish measurements; call from the event loop.

Detailed Description

Driver for the Goertek SPA06-003 / SPL06-001 barometer (I2C or SPI)

Definition in file spa06.h.

Data Structure Documentation

◆ spa06_i2c_t

struct spa06_i2c_t

I2C bus configuration and transaction state.

Definition at line 37 of file spa06.h.

Collaboration diagram for spa06_i2c_t:

Data Fields
struct i2c_periph *	p	Peripheral device for communication.
uint8_t	slave_addr	The I2C slave address on the bus.
struct i2c_transaction	trans	Transaction used during configuration and measurements.

◆ spa06_spi_t

struct spa06_spi_t

SPI bus configuration and transaction state.

Definition at line 44 of file spa06.h.

Collaboration diagram for spa06_spi_t:

Data Fields
struct spi_periph *	p	Peripheral device for communication.
uint8_t	rx_buf[50]	Receive buffer (dummy byte + response)
uint8_t	slave_idx	Slave index used for Slave Select.
struct spi_transaction	trans	Transaction used during configuration and measurements.
uint8_t	tx_buf[50]	Transmit buffer (command byte + payload)

◆ spa06_reg_calib_data

struct spa06_reg_calib_data

Factory calibration coefficients (register trim values)

Mixed-width two's complement values unpacked from the COEF registers. c31 and c40 only exist on the SPA06 and are zero on the SPL06.

Definition at line 90 of file spa06.h.

Data Fields
int16_t	c0	12 bit, temperature offset
int32_t	c00	20 bit, pressure offset
int16_t	c01	16 bit
int16_t	c1	12 bit, temperature gain
int32_t	c10	20 bit
int16_t	c11	16 bit
int16_t	c20	16 bit
int16_t	c21	16 bit
int16_t	c30	16 bit
int16_t	c31	12 bit, SPA06 only
int16_t	c40	12 bit, SPA06 only

◆ spa06_t

struct spa06_t

Driver instance state.

Fill in bus, and the i2c/spi member for that bus, before calling spa06_init(). Consumers read pressure/temperature when data_available is true and clear the flag themselves.

Definition at line 110 of file spa06.h.

Collaboration diagram for spa06_t:

Data Fields
union spa06_t.__unnamed358__	__unnamed__
enum spa06_bus_t	bus	The communication bus used to connect the device SPI/I2C.
struct spa06_reg_calib_data	calib	calibration data
uint8_t	calib_idx	progress through the calibration chunks (spa06_get_calib/parse_calib_data)
uint8_t	config_idx	progress through the configuration writes (spa06_config)
volatile bool	data_available	data ready flag
enum spa06_device_t	device	The device type detected.
uint8_t	init_error_cnt	Number of consecutive transaction failures.
bool	initialized	config done flag
bool	is_broken	sensor absent or persistently failing, retried after a backoff period
float	pressure	pressure in Pascal
int32_t	raw_pressure	uncompensated pressure
int32_t	raw_temperature	uncompensated temperature
bool	reset	reset command sent, waiting for the sensor to restart
volatile uint8_t *	rx_buffer	points into the active bus receive buffer (SPI dummy byte already skipped)
enum spa06_status_t	status	state machine status
float	temperature	temperature in deg Celcius
uint32_t	timer	times the 40ms post-reset wait and the broken-sensor retry backoff [us]
uint8_t	tmp_coef_srce	TMP_COEF_SRCE bit read from the sensor, mirrored into TMP_CFG bit 7.
volatile uint8_t *	tx_buffer	points into the active bus transmit buffer

◆ spa06_t.unnamed358

union spa06_t.__unnamed358__

Definition at line 126 of file spa06.h.

Data Fields
struct spa06_i2c_t	i2c	I2C specific configuration.
struct spa06_spi_t	spi	SPI specific configuration.

Enumeration Type Documentation

◆ spa06_bus_t

enum spa06_bus_t

Communication busses the spa06 driver can use.

Enumerator
SPA06_SPI
SPA06_I2C

Definition at line 54 of file spa06.h.

◆ spa06_device_t

enum spa06_device_t

Device type, detected from the chip ID during initialization.

Enumerator
SPA06_UNKNOWN	not (yet) detected
SPA06	SPA06-003, has the extra c31/c40 calibration coefficients.
SPL06	SPL06-001.

Definition at line 60 of file spa06.h.

◆ spa06_status_t

enum spa06_status_t

States of the non-blocking driver state machine.

Traversed once in order during initialization, then the driver alternates between READ_STATUS_REG and READ_DATA_REGS. Any failure path leads back to SPA06_STATUS_UNINIT.

Enumerator
SPA06_STATUS_UNINIT	restart point: soft reset, then wait 40ms for the sensor to restart
SPA06_STATUS_IDLE	read the chip ID to detect the device type
SPA06_STATUS_INIT_OK	wait for SENSOR_RDY and COEFFS_RDY
SPA06_STATUS_GET_COEF_SRCE	read which temperature sensor the factory calibration used
SPA06_STATUS_GET_CALIB	read the calibration coefficients (in chunks)
SPA06_STATUS_CONFIGURE	write the measurement configuration (register by register)
SPA06_STATUS_READ_STATUS_REG	operational: poll until pressure and temperature are ready
SPA06_STATUS_READ_DATA_REGS	operational: read the 6 result registers

Definition at line 73 of file spa06.h.

Function Documentation

◆ spa06_event()

void spa06_event ( struct spa06_t * spa )

extern

Handle finished transactions and publish measurements; call from the event loop.

Configures the sensor and reads the responses
Parses the responses and publishes plausibility-checked measurements through data_available

On a failed transaction it counts consecutive errors, escalating from a simple retry to a full re-initialization (SPA06_MAX_ERROR_CNT) and, while uninitialized, to a timed backoff. During initialization the I2C address is hot-swapped between the two possible assignments on every failure.

Parameters

spa	The spa06 instance

Definition at line 230 of file spa06.c.

References compensate_pressure(), foo, get_sys_time_usec(), I2CTransDone, I2CTransFailed, I2CTransSuccess, parse_calib_data(), parse_sensor_data(), SPA06, SPA06_CHIP_ID, SPA06_I2C, SPA06_I2C_ADDR, SPA06_I2C_ADDR_ALT, SPA06_MAX_ERROR_CNT, SPA06_PRESSURE_MAX_PA, SPA06_PRESSURE_MIN_PA, SPA06_SPI, SPA06_STATUS_CONFIGURE, SPA06_STATUS_GET_CALIB, SPA06_STATUS_GET_COEF_SRCE, SPA06_STATUS_IDLE, SPA06_STATUS_INIT_OK, SPA06_STATUS_READ_DATA_REGS, SPA06_STATUS_READ_STATUS_REG, SPA06_STATUS_UNINIT, SPITransDone, SPITransFailed, SPITransSuccess, SPL06, SPL06_CHIP_ID, SPL06_COEF_SRCE_BIT_TMP_COEF_SRCE, SPL06_MEAS_CFG_COEFFS_RDY, SPL06_MEAS_CFG_PRESSURE_RDY, SPL06_MEAS_CFG_SENSOR_RDY, SPL06_MEAS_CFG_TEMPERATURE_RDY, and status.

Referenced by baro_spa06_event().

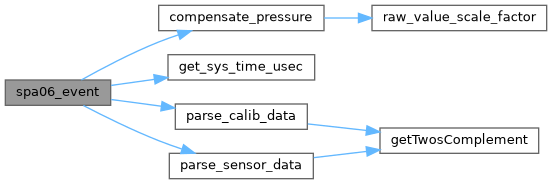

Here is the call graph for this function:

Here is the caller graph for this function:

◆ spa06_init()

void spa06_init ( struct spa06_t * spa )

extern

Initialize the driver instance, expects bus and i2c/spi members to be pre-filled.

Parameters

spa	The structure containing the configuration of the spa06 instance

Definition at line 71 of file spa06.c.

References foo, I2CTransDone, SPA06_SPI, SPA06_STATUS_UNINIT, SPA06_UNKNOWN, SPICphaEdge2, SPICpolIdleHigh, SPIDiv16, SPIDss8bit, SPIMSBFirst, SPISelectUnselect, and SPITransDone.

Referenced by baro_spa06_init().

Here is the caller graph for this function:

◆ spa06_periodic()

void spa06_periodic ( struct spa06_t * spa )

extern

Run the state machine, submits at most one bus transaction; call periodically.

First detects the sensor using WHO_AM_I reading
Configures the sensor according the users requested configuration
Requests a sensor reading

Submits at most one bus transaction per call and does nothing while a transaction is still in flight. A persistently failing or absent sensor is retried after a SPA06_BROKEN_RETRY_US backoff instead of spamming the bus.

Parameters

spa	The spa06 instance

Definition at line 131 of file spa06.c.

References foo, get_sys_time_usec(), I2CTransDone, SPA06_BROKEN_RETRY_US, spa06_config(), spa06_get_calib(), SPA06_I2C, spa06_register_read(), spa06_register_write(), SPA06_SPI, SPA06_STATUS_CONFIGURE, SPA06_STATUS_GET_CALIB, SPA06_STATUS_GET_COEF_SRCE, SPA06_STATUS_IDLE, SPA06_STATUS_INIT_OK, SPA06_STATUS_READ_DATA_REGS, SPA06_STATUS_READ_STATUS_REG, SPA06_STATUS_UNINIT, SPITransDone, SPL06_PRESSURE_LEN, SPL06_REG_CHIP_ID, SPL06_REG_COEF_SRCE, SPL06_REG_MODE_AND_STATUS, SPL06_REG_PRESSURE_B2, SPL06_REG_RST, SPL06_RESET_BIT_SOFT_RST, and SPL06_TEMPERATURE_LEN.

Referenced by baro_spa06_periodic().

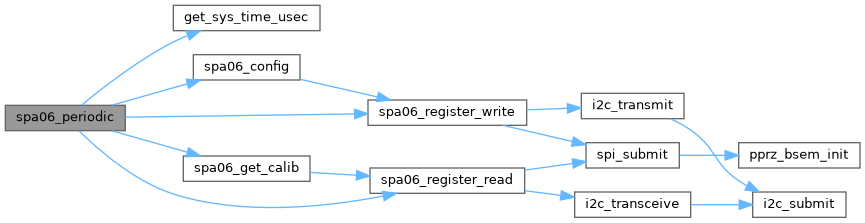

Here is the call graph for this function:

Here is the caller graph for this function:
