Driver for the Goertek SPA06-003 / SPL06-001 barometer (I2C or SPI). More...

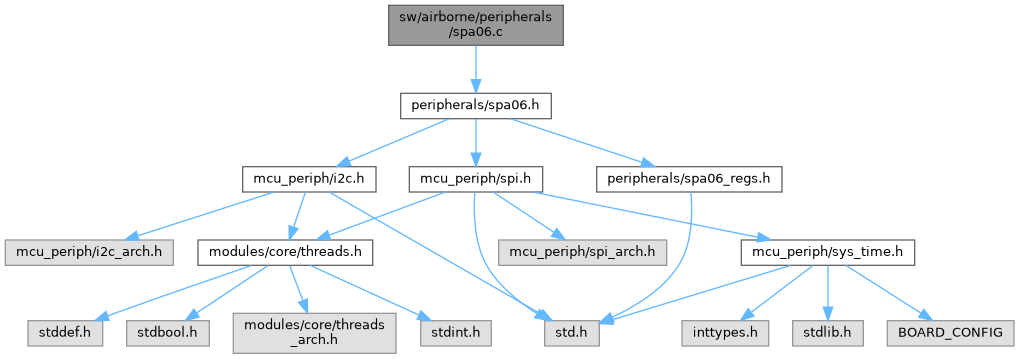

#include "peripherals/spa06.h"Go to the source code of this file.
Macros | |
| #define | SPL06_PRESSURE_OVERSAMPLING SPL06_OVERSAMPLING_64X_P |
| #define | SPL06_TEMPERATURE_OVERSAMPLING SPL06_OVERSAMPLING_1X_T |
| #define | SPA06_BROKEN_RETRY_US 5000000 |
| retry a failed/absent sensor every 5s instead of giving up forever | |
| #define | SPA06_MAX_ERROR_CNT 10 |
| consecutive transaction failures before escalating | |
| #define | SPA06_PRESSURE_MIN_PA 30000.0f |
| specified measurement range is 300-1200 hPa, | |
| #define | SPA06_PRESSURE_MAX_PA 120000.0f |
| anything outside means the data got corrupted | |
Functions | |
| static void | parse_sensor_data (struct spa06_t *spa, volatile uint8_t *data) |
| Extract the raw 24-bit pressure and temperature measurements. | |
| static void | parse_calib_data (struct spa06_t *spa, volatile uint8_t *coef) |
| Unpack one chunk of calibration coefficient bytes. | |
| static void | compensate_pressure (struct spa06_t *spa) |
| Convert raw measurements into pressure [Pa] and temperature [deg C]. | |
| static bool | spa06_config (struct spa06_t *spa) |
| Configure the spa06 device register by register. | |
| static bool | spa06_get_calib (struct spa06_t *spa) |
| Request the calibration coefficients, one chunk per call. | |
| static int32_t | raw_value_scale_factor (uint8_t oversampling) |
| Scale factor for raw values at a given oversampling setting. | |
| static void | spa06_register_write (struct spa06_t *spa, uint8_t reg, uint8_t value) |
| Write a single register over the configured bus (SPI or I2C). | |
| static void | spa06_register_read (struct spa06_t *spa, uint8_t reg, uint16_t size) |
| Read consecutive registers over the configured bus (SPI or I2C). | |
| static int32_t | getTwosComplement (uint32_t raw, uint8_t length) |
| Sign-extend a raw two's complement value of arbitrary bit length. | |
| void | spa06_init (struct spa06_t *spa) |
| Initialize the spa06 sensor instance. | |
| void | spa06_periodic (struct spa06_t *spa) |
| Should be called periodically to request sensor readings. | |
| void | spa06_event (struct spa06_t *spa) |
| Should be called in the event thread. | |
Driver for the Goertek SPA06-003 / SPL06-001 barometer (I2C or SPI).
Non-blocking state machine driver:
* UNINIT (soft reset + 40ms wait) -> IDLE (chip ID) -> INIT_OK (wait ready) * -> GET_COEF_SRCE -> GET_CALIB (3 chunks) -> CONFIGURE (4 writes) * -> READ_STATUS_REG <-> READ_DATA_REGS (looping) *
spa06_periodic() submits at most one bus transaction per call and spa06_event() consumes the result and advances the state machine. The device type (SPA06 vs SPL06) is detected from the chip ID and decides whether the additional c31/c40 calibration coefficients are used.
Definition in file spa06.c.
| #define SPA06_BROKEN_RETRY_US 5000000 |
retry a failed/absent sensor every 5s instead of giving up forever
Definition at line 49 of file spa06.c.
Referenced by spa06_periodic().
| #define SPA06_MAX_ERROR_CNT 10 |
consecutive transaction failures before escalating
Definition at line 50 of file spa06.c.
Referenced by spa06_event().
| #define SPA06_PRESSURE_MAX_PA 120000.0f |
anything outside means the data got corrupted
Definition at line 52 of file spa06.c.
Referenced by spa06_event().
| #define SPA06_PRESSURE_MIN_PA 30000.0f |
specified measurement range is 300-1200 hPa,
Definition at line 51 of file spa06.c.
Referenced by spa06_event().
| #define SPL06_PRESSURE_OVERSAMPLING SPL06_OVERSAMPLING_64X_P |
Definition at line 45 of file spa06.c.
Referenced by compensate_pressure(), and spa06_config().
| #define SPL06_TEMPERATURE_OVERSAMPLING SPL06_OVERSAMPLING_1X_T |
Definition at line 46 of file spa06.c.
Referenced by compensate_pressure(), and spa06_config().
|
static |
Convert raw measurements into pressure [Pa] and temperature [deg C].
| spa | The spa06 instance |
Implements the compensation formulas of the datasheet (sections 4.9.1 and 4.9.2) using the factory calibration coefficients. The scale factors are tied to the configured oversampling; keep SPL06_*_OVERSAMPLING and spa06_config() in sync.
Definition at line 441 of file spa06.c.
References spa06_reg_calib_data::c0, spa06_reg_calib_data::c00, spa06_reg_calib_data::c01, spa06_reg_calib_data::c1, spa06_reg_calib_data::c10, spa06_reg_calib_data::c11, spa06_reg_calib_data::c20, spa06_reg_calib_data::c21, spa06_reg_calib_data::c30, spa06_reg_calib_data::c31, spa06_reg_calib_data::c40, spa06_t::calib, spa06_t::pressure, spa06_t::raw_pressure, spa06_t::raw_temperature, raw_value_scale_factor(), SPL06_PRESSURE_OVERSAMPLING, SPL06_TEMPERATURE_OVERSAMPLING, and spa06_t::temperature.
Referenced by spa06_event().
Sign-extend a raw two's complement value of arbitrary bit length.
| raw | Unsigned register value holding the two's complement number |
| length | Number of significant bits (e.g. 12, 16, 20, 24) |
Definition at line 643 of file spa06.c.
Referenced by parse_calib_data(), and parse_sensor_data().
Unpack one chunk of calibration coefficient bytes.
| spa | The spa06 instance, calib_idx selects which chunk is being parsed |
| coef | The coefficient bytes as read by spa06_get_calib() |
The coefficients are packed as mixed 12/16/20 bit two's complement values, see the COEF register description in the datasheet. Called once per chunk (in reading order); increments calib_idx itself. The SPA06-only c31/c40 coefficients are zeroed on the SPL06 so that a single compensation formula can serve both devices.
Definition at line 379 of file spa06.c.
References spa06_reg_calib_data::c0, spa06_reg_calib_data::c00, spa06_reg_calib_data::c01, spa06_reg_calib_data::c1, spa06_reg_calib_data::c10, spa06_reg_calib_data::c11, spa06_reg_calib_data::c20, spa06_reg_calib_data::c21, spa06_reg_calib_data::c30, spa06_reg_calib_data::c31, spa06_reg_calib_data::c40, spa06_t::calib, spa06_t::calib_idx, spa06_t::device, getTwosComplement(), and SPA06.
Referenced by spa06_event().
Extract the raw 24-bit pressure and temperature measurements.
| spa | The spa06 instance |
| data | The 6 result bytes (registers 0x00-0x05, burst-read in one transaction) |
Definition at line 361 of file spa06.c.
References getTwosComplement(), spa06_t::raw_pressure, and spa06_t::raw_temperature.
Referenced by spa06_event().
Scale factor for raw values at a given oversampling setting.
| oversampling | Oversampling register code (0-7, see SPL06_OVERSAMPLING_*) |
Note the values are not monotonic: settings above 8x store shifted results (see SPL06_*_RESULT_BIT_SHIFT) and therefore use smaller factors.
Definition at line 551 of file spa06.c.
Referenced by compensate_pressure().
|
static |
Configure the spa06 device register by register.
Writes PRS_CFG, TMP_CFG (including the calibration temperature source read earlier), the result bit shifts (mandatory for oversampling > 8x) and finally enables continuous measurements. Only one register is written per call; config_idx tracks the progress.
| spa | The spa06 instance |
Definition at line 469 of file spa06.c.
References spa06_t::config_idx, spa06_register_write(), SPL06_MEAS_CON_PRE_TEM, SPL06_PRES_RATE_4HZ, SPL06_PRESSURE_OVERSAMPLING, SPL06_PRESSURE_RESULT_BIT_SHIFT, SPL06_REG_INT_AND_FIFO_CFG, SPL06_REG_MODE_AND_STATUS, SPL06_REG_PRESSURE_CFG, SPL06_REG_TEMPERATURE_CFG, SPL06_TEMP_RATE_4HZ, SPL06_TEMPERATURE_OVERSAMPLING, SPL06_TEMPERATURE_RESULT_BIT_SHIFT, and spa06_t::tmp_coef_srce.
Referenced by spa06_periodic().

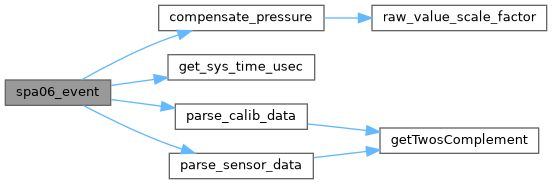

| void spa06_event | ( | struct spa06_t * | spa | ) |
Should be called in the event thread.
Handle finished transactions and publish measurements; call from the event loop.
On a failed transaction it counts consecutive errors, escalating from a simple retry to a full re-initialization (SPA06_MAX_ERROR_CNT) and, while uninitialized, to a timed backoff. During initialization the I2C address is hot-swapped between the two possible assignments on every failure.
| spa | The spa06 instance |
Definition at line 230 of file spa06.c.
References spa06_t::bus, compensate_pressure(), spa06_t::data_available, spa06_t::device, get_sys_time_usec(), I2CTransDone, I2CTransFailed, I2CTransSuccess, spa06_t::init_error_cnt, spa06_t::initialized, spa06_t::is_broken, parse_calib_data(), parse_sensor_data(), spa06_t::pressure, spa06_t::reset, spa06_t::rx_buffer, SPA06, SPA06_CHIP_ID, SPA06_I2C, SPA06_I2C_ADDR, SPA06_I2C_ADDR_ALT, SPA06_MAX_ERROR_CNT, SPA06_PRESSURE_MAX_PA, SPA06_PRESSURE_MIN_PA, SPA06_SPI, SPA06_STATUS_CONFIGURE, SPA06_STATUS_GET_CALIB, SPA06_STATUS_GET_COEF_SRCE, SPA06_STATUS_IDLE, SPA06_STATUS_INIT_OK, SPA06_STATUS_READ_DATA_REGS, SPA06_STATUS_READ_STATUS_REG, SPA06_STATUS_UNINIT, SPITransDone, SPITransFailed, SPITransSuccess, SPL06, SPL06_CHIP_ID, SPL06_COEF_SRCE_BIT_TMP_COEF_SRCE, SPL06_MEAS_CFG_COEFFS_RDY, SPL06_MEAS_CFG_PRESSURE_RDY, SPL06_MEAS_CFG_SENSOR_RDY, SPL06_MEAS_CFG_TEMPERATURE_RDY, spa06_t::status, status, spa06_t::timer, and spa06_t::tmp_coef_srce.
Referenced by baro_spa06_event().
|
static |
Request the calibration coefficients, one chunk per call.
The coefficients are read in three chunks because the chip returns a read failure when reading the whole block at once over I2C. The last chunk is device-dependent: the SPA06 has two extra coefficients (c31/c40) in registers that do not exist on the SPL06. Parsing happens in spa06_event() via parse_calib_data(), which advances calib_idx.
| spa | The spa06 instance |
Definition at line 523 of file spa06.c.
References spa06_t::calib_idx, spa06_t::device, SPA06, spa06_register_read(), and SPL06_REG_CALIB_COEFFS_START.
Referenced by spa06_periodic().
| void spa06_init | ( | struct spa06_t * | spa | ) |
Initialize the spa06 sensor instance.
Initialize the driver instance, expects bus and i2c/spi members to be pre-filled.
| spa | The structure containing the configuration of the spa06 instance |
Definition at line 71 of file spa06.c.
References spa06_t::bus, spa06_t::calib_idx, spa06_t::config_idx, spa06_t::data_available, spa06_t::device, I2CTransDone, spa06_t::init_error_cnt, spa06_t::initialized, spa06_t::is_broken, spa06_t::reset, spa06_t::rx_buffer, SPA06_SPI, SPA06_STATUS_UNINIT, SPA06_UNKNOWN, SPICphaEdge2, SPICpolIdleHigh, SPIDiv16, SPIDss8bit, SPIMSBFirst, SPISelectUnselect, SPITransDone, spa06_t::status, spa06_t::timer, spa06_t::tmp_coef_srce, and spa06_t::tx_buffer.
Referenced by baro_spa06_init().

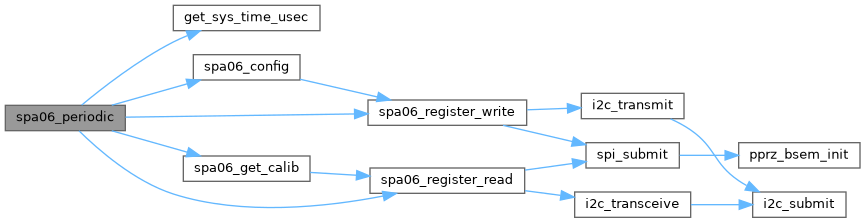

| void spa06_periodic | ( | struct spa06_t * | spa | ) |
Should be called periodically to request sensor readings.
Run the state machine, submits at most one bus transaction; call periodically.
Submits at most one bus transaction per call and does nothing while a transaction is still in flight. A persistently failing or absent sensor is retried after a SPA06_BROKEN_RETRY_US backoff instead of spamming the bus.
| spa | The spa06 instance |
Definition at line 131 of file spa06.c.
References spa06_t::bus, spa06_t::calib_idx, spa06_t::config_idx, spa06_t::data_available, get_sys_time_usec(), I2CTransDone, spa06_t::init_error_cnt, spa06_t::initialized, spa06_t::is_broken, spa06_t::reset, SPA06_BROKEN_RETRY_US, spa06_config(), spa06_get_calib(), SPA06_I2C, spa06_register_read(), spa06_register_write(), SPA06_SPI, SPA06_STATUS_CONFIGURE, SPA06_STATUS_GET_CALIB, SPA06_STATUS_GET_COEF_SRCE, SPA06_STATUS_IDLE, SPA06_STATUS_INIT_OK, SPA06_STATUS_READ_DATA_REGS, SPA06_STATUS_READ_STATUS_REG, SPA06_STATUS_UNINIT, SPITransDone, SPL06_PRESSURE_LEN, SPL06_REG_CHIP_ID, SPL06_REG_COEF_SRCE, SPL06_REG_MODE_AND_STATUS, SPL06_REG_PRESSURE_B2, SPL06_REG_RST, SPL06_RESET_BIT_SOFT_RST, SPL06_TEMPERATURE_LEN, spa06_t::status, and spa06_t::timer.
Referenced by baro_spa06_periodic().
Read consecutive registers over the configured bus (SPI or I2C).
| spa | The spa06 instance |
| reg | The first register address (auto-incremented by the sensor) |
| size | The number of registers to read |
The response ends up in rx_buffer (which already hides the SPI dummy byte). Requests larger than the receive buffer are rejected. Silently does nothing while a transaction is still in flight.
Definition at line 610 of file spa06.c.
References spa06_t::bus, I2C_BUF_LEN, i2c_transceive(), I2CTransDone, SPA06_SPI, spi_submit(), SPITransDone, SPL06_READ_FLAG, spa06_t::status, and spa06_t::tx_buffer.
Referenced by spa06_get_calib(), and spa06_periodic().
Write a single register over the configured bus (SPI or I2C).
| spa | The spa06 instance |
| reg | The register address (bit 7 is masked off for the SPI write command) |
| value | The value to write to the register |
Silently does nothing while a transaction is still in flight; callers are driven by the periodic/event pair, so the write is simply retried later.
Definition at line 577 of file spa06.c.
References spa06_t::bus, i2c_transmit(), I2CTransDone, SPA06_SPI, spi_submit(), SPITransDone, spa06_t::status, and spa06_t::tx_buffer.
Referenced by spa06_config(), and spa06_periodic().
