kv_store.h File Reference

#include <stdint.h>
#include <stddef.h>

Include dependency graph for kv_store.h:

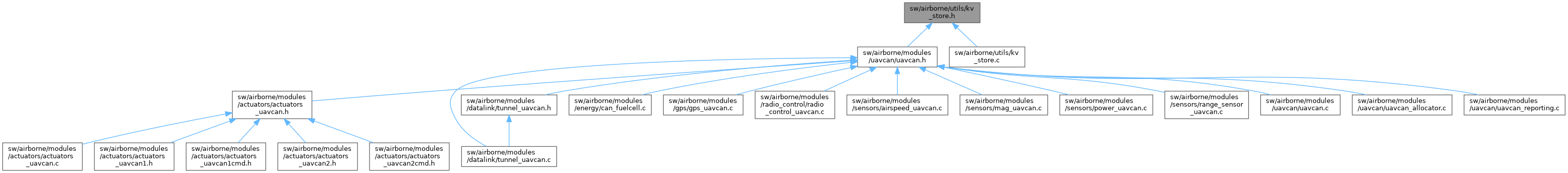

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	kv_store_t

Functions
void	kv_init (kv_store_t *kv, size_t capacity, size_t esize, uint32_t *keys, void *values, uint8_t *used)
	Initializes a key-value store.
int	kv_exists (const kv_store_t *kv, uint32_t key)
	Checks if a key exists in the store.
int	kv_set (kv_store_t *kv, uint32_t key, const void *value)
	Sets a value for a given key.
void *	kv_get (const kv_store_t *kv, uint32_t key)
	Retrieves the value associated with a given key.
int	kv_remove (kv_store_t *kv, uint32_t key)
	Removes a key-value pair from the store.

---

Data Structure Documentation

kv_store_t

struct kv_store_t

Definition at line 11 of file kv_store.h.

Data Fields
size_t	capacity
size_t	esize
uint32_t *	keys
uint8_t *	used
uint8_t *	values

Function Documentation

kv_exists()

int kv_exists	(	const kv_store_t *	kv,
		uint32_t	key
	)

Checks if a key exists in the store.

Parameters

kv	Pointer to the kv_store_t structure.
key	The key to check for existence.

Returns

1 if the key exists, 0 otherwise.

Definition at line 64 of file kv_store.c.

References foo, kv, and kv_find().

Here is the call graph for this function:

kv_get()

void * kv_get	(	const kv_store_t *	kv,
		uint32_t	key
	)

Retrieves the value associated with a given key.

Parameters

kv	Pointer to the kv_store_t structure.
key	The key to retrieve the value for.

Returns

Pointer to the value if the key exists, NULL otherwise.

Definition at line 111 of file kv_store.c.

References foo, kv, and kv_find().

Referenced by get_transfer_id().

Here is the call graph for this function:

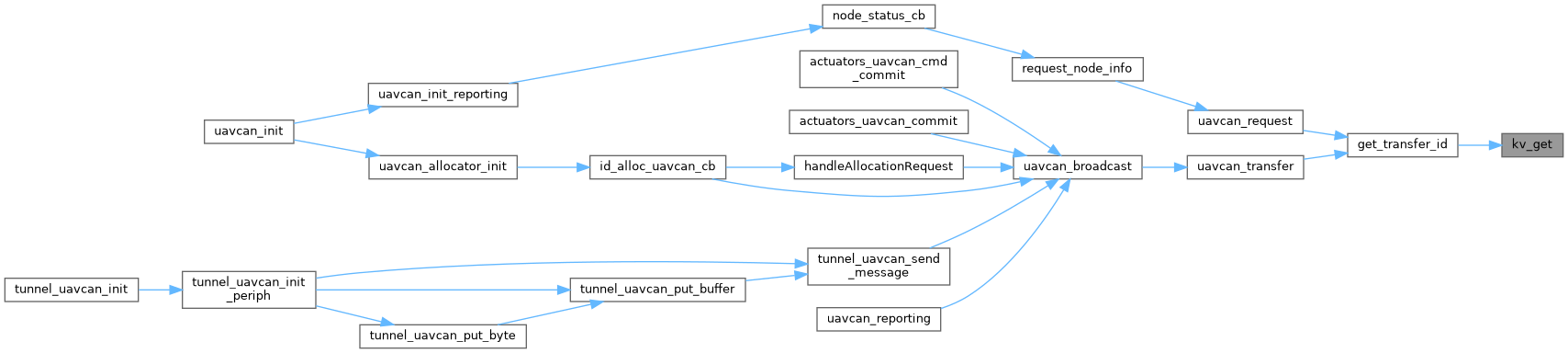

Here is the caller graph for this function:

kv_init()

void kv_init	(	kv_store_t *	kv,
		size_t	capacity,
		size_t	esize,
		uint32_t *	keys,
		void *	values,
		uint8_t *	used
	)

Initializes a key-value store.

Parameters

kv	Pointer to the kv_store_t structure to initialize.
capacity	The maximum number of key-value pairs the store can hold.
esize	The size in bytes of each value element.
keys	Pointer to an array of uint32_t for storing keys. At least "capacity" long.
values	Pointer to the memory area for storing values. At least "capacity * esize" long.
used	Pointer to an array of uint8_t flags indicating if a slot is used. At least "capacity" long.

Definition at line 20 of file kv_store.c.

References kv.

Referenced by uavcanInitIface().

Here is the caller graph for this function:

kv_remove()

int kv_remove	(	kv_store_t *	kv,
		uint32_t	key
	)

Removes a key-value pair from the store.

Parameters

kv	Pointer to the kv_store_t structure.
key	The key to remove.

Returns

0 on success, -1 if the key was not found.

Definition at line 127 of file kv_store.c.

References kv, and kv_find().

Here is the call graph for this function:

kv_set()

int kv_set	(	kv_store_t *	kv,
		uint32_t	key,
		const void *	value
	)

Sets a value for a given key.

If the key already exists, its value is updated. If not, a new key-value pair is inserted into the first available slot. If the store is full, the operation fails.

Parameters

kv	Pointer to the kv_store_t structure.
key	The key to set.
value	Pointer to the value to store. Value will be memcpy in the store, so the pointer does not need to be valid afterward.

Returns

0 on success, -1 if the store is full.

Definition at line 79 of file kv_store.c.

References foo, kv, and kv_find().

Referenced by get_transfer_id().

Here is the call graph for this function:

Here is the caller graph for this function:
