hx711.h File Reference

Interface for the HX711 sensor. More...

#include "std.h"

Include dependency graph for hx711.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	hx711_init (void)
void	hx711_event (void)
	Start a measurement and publish the results when possible.

Detailed Description

Interface for the HX711 sensor.

Definition in file hx711.h.

Function Documentation

hx711_event()

void hx711_event

(

void

)

Start a measurement and publish the results when possible.

Definition at line 135 of file hx711.c.

References hx711_t::busy, hx711_dev_t::data_pin, hx711_dev_t::data_port, DefaultChannel, DefaultDevice, hx711_t::devices, foo, get_sys_time_float(), get_sys_time_usec(), gpio_get(), hx711, HX711_DEVICES_NB, HX711_FORCE_SENSOR_ID, hx711_meas_time, HX711_PERIOD, hx711_dev_t::measurement, hx711_t::measurement_ready, pprzlog_tp, and hx711_t::read_bit_idx.

Here is the call graph for this function:

hx711_init()

void hx711_init

(

void

)

Definition at line 110 of file hx711.c.

References hx711_t::busy, hx711_dev_t::data_pin, hx711_dev_t::data_port, hx711_t::devices, foo, gpio_setup_input(), gpio_setup_pin_af(), hx711, HX711_DEVICES_NB, hx711_t::measurement_ready, pwmcfg, pwmpcb(), and hx711_t::read_bit_idx.

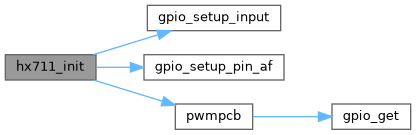

Here is the call graph for this function:
