framed_ring_buffer.h File Reference

#include <stdint.h>
#include <stddef.h>

Include dependency graph for framed_ring_buffer.h:

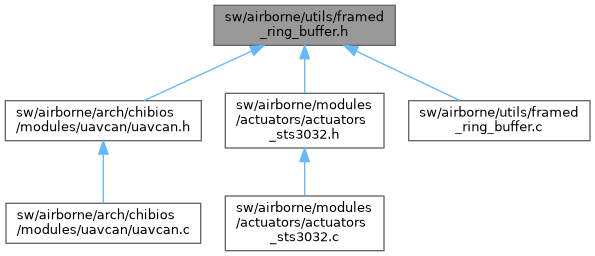

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	framed_ring_buffer
	This is a general purpose circular buffer for storing variable lenght buffers in a FIFO order. More...

Enumerations
enum	cir_error { CIR_ERROR_NO_MSG = -1 , CIR_ERROR_BUFFER_TOO_SMALL = -2 , CIR_ERROR_NO_SPACE_AVAILABLE = -3 , CIR_ERROR_LOCKED = -4 }

Functions
void	framed_ring_buffer_init (struct framed_ring_buffer *cb, uint8_t *buffer, size_t len)
	initialize a circular buffer.
int	framed_ring_buffer_get (struct framed_ring_buffer *cb, uint8_t *buf, size_t len)
	copy the next buffer available in cb to buf.
int	framed_ring_buffer_put (struct framed_ring_buffer *cb, const uint8_t *buf, size_t len)
	Copy buf in the circular buffer.
int	framed_ring_buffer_drop_last (struct framed_ring_buffer *cb)
	Drop last inserted record.
size_t	framed_ring_buffer_available (struct framed_ring_buffer *cb)
	Get the available sapce for the next buffer.
void	framed_ring_buffer_clear (struct framed_ring_buffer *cb)
	Clear buffer.

---

Data Structure Documentation

framed_ring_buffer

struct framed_ring_buffer

This is a general purpose circular buffer for storing variable lenght buffers in a FIFO order.

Buffers length are stored as uint16_t.

Declare a framed_ring_buffer and allocate a buffer that will outlive it. Initialize the framed_ring_buffer using framed_ring_buffer_init.

Definition at line 23 of file framed_ring_buffer.h.

Data Fields
uint8_t *	_buf
size_t	_buf_len
size_t	read_offset
size_t	write_offset

Enumeration Type Documentation

cir_error

enum cir_error

Enumerator
CIR_ERROR_NO_MSG	circular buffer is empty
CIR_ERROR_BUFFER_TOO_SMALL	destination buffer is too small
CIR_ERROR_NO_SPACE_AVAILABLE	no space available in the circular buffer
CIR_ERROR_LOCKED	mutex locked

Definition at line 30 of file framed_ring_buffer.h.

Function Documentation

framed_ring_buffer_available()

size_t framed_ring_buffer_available

(

struct framed_ring_buffer *

cb

)

Get the available sapce for the next buffer.

Definition at line 110 of file framed_ring_buffer.c.

References framed_ring_buffer::_buf_len, foo, framed_ring_buffer::read_offset, and framed_ring_buffer::write_offset.

Referenced by framed_ring_buffer_put().

Here is the caller graph for this function:

framed_ring_buffer_clear()

void framed_ring_buffer_clear

(

struct framed_ring_buffer *

cb

)

Clear buffer.

Definition at line 122 of file framed_ring_buffer.c.

References framed_ring_buffer::read_offset, and framed_ring_buffer::write_offset.

framed_ring_buffer_drop_last()

int framed_ring_buffer_drop_last

(

struct framed_ring_buffer *

cb

)

Drop last inserted record.

Definition at line 90 of file framed_ring_buffer.c.

References framed_ring_buffer::_buf, framed_ring_buffer::_buf_len, CIR_ERROR_NO_MSG, foo, framed_ring_buffer::read_offset, and framed_ring_buffer::write_offset.

Referenced by uavcan_broadcast().

Here is the caller graph for this function:

framed_ring_buffer_get()

int framed_ring_buffer_get	(	struct framed_ring_buffer *	cb,
		uint8_t *	buf,
		size_t	len
	)

copy the next buffer available in cb to buf.

Parameters

cb	The circular buffer
buf	destination buffer
len	size of buf

Returns

Size of the data copied to buf, or an error code if negative.

Definition at line 22 of file framed_ring_buffer.c.

References framed_ring_buffer::_buf, framed_ring_buffer::_buf_len, CIR_ERROR_BUFFER_TOO_SMALL, CIR_ERROR_NO_MSG, foo, framed_ring_buffer::read_offset, and framed_ring_buffer::write_offset.

Referenced by sts3032_event(), and uavcan_tx().

Here is the caller graph for this function:

framed_ring_buffer_init()

void framed_ring_buffer_init	(	struct framed_ring_buffer *	cb,
		uint8_t *	buffer,
		size_t	len
	)

initialize a circular buffer.

Parameters

cb	framed_ring_buffer structure
buffer	buffer used internally by the framed ring buffer
len	size of buffer

Definition at line 13 of file framed_ring_buffer.c.

References framed_ring_buffer::_buf, framed_ring_buffer::_buf_len, framed_ring_buffer::read_offset, and framed_ring_buffer::write_offset.

Referenced by actuators_sts3032_init(), and uavcanInitIface().

Here is the caller graph for this function:

framed_ring_buffer_put()

int framed_ring_buffer_put	(	struct framed_ring_buffer *	cb,
		const uint8_t *	buf,
		size_t	len
	)

Copy buf in the circular buffer.

Parameters

cb	The circular buffer
buf	source buffer
len	Size of buf

Returns

0 on success, Error code if negative

Definition at line 52 of file framed_ring_buffer.c.

References framed_ring_buffer::_buf, framed_ring_buffer::_buf_len, CIR_ERROR_NO_SPACE_AVAILABLE, foo, framed_ring_buffer_available(), and framed_ring_buffer::write_offset.

Referenced by uavcan_broadcast(), and write_buf().

Here is the call graph for this function:

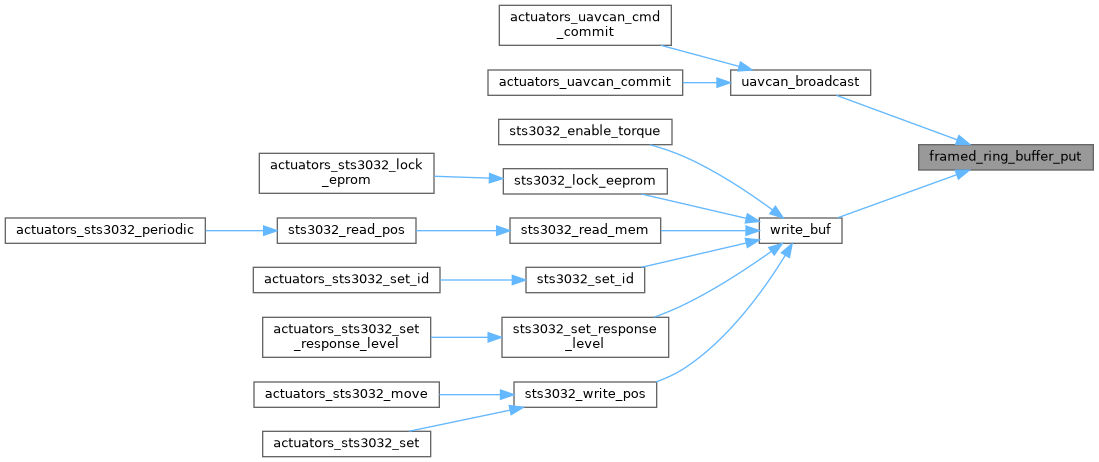

Here is the caller graph for this function:
