Register definitions for Infineon DPS310 pressure sensor. More...

#include "std.h"

Include dependency graph for dps310_regs.h:

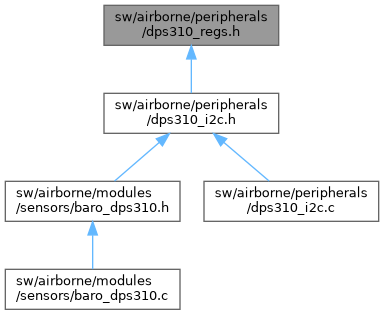

This graph shows which files directly or indirectly include this file:

Data Structures
struct	dps310_reg_calib_data

Macros
#define	DPS310_I2C_ADDR 0xEE

#define	DPS310_I2C_ADDR_ALT 0xEC

#define	DPS310_CHIP_ID 0x10

#define	DPS310_REG_PSR_B2 0x00

#define	DPS310_REG_PSR_B1 0x01

#define	DPS310_REG_PSR_B0 0x02

#define	DPS310_REG_TMP_B2 0x03

#define	DPS310_REG_TMP_B1 0x04

#define	DPS310_REG_TMP_B0 0x05

#define	DPS310_REG_PRS_CFG 0x06

#define	DPS310_REG_TMP_CFG 0x07

#define	DPS310_REG_MEAS_CFG 0x08

#define	DPS310_REG_CFG_REG 0x09

#define	DPS310_REG_INT_STS 0x0A

#define	DPS310_REG_FIFO_STS 0x0B

#define	DPS310_REG_RESET 0x0C

#define	DPS310_REG_ID 0x0D

#define	DPS310_REG_COEF 0x10

#define	DPS310_REG_COEF_SRCE 0x28

#define	DPS310_RESET_CMD 0x09

#define	DPS310_MEAS_CFG_COEF_RDY (1 << 7)

#define	DPS310_MEAS_CFG_SENSOR_RDY (1 << 6)

#define	DPS310_MEAS_CFG_TMP_RDY (1 << 5)

#define	DPS310_MEAS_CFG_PRS_RDY (1 << 4)

#define	DPS310_PRS_CFG_PM_RATE_32HZ (5 << 4)

#define	DPS310_PRS_CFG_PM_RATE_16HZ (4 << 4)

#define	DPS310_PRS_CFG_PM_RATE_8HZ (3 << 4)

#define	DPS310_PRS_CFG_PM_PRC_16 (4 << 0)

#define	DPS310_TMP_CFG_TMP_EXT (1 << 7)

#define	DPS310_TMP_CFG_TMP_RATE_32HZ (5 << 4)

#define	DPS310_TMP_CFG_TMP_RATE_16HZ (4 << 4)

#define	DPS310_TMP_CFG_TMP_RATE_8HZ (3 << 4)

#define	DPS310_TMP_CFG_TMP_PRC_16 (4 << 0)

#define	DPS310_CFG_REG_P_SHIFT (1 << 2)

#define	DPS310_CFG_REG_T_SHIFT (1 << 3)

#define	DPS310_MEAS_CTRL_CONT 0x07

#define	DPS310_COEF_SRCE_BIT_TMP_COEF_SRCE 0x80

Detailed Description

Register definitions for Infineon DPS310 pressure sensor.

Definition in file dps310_regs.h.

Data Structure Documentation

◆ dps310_reg_calib_data

struct dps310_reg_calib_data

Definition at line 82 of file dps310_regs.h.

Data Fields
int16_t	c0
int32_t	c00
int16_t	c01
int16_t	c1
int32_t	c10
int16_t	c11
int16_t	c20
int16_t	c21
int16_t	c30
int16_t	c31
int16_t	c40

Macro Definition Documentation

◆ DPS310_CFG_REG_P_SHIFT

#define DPS310_CFG_REG_P_SHIFT (1 << 2)

Definition at line 76 of file dps310_regs.h.

◆ DPS310_CFG_REG_T_SHIFT

#define DPS310_CFG_REG_T_SHIFT (1 << 3)

Definition at line 77 of file dps310_regs.h.

◆ DPS310_CHIP_ID

#define DPS310_CHIP_ID 0x10

Definition at line 37 of file dps310_regs.h.

◆ DPS310_COEF_SRCE_BIT_TMP_COEF_SRCE

#define DPS310_COEF_SRCE_BIT_TMP_COEF_SRCE 0x80

Definition at line 80 of file dps310_regs.h.

◆ DPS310_I2C_ADDR

#define DPS310_I2C_ADDR 0xEE

Definition at line 34 of file dps310_regs.h.

◆ DPS310_I2C_ADDR_ALT

#define DPS310_I2C_ADDR_ALT 0xEC

Definition at line 35 of file dps310_regs.h.

◆ DPS310_MEAS_CFG_COEF_RDY

#define DPS310_MEAS_CFG_COEF_RDY (1 << 7)

Definition at line 60 of file dps310_regs.h.

◆ DPS310_MEAS_CFG_PRS_RDY

#define DPS310_MEAS_CFG_PRS_RDY (1 << 4)

Definition at line 63 of file dps310_regs.h.

◆ DPS310_MEAS_CFG_SENSOR_RDY

#define DPS310_MEAS_CFG_SENSOR_RDY (1 << 6)

Definition at line 61 of file dps310_regs.h.

◆ DPS310_MEAS_CFG_TMP_RDY

#define DPS310_MEAS_CFG_TMP_RDY (1 << 5)

Definition at line 62 of file dps310_regs.h.

◆ DPS310_MEAS_CTRL_CONT

#define DPS310_MEAS_CTRL_CONT 0x07

Definition at line 79 of file dps310_regs.h.

◆ DPS310_PRS_CFG_PM_PRC_16

#define DPS310_PRS_CFG_PM_PRC_16 (4 << 0)

Definition at line 69 of file dps310_regs.h.

◆ DPS310_PRS_CFG_PM_RATE_16HZ

#define DPS310_PRS_CFG_PM_RATE_16HZ (4 << 4)

Definition at line 67 of file dps310_regs.h.

◆ DPS310_PRS_CFG_PM_RATE_32HZ

#define DPS310_PRS_CFG_PM_RATE_32HZ (5 << 4)

Definition at line 66 of file dps310_regs.h.

◆ DPS310_PRS_CFG_PM_RATE_8HZ

#define DPS310_PRS_CFG_PM_RATE_8HZ (3 << 4)

Definition at line 68 of file dps310_regs.h.

◆ DPS310_REG_CFG_REG

#define DPS310_REG_CFG_REG 0x09

Definition at line 49 of file dps310_regs.h.

◆ DPS310_REG_COEF

#define DPS310_REG_COEF 0x10

Definition at line 55 of file dps310_regs.h.

◆ DPS310_REG_COEF_SRCE

#define DPS310_REG_COEF_SRCE 0x28

Definition at line 56 of file dps310_regs.h.

◆ DPS310_REG_FIFO_STS

#define DPS310_REG_FIFO_STS 0x0B

Definition at line 51 of file dps310_regs.h.

◆ DPS310_REG_ID

#define DPS310_REG_ID 0x0D

Definition at line 53 of file dps310_regs.h.

◆ DPS310_REG_INT_STS

#define DPS310_REG_INT_STS 0x0A

Definition at line 50 of file dps310_regs.h.

◆ DPS310_REG_MEAS_CFG

#define DPS310_REG_MEAS_CFG 0x08

Definition at line 48 of file dps310_regs.h.

◆ DPS310_REG_PRS_CFG

#define DPS310_REG_PRS_CFG 0x06

Definition at line 46 of file dps310_regs.h.

◆ DPS310_REG_PSR_B0

#define DPS310_REG_PSR_B0 0x02

Definition at line 42 of file dps310_regs.h.

◆ DPS310_REG_PSR_B1

#define DPS310_REG_PSR_B1 0x01

Definition at line 41 of file dps310_regs.h.

◆ DPS310_REG_PSR_B2

#define DPS310_REG_PSR_B2 0x00

Definition at line 40 of file dps310_regs.h.

◆ DPS310_REG_RESET

#define DPS310_REG_RESET 0x0C

Definition at line 52 of file dps310_regs.h.

◆ DPS310_REG_TMP_B0

#define DPS310_REG_TMP_B0 0x05

Definition at line 45 of file dps310_regs.h.

◆ DPS310_REG_TMP_B1

#define DPS310_REG_TMP_B1 0x04

Definition at line 44 of file dps310_regs.h.

◆ DPS310_REG_TMP_B2

#define DPS310_REG_TMP_B2 0x03

Definition at line 43 of file dps310_regs.h.

◆ DPS310_REG_TMP_CFG

#define DPS310_REG_TMP_CFG 0x07

Definition at line 47 of file dps310_regs.h.

◆ DPS310_RESET_CMD

#define DPS310_RESET_CMD 0x09

Definition at line 58 of file dps310_regs.h.

◆ DPS310_TMP_CFG_TMP_EXT

#define DPS310_TMP_CFG_TMP_EXT (1 << 7)

Definition at line 70 of file dps310_regs.h.

◆ DPS310_TMP_CFG_TMP_PRC_16

#define DPS310_TMP_CFG_TMP_PRC_16 (4 << 0)

Definition at line 74 of file dps310_regs.h.

◆ DPS310_TMP_CFG_TMP_RATE_16HZ

#define DPS310_TMP_CFG_TMP_RATE_16HZ (4 << 4)

Definition at line 72 of file dps310_regs.h.

◆ DPS310_TMP_CFG_TMP_RATE_32HZ

#define DPS310_TMP_CFG_TMP_RATE_32HZ (5 << 4)

Definition at line 71 of file dps310_regs.h.

◆ DPS310_TMP_CFG_TMP_RATE_8HZ

#define DPS310_TMP_CFG_TMP_RATE_8HZ (3 << 4)

Definition at line 73 of file dps310_regs.h.
