approach_moving_target.h File Reference

#include "std.h"
#include "math/pprz_algebra_float.h"

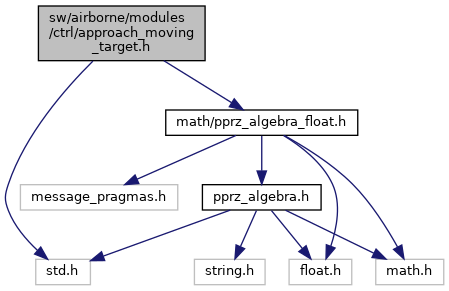

Include dependency graph for approach_moving_target.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Amt

Functions
void	approach_moving_target_init (void)
void	follow_diagonal_approach (void)
	Generates a velocity reference from a diagonal approach path. More...
void	approach_moving_target_enable (uint8_t wp_id)

Variables
float	approach_moving_target_angle_deg
struct Amt	amt
float	amt_err_slowdown_gain

Detailed Description

Author

Ewoud Smeur e.j.j.nosp@m..sme.nosp@m.ur@tu.nosp@m.delf.nosp@m.t.nl Approach a moving target (e.g. ship)

Definition in file approach_moving_target.h.

---

Data Structure Documentation

Amt

struct Amt

Definition at line 35 of file approach_moving_target.h.

Collaboration diagram for Amt:

Data Fields
float	distance
int32_t	enabled_time
float	pos_gain
float	psi_ref
struct FloatVect3	rel_unit_vec
float	relvel_gain
float	slope_ref
float	speed
float	speed_gain
uint8_t	wp_id

Function Documentation

approach_moving_target_enable()

void approach_moving_target_enable

(

uint8_t

wp_id

)

Definition at line 102 of file approach_moving_target.c.

References amt, Amt::enabled_time, get_sys_time_msec(), and Amt::wp_id.

Here is the call graph for this function:

approach_moving_target_init()

void approach_moving_target_init

(

void

)

Definition at line 76 of file approach_moving_target.c.

References DefaultPeriodic, register_periodic_telemetry(), and send_approach_moving_target().

Here is the call graph for this function:

follow_diagonal_approach()

void follow_diagonal_approach

(

void

)

Generates a velocity reference from a diagonal approach path.

Definition at line 111 of file approach_moving_target.c.

Variable Documentation

amt

struct Amt amt

extern

Definition at line 33 of file approach_moving_target.c.

Referenced by approach_moving_target_enable(), and send_approach_moving_target().

amt_err_slowdown_gain

float amt_err_slowdown_gain

extern

Definition at line 31 of file approach_moving_target.c.

approach_moving_target_angle_deg

float approach_moving_target_angle_deg

extern

Definition at line 33 of file approach_moving_target.c.
