imu_mpu9250_spi.c File Reference

IMU driver for the MPU9250 using SPI. More...

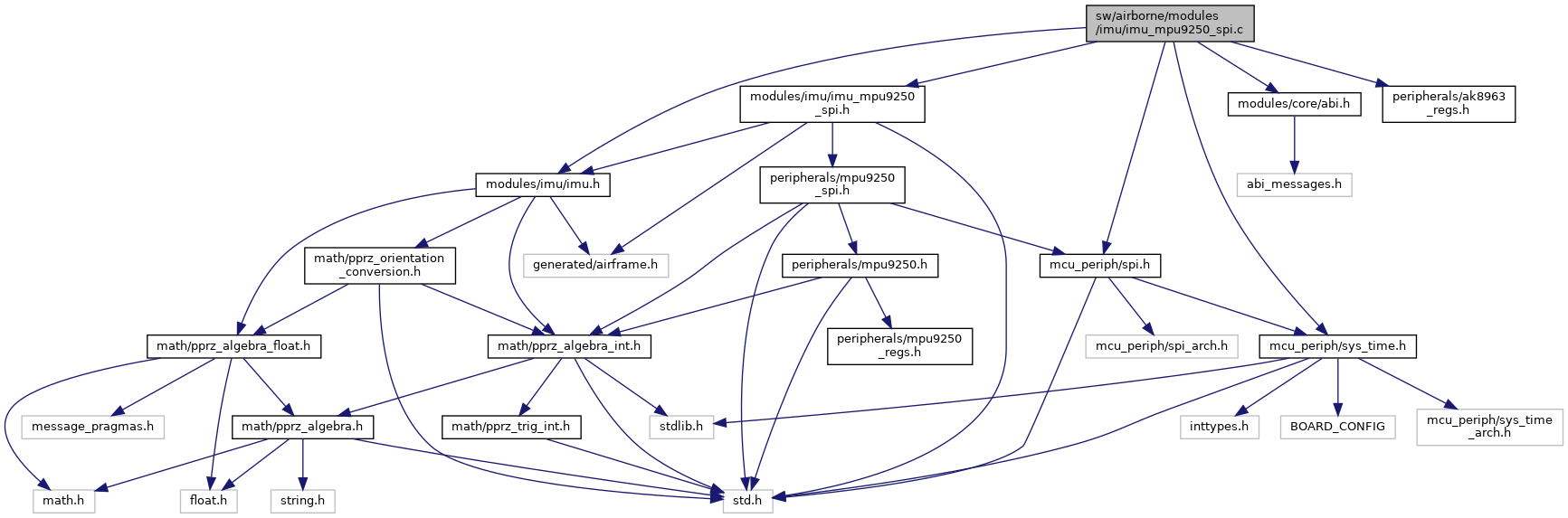

+ Include dependency graph for imu_mpu9250_spi.c:

Go to the source code of this file.

Macros

#define IMU_MPU9250_SMPLRT_DIV   9

#define IMU_MPU9250_GYRO_LOWPASS_FILTER   MPU9250_DLPF_GYRO_41HZ

#define IMU_MPU9250_ACCEL_LOWPASS_FILTER   MPU9250_DLPF_ACCEL_41HZ

#define IMU_MPU9250_CHAN_X   0

#define IMU_MPU9250_CHAN_Y   1

#define IMU_MPU9250_CHAN_Z   2

#define IMU_MPU9250_X_SIGN   1

#define IMU_MPU9250_Y_SIGN   1

#define IMU_MPU9250_Z_SIGN   1

#define IMU_MPU9250_READ_MAG   TRUE

#define IMU_MPU9250_MAG_STARTUP_DELAY   1

#define Int16FromBuf(_buf, _idx)   ((int16_t)(_buf[_idx] | (_buf[_idx+1] << 8)))


Functions

void mpu_wait_slave4_ready (void)

void mpu_wait_slave4_ready_cb (struct spi_transaction *t)

bool imu_mpu9250_configure_mag_slave (Mpu9250ConfigSet mpu_set, void *mpu)
 function to configure akm8963 mag More...

void imu_mpu9250_init (void)

void imu_mpu9250_periodic (void)

void imu_mpu9250_event (void)

static void mpu_set_and_wait (Mpu9250ConfigSet mpu_set, void *mpu, uint8_t _reg, uint8_t _val)


Variables

struct ImuMpu9250 imu_mpu9250


Detailed Description

IMU driver for the MPU9250 using SPI.

Definition in file imu_mpu9250_spi.c.

Macro Definition Documentation

◆ IMU_MPU9250_ACCEL_LOWPASS_FILTER

#define IMU_MPU9250_ACCEL_LOWPASS_FILTER   MPU9250_DLPF_ACCEL_41HZ

Definition at line 63 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_CHAN_X

#define IMU_MPU9250_CHAN_X   0

Definition at line 76 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_CHAN_Y

#define IMU_MPU9250_CHAN_Y   1

Definition at line 80 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_CHAN_Z

#define IMU_MPU9250_CHAN_Z   2

Definition at line 84 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_GYRO_LOWPASS_FILTER

#define IMU_MPU9250_GYRO_LOWPASS_FILTER   MPU9250_DLPF_GYRO_41HZ

Definition at line 62 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_MAG_STARTUP_DELAY

#define IMU_MPU9250_MAG_STARTUP_DELAY   1

Definition at line 106 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_READ_MAG

#define IMU_MPU9250_READ_MAG   TRUE

Definition at line 102 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_SMPLRT_DIV

#define IMU_MPU9250_SMPLRT_DIV   9

Definition at line 61 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_X_SIGN

#define IMU_MPU9250_X_SIGN   1

Definition at line 89 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_Y_SIGN

#define IMU_MPU9250_Y_SIGN   1

Definition at line 93 of file imu_mpu9250_spi.c.

◆ IMU_MPU9250_Z_SIGN

#define IMU_MPU9250_Z_SIGN   1

Definition at line 97 of file imu_mpu9250_spi.c.

◆ Int16FromBuf

#define Int16FromBuf (   _buf,
  _idx
)    ((int16_t)(_buf[_idx] | (_buf[_idx+1] << 8)))

Definition at line 170 of file imu_mpu9250_spi.c.

Function Documentation

◆ imu_mpu9250_configure_mag_slave()

bool imu_mpu9250_configure_mag_slave ( Mpu9250ConfigSet  mpu_set,
void *  mpu
)

function to configure akm8963 mag

callback function to configure ak8963 mag

Returns
TRUE if mag configuration finished

Definition at line 219 of file imu_mpu9250_spi.c.

References AK8963_CNTL1_CM_2, AK8963_REG_CNTL1, AK8963_REG_CNTL2, AK8963_REG_HXL, get_sys_time_float(), IMU_MPU9250_MAG_STARTUP_DELAY, MPU9250_MAG_ADDR, MPU9250_REG_I2C_SLV0_ADDR, MPU9250_REG_I2C_SLV0_CTRL, MPU9250_REG_I2C_SLV0_REG, MPU9250_REG_I2C_SLV4_ADDR, MPU9250_REG_I2C_SLV4_CTRL, MPU9250_REG_I2C_SLV4_DO, MPU9250_REG_I2C_SLV4_REG, MPU9250_SPI_READ, mpu_set_and_wait(), and mpu_wait_slave4_ready().

Referenced by imu_mpu9250_init().

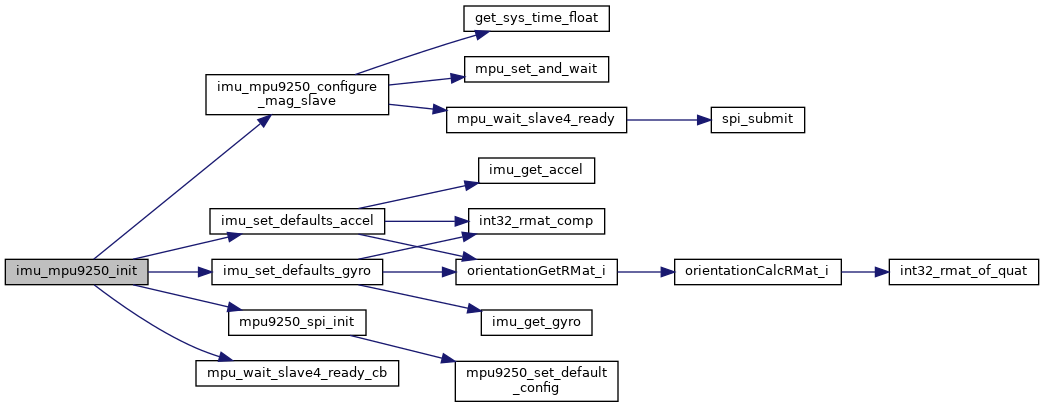

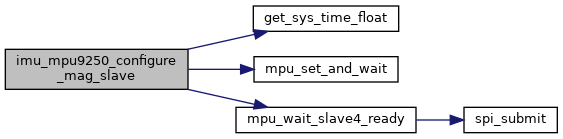

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

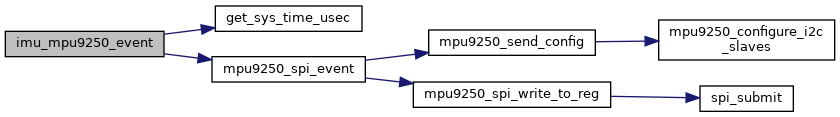

◆ imu_mpu9250_event()

◆ imu_mpu9250_init()

◆ imu_mpu9250_periodic()

void imu_mpu9250_periodic ( void  )

Definition at line 165 of file imu_mpu9250_spi.c.

References imu_mpu9250, ImuMpu9250::mpu, and mpu9250_spi_periodic().

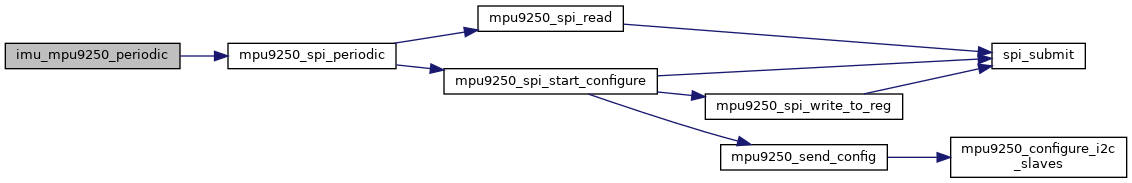

+ Here is the call graph for this function:

◆ mpu_set_and_wait()

static void mpu_set_and_wait ( Mpu9250ConfigSet  mpu_set,
void *  mpu,
uint8_t  _reg,
uint8_t  _val
)
inlinestatic

Definition at line 210 of file imu_mpu9250_spi.c.

References imu_mpu9250, ImuMpu9250::mpu, and SPITransSuccess.

Referenced by imu_mpu9250_configure_mag_slave().

+ Here is the caller graph for this function:

◆ mpu_wait_slave4_ready()

void mpu_wait_slave4_ready ( void  )

Definition at line 254 of file imu_mpu9250_spi.c.

References imu_mpu9250, ImuMpu9250::mpu, MPU9250_REG_I2C_MST_STATUS, MPU9250_SPI_READ, ImuMpu9250::slave4_ready, spi_submit(), SPITransDone, spi_transaction::status, ImuMpu9250::wait_slave4_trans, and ImuMpu9250::wait_slave4_tx_buf.

Referenced by imu_mpu9250_configure_mag_slave().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ mpu_wait_slave4_ready_cb()

void mpu_wait_slave4_ready_cb ( struct spi_transaction t)

Definition at line 264 of file imu_mpu9250_spi.c.

References imu_mpu9250, spi_transaction::input_buf, MPU9250_I2C_SLV4_DONE, ImuMpu9250::slave4_ready, SPITransDone, and spi_transaction::status.

Referenced by imu_mpu9250_init().

+ Here is the caller graph for this function:
