pprz_doublet.c File Reference

#include "pprz_doublet.h"
#include "std.h"

Include dependency graph for pprz_doublet.c:

Go to the source code of this file.

Functions
void	doublet_init (struct doublet_t *doublet, float length_s, float extra_waiting_time_s, float current_time_s, bool mod3211)
void	doublet_reset (struct doublet_t *doublet, float current_time_s)
bool	doublet_is_running (struct doublet_t *doublet, float current_time_s)
float	doublet_update (struct doublet_t *doublet, float current_time_s)

Detailed Description

Author

Alessandro Colllicelli Mathematical implementation of doublet for system identification

A doublet is a maneuver used during system identification procedures. The standard doublet input (1) is constituted by two consecutive step input. The two step inputs are equal in step amplitude and time lenght but opposite in sign. The standard 3-2-1-1 doublet input (2) is constituded by four step input, with decresing length in time, equal amplitude and alternating in sign.

           ______
          |      |

(1) _________| | ___________ Standard doublet input shape | | |______|

           __________________              ______
          |                  |            |      |

(2) _________| | | | _________ 3-2-1-1 doublet input shape | | | | |____________| |______|

Definition in file pprz_doublet.c.

Function Documentation

doublet_init()

void doublet_init	(	struct doublet_t *	doublet,
		float	length_s,
		float	extra_waiting_time_s,
		float	current_time_s,
		bool	mod3211
	)

Definition at line 31 of file pprz_doublet.c.

References doublet_t::current_time_s, doublet_t::current_value, doublet, doublet_t::mod3211, doublet_t::t0, doublet_t::t1, doublet_t::t2, doublet_t::t3, doublet_t::t4, doublet_t::t5, doublet_t::tf, and doublet_t::total_length_s.

Referenced by sys_id_doublet_activate_handler(), and sys_id_doublet_init().

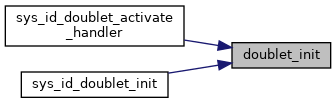

Here is the caller graph for this function:

doublet_is_running()

bool doublet_is_running	(	struct doublet_t *	doublet,
		float	current_time_s
	)

Definition at line 63 of file pprz_doublet.c.

References doublet, doublet_t::t0, and doublet_t::total_length_s.

Referenced by doublet_update(), and sys_id_doublet_run().

Here is the caller graph for this function:

doublet_reset()

void doublet_reset	(	struct doublet_t *	doublet,
		float	current_time_s
	)

Definition at line 57 of file pprz_doublet.c.

References doublet_t::current_time_s, doublet_t::current_value, doublet, and doublet_t::t0.

Referenced by start_doublet(), and stop_doublet().

Here is the caller graph for this function:

doublet_update()

float doublet_update	(	struct doublet_t *	doublet,
		float	current_time_s
	)

Definition at line 68 of file pprz_doublet.c.

References doublet_t::current_value, doublet, doublet_is_running(), doublet_t::mod3211, doublet_t::t0, doublet_t::t1, doublet_t::t2, doublet_t::t3, and doublet_t::t4.

Referenced by sys_id_doublet_run().

Here is the call graph for this function:

Here is the caller graph for this function:
