autopilot_firmware.c File Reference

#include "firmwares/fixedwing/autopilot_firmware.h"
#include "state.h"
#include "firmwares/fixedwing/nav.h"
#include <stdint.h>
#include "modules/datalink/telemetry.h"
#include "generated/settings.h"
#include "firmwares/fixedwing/stabilization/stabilization_attitude.h"
#include <CTRL_TYPE_H>
#include "generated/flight_plan.h"
#include "generated/airframe.h"

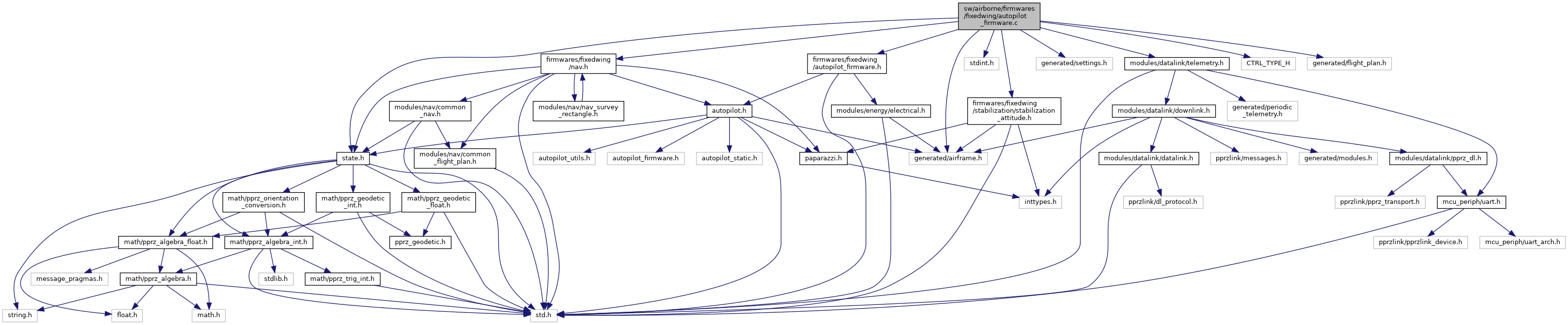

Include dependency graph for autopilot_firmware.c:

Go to the source code of this file.

Macros
#define	CATASTROPHIC_BAT_KILL_DELAY   5
	Maximum time allowed for catastrophic battery level before going into kill mode. More...
#define	KILL_MODE_DISTANCE   (1.5*MAX_DIST_FROM_HOME)
	Maximum distance from HOME waypoint before going into kill mode. More...
#define	MIN_SPEED_FOR_TAKEOFF   5.
	Default minimal speed for takeoff in m/s. More...

Functions
static void	send_mode (struct transport_tx *trans, struct link_device *dev)
static void	send_estimator (struct transport_tx *trans, struct link_device *dev)
static void	send_energy (struct transport_tx *trans, struct link_device *dev)
static void	send_desired (struct transport_tx *trans, struct link_device *dev)
static void	send_airspeed (struct transport_tx *trans, struct link_device *dev)
void	autopilot_send_mode (void)
	Report autopilot mode on default downlink channel. More...
void	autopilot_firmware_init (void)
	Init function. More...
void	monitor_task (void)
	monitor stuff run at 1Hz More...

Variables
struct Electrical	ap_electrical
uint8_t	lateral_mode
uint8_t	mcu1_status
	Second MCU status (FBW part) More...
uint8_t	rc_settings_mode = 0

Detailed Description

Fixedwing specific autopilot interface and initialization

Definition in file autopilot_firmware.c.

Macro Definition Documentation

CATASTROPHIC_BAT_KILL_DELAY

#define CATASTROPHIC_BAT_KILL_DELAY   5

Maximum time allowed for catastrophic battery level before going into kill mode.

Definition at line 147 of file autopilot_firmware.c.

KILL_MODE_DISTANCE

#define KILL_MODE_DISTANCE   (1.5*MAX_DIST_FROM_HOME)

Maximum distance from HOME waypoint before going into kill mode.

Definition at line 152 of file autopilot_firmware.c.

MIN_SPEED_FOR_TAKEOFF

#define MIN_SPEED_FOR_TAKEOFF   5.

Default minimal speed for takeoff in m/s.

Definition at line 157 of file autopilot_firmware.c.

Function Documentation

autopilot_firmware_init()

void autopilot_firmware_init

(

void

)

Init function.

Definition at line 114 of file autopilot_firmware.c.

Referenced by autopilot_init().

Here is the caller graph for this function:

autopilot_send_mode()

void autopilot_send_mode

(

void

)

Report autopilot mode on default downlink channel.

Report autopilot mode on default downlink channel.

Definition at line 106 of file autopilot_firmware.c.

References DefaultChannel, DefaultDevice, and send_mode().

Here is the call graph for this function:

monitor_task()

void monitor_task

(

void

)

monitor stuff run at 1Hz

monitoring task should be called at 1Hz

Definition at line 161 of file autopilot_firmware.c.

References ap_electrical, autopilot, CATASTROPHIC_BAT_KILL_DELAY, DefaultChannel, DefaultDevice, dist2_to_home, pprz_autopilot::flight_time, KILL_MODE_DISTANCE, pprz_autopilot::kill_throttle, pprz_autopilot::launch, MIN_SPEED_FOR_TAKEOFF, sys_time::nb_sec, Square, stateGetHorizontalSpeedNorm_f(), and Electrical::vsupply.

Here is the call graph for this function:

send_airspeed()

static void send_airspeed ( struct transport_tx *  trans, struct link_device *  dev  )

static

Definition at line 91 of file autopilot_firmware.c.

References dev, stateGetAirspeed_f(), v_ctl_auto_airspeed_controlled, v_ctl_auto_airspeed_setpoint, and v_ctl_auto_groundspeed_setpoint.

Referenced by autopilot_firmware_init().

Here is the call graph for this function:

Here is the caller graph for this function:

send_desired()

static void send_desired ( struct transport_tx *  trans, struct link_device *  dev  )

static

Definition at line 80 of file autopilot_firmware.c.

References desired_x, desired_y, dev, h_ctl_course_setpoint, h_ctl_pitch_loop_setpoint, h_ctl_roll_setpoint, v_ctl_altitude_setpoint, v_ctl_auto_airspeed_setpoint, and v_ctl_climb_setpoint.

Referenced by autopilot_firmware_init().

Here is the caller graph for this function:

send_energy()

static void send_energy ( struct transport_tx *  trans, struct link_device *  dev  )

static

Definition at line 69 of file autopilot_firmware.c.

References ap_electrical, autopilot, Electrical::charge, Electrical::current, dev, Electrical::energy, MAX_PPRZ, pprz_autopilot::throttle, and Electrical::vsupply.

Referenced by autopilot_firmware_init().

Here is the caller graph for this function:

send_estimator()

static void send_estimator ( struct transport_tx *  trans, struct link_device *  dev  )

static

Definition at line 63 of file autopilot_firmware.c.

References dev, stateGetPositionUtm_f(), and stateGetSpeedEnu_f().

Referenced by autopilot_firmware_init().

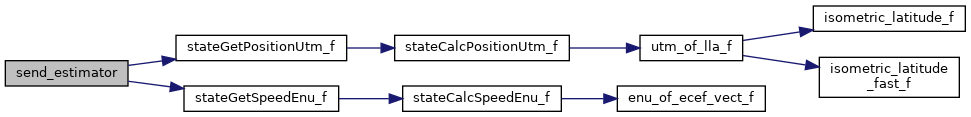

Here is the call graph for this function:

Here is the caller graph for this function:

send_mode()

static void send_mode ( struct transport_tx *  trans, struct link_device *  dev  )

static

Definition at line 57 of file autopilot_firmware.c.

References autopilot, dev, horizontal_mode, lateral_mode, mcu1_status, pprz_autopilot::mode, rc_settings_mode, and v_ctl_mode.

Referenced by autopilot_firmware_init(), and autopilot_send_mode().

Here is the caller graph for this function:

Variable Documentation

ap_electrical

struct Electrical ap_electrical

Definition at line 36 of file autopilot_firmware.c.

Referenced by attitude_loop(), autopilot_firmware_init(), autopilot_generated_on_rc_frame(), autopilot_static_on_rc_frame(), monitor_task(), send_energy(), and v_ctl_guidance_loop().

lateral_mode

uint8_t lateral_mode

Definition at line 38 of file autopilot_firmware.c.

Referenced by autopilot_static_init(), collective_tracking_control(), fly_to_xy(), gvf_control_2D(), gvf_parametric_low_level_control_2D(), gvf_parametric_low_level_control_3D(), h_ctl_guidance_loop(), nav_without_gps(), navigation_task(), send_mode(), and v_ctl_landing_loop().

mcu1_status

uint8_t mcu1_status

Second MCU status (FBW part)

Definition at line 39 of file autopilot_firmware.c.

Referenced by mcu1_status_update(), and send_mode().

rc_settings_mode

uint8_t rc_settings_mode = 0

Definition at line 54 of file autopilot_firmware.c.

Referenced by send_mode().
